Whirlpool ET18NKXDG01 Parts Manual

Whirlpool refrigerator parts manual
Hide thumbs

Advertisement

Quick Links

CABINET PARTS
REFRIGERATOR
For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01
(White)
(Almond)
(Gold)
1
1−95 Litho In U.S.A. (sak)
Part No. 4379678

Advertisement

loading

  Also See for Whirlpool ET18NKXDG01

  Related Manuals for Whirlpool ET18NKXDG01

  Summary of Contents for Whirlpool ET18NKXDG01

  • Page 1 CABINET PARTS REFRIGERATOR For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01 (White) (Almond) (Gold) 1−95 Litho In U.S.A. (sak) Part No. 4379678...
  • Page 2: Cabinet Parts

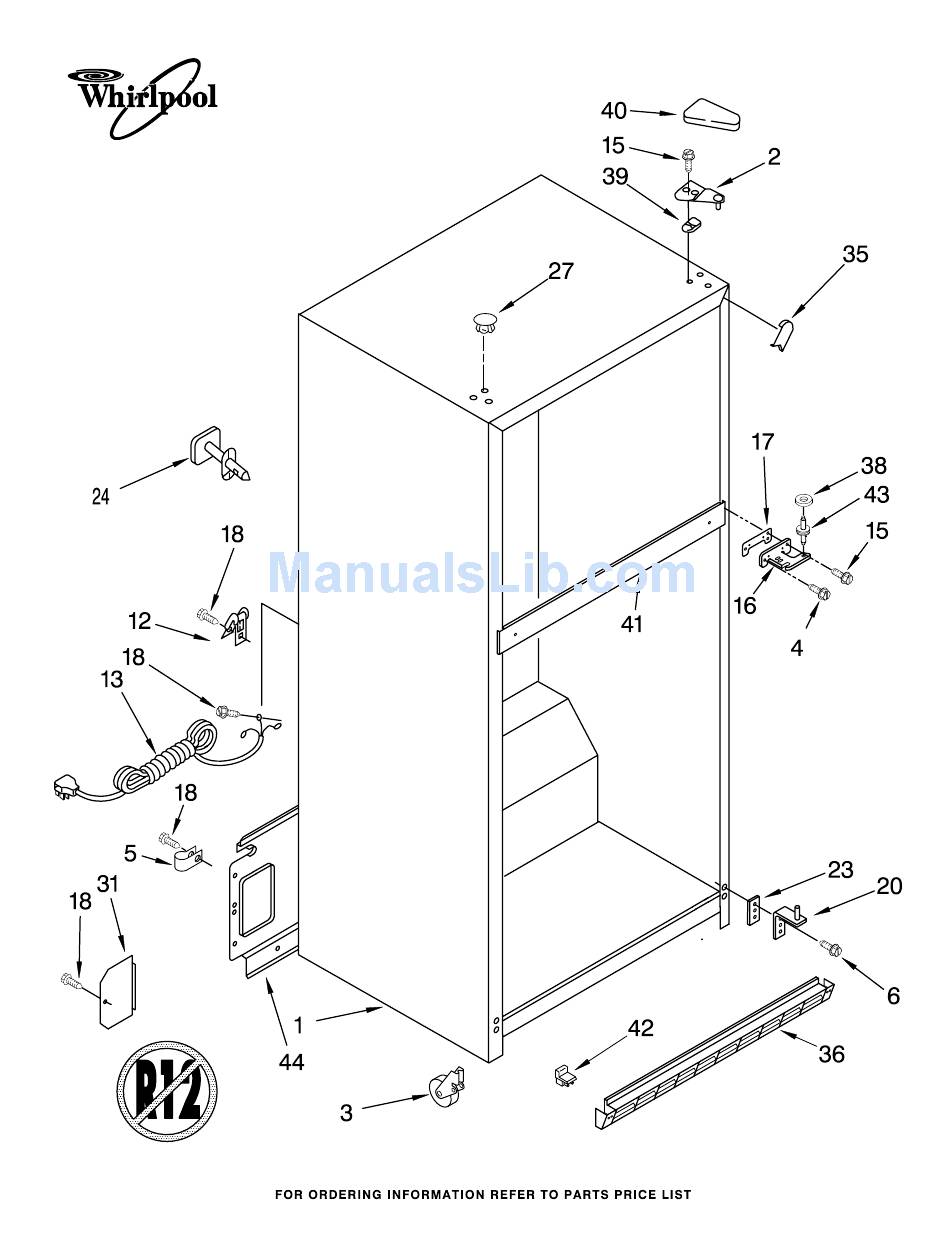

    CABINET PARTS For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01 (White) (Almond) Illus. Part DESCRIPTION Cabinet (Not A Serviceable Part) 2 2157591 Hinge (Top) 3 2166108 Roller−Front (2) 489426 Screw 489385 Clamp, Tube (Water Supply Line) 489457 Screw 549193 Clamp−Cord 937360 Cord−Service 489423...
  • Page 3: Door Parts

    DOOR PARTS For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01 (White) (Almond) (Gold) 4379678...
  • Page 4 For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01 Illus. Part DESCRIPTION Refrigerator Door Panel 2171269 White 2171270 Almond 2175871 Gold End Cap 9791773 White 9791774 Almond 1101632 Chrome Hole Plug (2) 534927 White 989197 Almond 989879 Gold End Cap, Handle (2) 9791771 White...
  • Page 5 LINER PARTS For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01 (White) (Almond) (Gold) 4379678...
  • Page 6 LINER PARTS For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01 (White) (Almond) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 531933 Grommet (2) 3 2166181 Gasket, Evaporator Cover (Side) 4 2176340 Timer, Defrost 549512 Thermostat Tube Barrier 941839 Hole Plug 7 2172542 Wire Assy.
  • Page 7: Unit Parts

    UNIT PARTS For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01 (White) (Almond) (Gold) 4379678...
  • Page 8 For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01 Illus. Part DESCRIPTION 1 2174620 Plate, Unit Mounting 489242 Screw 3 2172670 Condenser 4 2176300 Heater, Defrost 5 2176337 Evaporator Assy. 489414 Screw 7 2172619 Drain Pan 8 2172694 Defrost Bi−Metal 2176301 Bracket, Heater 10 2163780...
  • Page 9: Shelf Parts

    For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01 4379678 SHELF PARTS (White) (Almond) (Gold) Illus. Part DESCRIPTION 841180 Ice Tray (2) 2 2166147 Shelf (2) 3 2174664 Cover, Crisper 4 2170954 Crisper Pan 2172541 Support, Crisper Cover 7 2163835 Track, Crisper 8 2176275...
  • Page 10 LITERATURE AND OPTIONAL PARTS For Models: ET18NKXDW01, ET18NKXDN01, ET18NKXDG01 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) Miscellaneous 978941 Insulation, Fiberglass (63−1/2" x 35−1/2" x 2−5/8") 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4" x 108")
