- Page 1 CABINET PARTS REFRIGERATOR For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02 (White) (Black) (Satina) (Stainless Steel) 7−07 Litho In U.S.A. (rrm) Part No. W10154410 Rev.A...
-
Page 2: Cabinet Parts

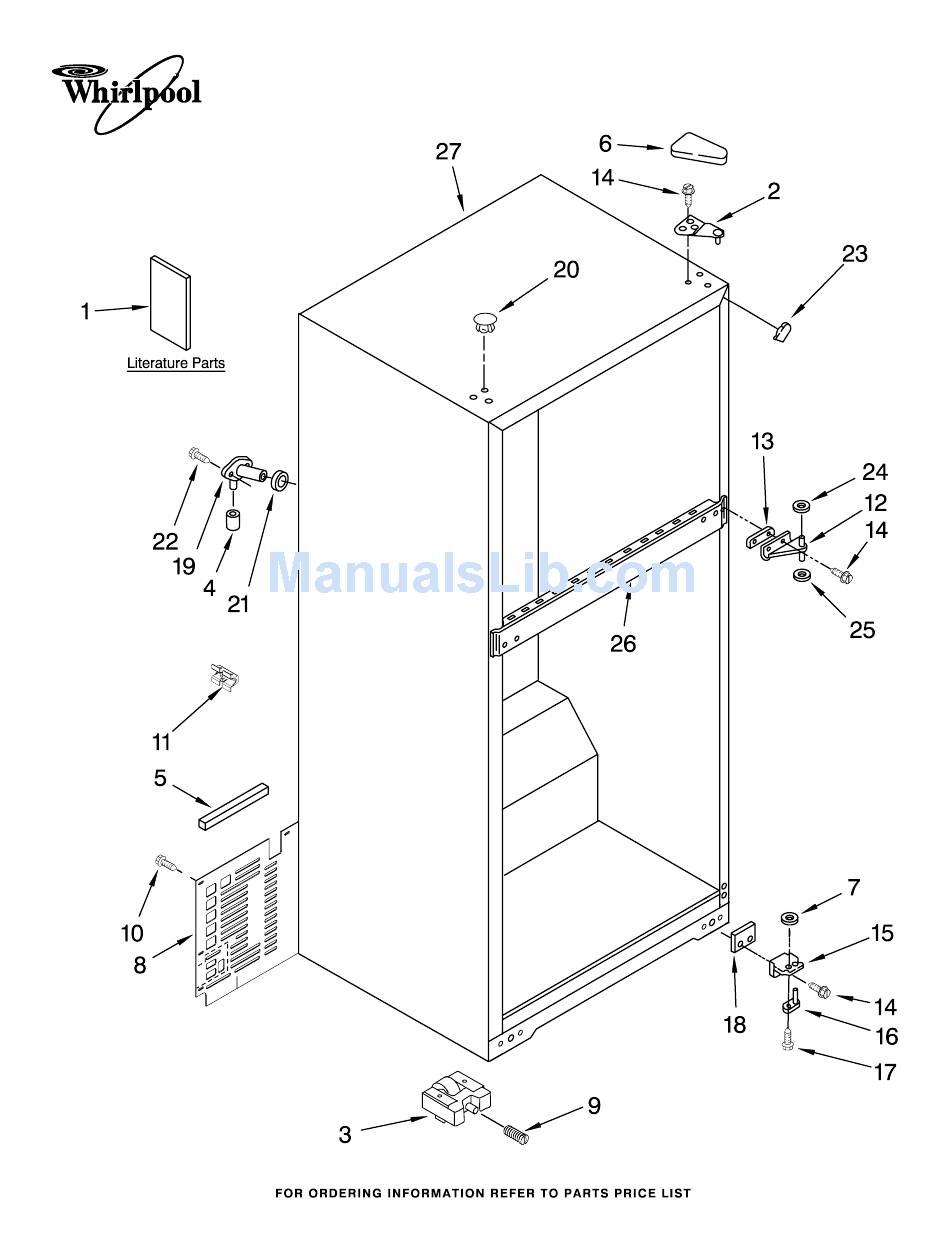

CABINET PARTS For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02 (White) (Black) Illus. Part 2265591 Service & 2316016 Use & Care Guide W10130119 Energy Guide Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 677969 Do−It−Yourself 2261963 Hinge Butt, Top 2324094 Roller, Front 487996 Cap, Bushing... -
Page 3: Door Parts
DOOR PARTS For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02 (White) (Black) (Satina) (Stainless Steel) W10154410... - Page 4 DOOR PARTS For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02 (White) (Black) Illus. Part 2265677W White 2265677B Black 2265677L Satina 2265677S Stainless Steel 2258681W White 2258681B Black 2266727 Trim, Door Shelf 2265645W White 2222045 Black 2265647W White 2222048 Black 2266738 Trim, Door Shelf...
- Page 5 LINER PARTS For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02 (White) (Black) (Satina) (Stainless Steel) W10154410...
- Page 6 For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 939962 Rivet 2252837 Cover, Air Diffuser 2303825 Adaptive Defrost Control 489174 Screw 2263075 Gasket, Air Duct 2262434 Wire Assembly Control Box 2162085 Socket, Light 2197404 Fan Support...
-
Page 7: Unit Parts
UNIT PARTS For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02 (White) (Black) (Satina) (Stainless Steel) W10154410... - Page 8 For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02 Illus. Part DESCRIPTION 1 W10127456 Support Plate, Compressor 489442 Screw 2264004 Condenser 2176942 Heater, Defrost 2264835 Clip, Condensor 8533859 Screw 2319224 Heat Shield 2264516 Snap Rivet 2161302 Sleeve 2263929 Air Baffle 2188875 Motor, Condensor...
-
Page 9: Shelf Parts
For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02 W10154410 SHELF PARTS (White) (Black) (Satina) (Stainless Steel) Illus. Part DESCRIPTION 2201793 Ice Tray (2) 2263641 Shelf 2262441 Glass Cover 2263086 Crisper Pan (Includes Items 15, 16 & 17) 2262442 Glass, Shelf 2222031 Cover, Crisper 2252848 Shelf−Frame, Wire... - Page 10 OPTIONAL PARTS (NOT INCLUDED) For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 978941 Insulation, Fiberglass (63−1/2" x 35−1/2" x 2−5/8") 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4" x 108") 876305 Kit, Insulation (14 Pcs.
