- Page 1 CABINET PARTS REFRIGERATOR For Models: ER8AHKXRQ00, ER8AHKXRB00, ER8AHKXRL00 (White) (Black) (Satina) Part No. 8199317 Rev. A 6−05 Litho In U.S.A. (djc)
-
Page 2: Cabinet Parts

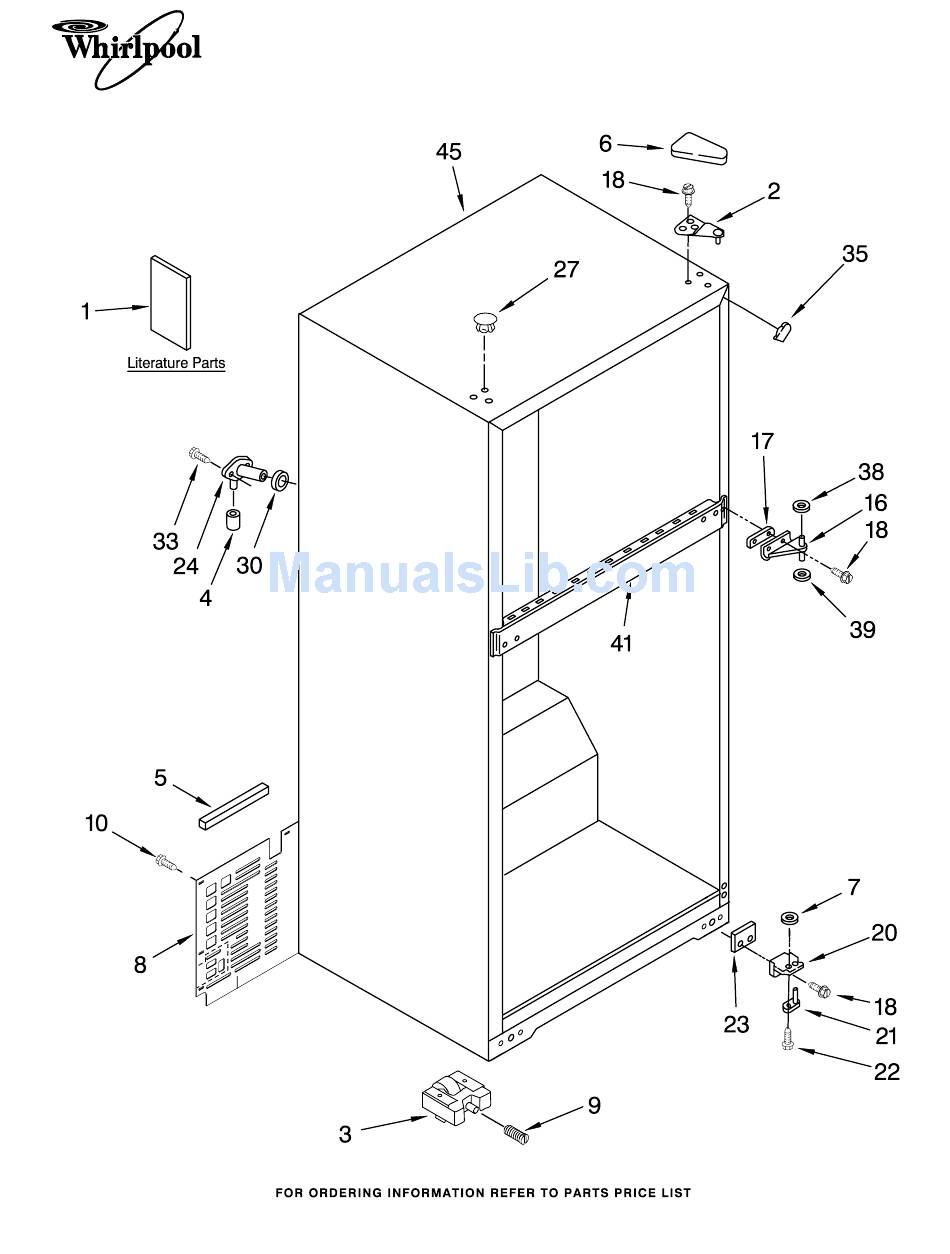

CABINET PARTS For Models: ER8AHKXRQ00, ER8AHKXRB00, ER8AHKXRL00 (White) (Black) Illus. Part DESCRIPTION Literature Parts 2265591 Service & Wiring Sheet 2265301 Use & Care Guide 2266044 Energy Guide Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 677969 Do−It−Yourself Manual, Ref./ Fzr. 2261963 Hinge Butt, Top... -
Page 3: Door Parts
DOOR PARTS For Models: ER8AHKXRQ00, ER8AHKXRB00, ER8AHKXRL00 (White) (Black) (Satina) 8199317... - Page 4 For Models: ER8AHKXRQ00, ER8AHKXRB00, ER8AHKXRL00 Illus. Part DESCRIPTION Refrigerator Door (Includes Illus. 5,6 & 9) 2265677W White 2265677B Black 2265677L Satina Handle, Freezer 2258858W White 2258858B Black Shim, Door Stop 2258681W White 2258681B Black 2263260 Trim, Door Shelf DOOR PARTS...
- Page 5 LINER PARTS For Models: ER8AHKXRQ00, ER8AHKXRB00, ER8AHKXRL00 (White) (Black) (Satina) 8199317...
- Page 6 For Models: ER8AHKXRQ00, ER8AHKXRB00, ER8AHKXRL00 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 939962 Rivet 2252837 Cover, Air Diffuser 2303825 Adaptive Defrost Control 489174 Screw 2263075 Gasket, Air Duct 2262434 Wire Assembly Control Box 2162085 Socket, Light 2197404 Fan Support...
-
Page 7: Unit Parts
UNIT PARTS For Models: ER8AHKXRQ00, ER8AHKXRB00, ER8AHKXRL00 (White) (Black) (Satina) 8199317... - Page 8 For Models: ER8AHKXRQ00, ER8AHKXRB00, ER8AHKXRL00 Illus. Part DESCRIPTION 2262904 Support Plate, Compressor 489442 Screw 2264004 Condenser 2176942 Heater, Defrost 2264835 Clip, Condensor 8533859 Screw 2264762 Heat Shield 2264516 Snap Rivet 2161302 Sleeve 2263929 Air Baffle 2188875 Motor, Condensor 4387731 Cover...
-
Page 9: Shelf Parts
For Models: ER8AHKXRQ00, ER8AHKXRB00, ER8AHKXRL00 8199317 SHELF PARTS (White) (Black) (Satina) Illus. Part DESCRIPTION 2202063 Ice Tray (2) 2263641 Shelf 2262441 Glass Cover 2263086 Crisper Pan (Includes Items 15, 16 & 17) 2262442 Glass, Shelf 2222031 Cover, Crisper 2252848 Shelf−Frame, Wire... -
Page 10: Optional Parts
For Models: ER8AHKXRQ00, ER8AHKXRB00, ER8AHKXRL00 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 978941 Insulation, Fiberglass (63−1/2" x 35−1/2" x 2−5/8") 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4" x 108") 876305 Kit, Insulation (14 Pcs.
