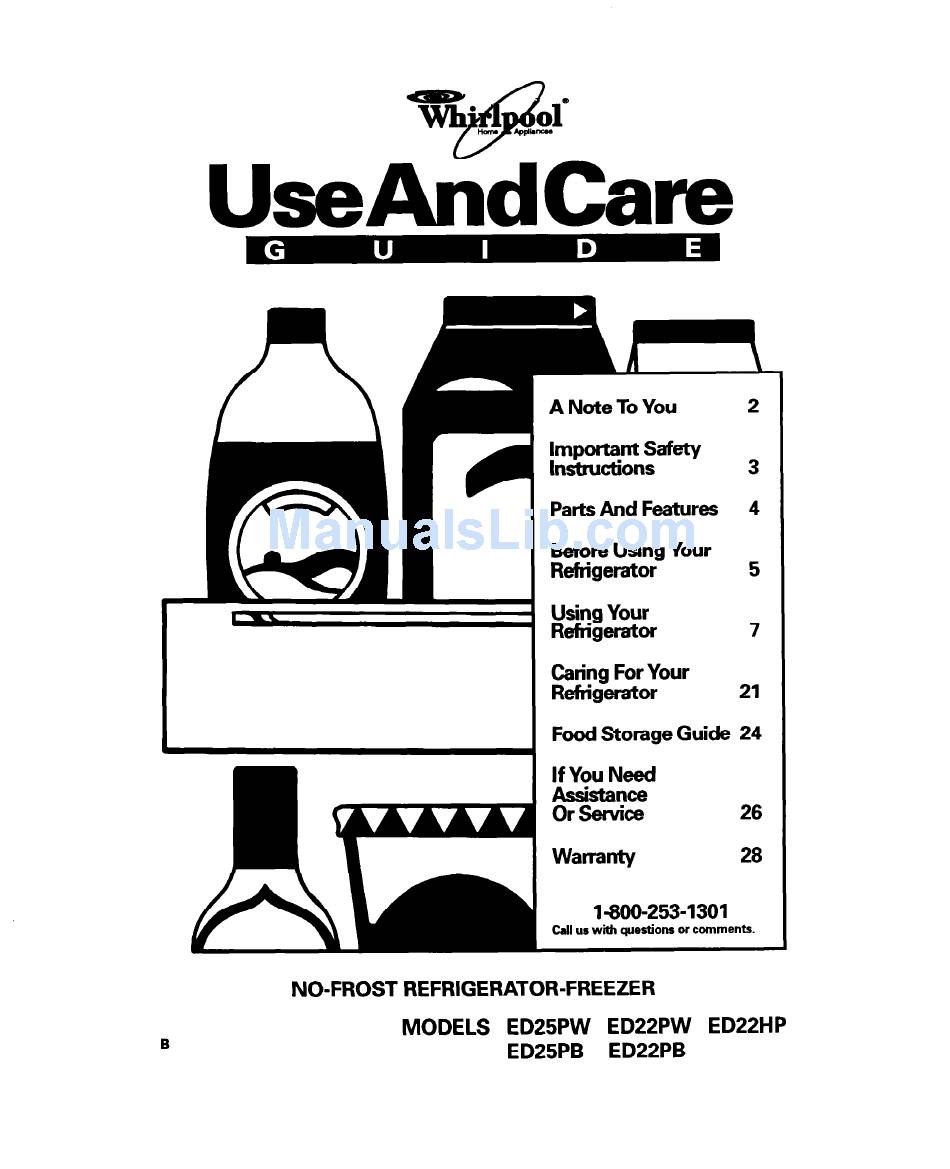

  • Page 1 UseAhdCare NO-FROST REFRIGERATOR-FREEZER MODELS A Note To You kizE2Ed~ Parts And Features Before Using Your Refrigerator Using Your Refrigerator pa$royr Food Storage Guide 24 If You Need Warranty 1-800-253-1301 Cell us with questions or comments. ED25PW ED22PW ED22HP ED25PB ED22PB...
  • Page 2 A Note To You Thank you for buying a Whirlpool’ You have purchased a quality, worM&~ss went into its manufacturing. To ensure that you enjoy many years of trouble-free we developed this Use and Care Guide. It is full of valuable information on how to operate and maintain your appliance properly and safely.
  • Page 3 Important Safety To reduce the risk of fire, electrical shock, or injury when using your refrigerator, follow these basic precautions: *Read all instructions before using the refrigerator. @Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still danger- ous .
  • Page 4 Parts And Features This section contains captioned illustrations. and features are located what they look like. The model you have purchased may have all or some of the parts and features shown and they may not match the illustration This manual covers several models. Automatic maker - Ice bin \...
  • Page 5 Before Using Your Refrigerator In This Section Cleaning it ......... . . 5 Plugging it in .
  • Page 6 Installing it properly 1. Allow % inch (1.25 cm) space on each side and at the top of the refrigerator for ease of installation. 2. If the refrigerator is to be against a wall, you might want to leave extra space on the hinge side closest to the wall so the door can be opened wider.
  • Page 7: Table Of Contents

    Using Your Refrigerator In This Section Setting the controls ... 7 Changing the control settings ... 8 Removing the snapoff door trim..Adjusting the door bins ..9 Adjusting the door bin glides ..9 Removing the tall-bottle retainer ..lO Adjusting the refrigerator shelves ..lO Using the egg bin ...
  • Page 8: Changing The Control Settings

    3. Give the refrigerator time to cool down completely before adding food. This may take several hours. The settings indicated above should be correct for normal, household refrigerator usage. The controls are set correctly when milk or juice is as cold you like and when ice cream is firm.
  • Page 9: Removing The Snapoff Door Trim

    Removing the snap-off (on some models) To remove the trim piece: Remove all items from the shelf. 2. Pull out on the inside tab at each end of the trim piece. 3. Pull trim piece straight out. To replace the trim piece: Line up ends of the trim piece with the button on the door liner wall.
  • Page 10: Removing The Tall-Bottle Retainer

    Removing the tall-bottle The tall-bottle retainer fits onto any door bin in your refrigerator. The retainer helps to hold tall-bottles in place when opening and closing the refrigerator door. To remove tall-bottle retainer: Grasp center of retainer. 2. Pull up and off of bin. To replace tall-bottle retainer: Position retainer above desired door bin.
  • Page 11: Removing The Crisper And Crisper Cover

    Removing the crisper To remove the crisper: Slide the crisper straight out to the stop. 2. Lift the front slightly. Slide out the rest of the way. Replace in reverse order. To remove the cover: Hold cover firmly with both hands and lift front of cover off supports.
  • Page 12: Adjusting The Crisper Humidity Control

    Adjusting the crisper You can control the amount of humidity in the moisture-sealed crisper. Adjust the control to any setting between LOW and HIGH. LOW (open) lets moist air out of the crisper for best storage of fruits and vegetables with skins.
  • Page 13: Removing The Freezer Shelves

    Removing the freezer To remove the shelf: Lii right side of shelf off supports. 2. Slide shelf out of shelf support holes. 3. Replace in reverse order. Removing the freezer To remove the basket: Slide basket out to the stop. 2.
  • Page 14: Using The Ice And Water Dispensers

    Using the ice and water Personal injury Hazard Tumbling ice and pressure can break a fragile glass. Use a sturdy glass when dispensing ice or water. Failure to do so could result in personal injury or breakage. The ice dispenser Ice dispenses from the ice maker storage bin in the freezer.
  • Page 15: Using The Automatic Ice Maker

    To dispense water: Press a sturdy glass against the water dispenser bar. 2. Remove the glass to stop dispensing. NOTE: Dispense enough water every week to maintain a fresh supply. Using the automatic Here are a few things you will want to know about your automatic ice maker: The ON/OFF lever is a wire signal arm.
  • Page 16: Removing The Ice Maker Storage Bin

    Removing the ice maker Remove, empty and clean the storage bin if: the ice dispenser has not, or will not, be used for a week or more. a power failure causes ice in the bin to melt and freeze together. the ice dispenser is not used regularly.
  • Page 17: Solving Common Ice Maker

    Solving common ice maker/dispenser problems CAUSE PROBLEM ice dispenser Freezer door open won’t work Ice bin not properly installed Wrong ice in bin Dispenser not used for extended periids, causing ice cubes to melt together ice dispenser Ice dispenser bar held stops working in too long Off-taste or...
  • Page 18: Removing The Base Grille

    Removing the base grille To remove the grille: Open both doors. 2. Pull base grille forward to release the support tabs from the metal clips. not remove Tech Sheet 3. Do fastened behind the grille. To replace the grille: Line up grille support tabs with metal clips.
  • Page 19 2. Reach through dispenser area to remove bulb. 3. Replace with a heavy-duty 1 O-watt bulb, which can be purchased from your Whirlpool dealer. 4. Reconnect refrigerator to power supply. NOTE: Not all commercial appliance bulbs will fit your refrigerator. Be sure to replace a bulb with one of the same size and shape.
  • Page 20: Understanding The Sounds You May Hear

    Understanding the sounds Your new refrigerator may make sounds that your old one didn’t. Because the sounds are new to you, you might be concerned about them. Don’t be. Most of the new sounds are normal. Hard surfaces like the floor, walls and cabinets can make the sounds seem louder.
  • Page 21 Caring For Your Refrigerator In This Section Cleaning your refrigerator ....21 Vacation and moving care ....22 Your refrigerator is built to give you many years of dependable service.
  • Page 22 WHAT TO USE PART Door liners and Sponge, soft cloth gaskets or paper towel with miM detergent and warm water Soft, clean sponge Piasttic parts or soft, clean cloth (covers and with mild detergent panels) and warm water Defrost pan Sponge or cloth with mild detergent and warm water...
  • Page 23 Long vacations If you will be gone a month or more: Remove all food from the refrigerator. 2. Turn off the water supply to the ice maker at least one day ahead of time. 3. When the last load of ice drops, turn off the ice maker.
  • Page 24 Food Storage There is a correct way to package and store refrigerated or frozen food. To keep food fresher, longer, take the time to study these recommended Storing fresh food Wrap or store food placed in the refrigerator in airtight and moisture-proof material.
  • Page 25 Storing frozen food The freezer section is designed for storage of commercially frozen food and for freezing food at home. NOTE: For further information about prepar- ing food for freezing or food storage times, contact your local Cooperative Extension Service or check a freezer guide or reliable cookbook.
  • Page 26 If You Need Assistance Service Performance problems often result from little things you can fix without tools. Please read the chart below before calling for service on your apdiance. 1. Before calling for assistance Listed in this chart are the most common problems consumers run into with their appliances. Please read through this and see if it can solve vour problem.
  • Page 27 4. If you need ment parts . . . FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Whirlpoole appliance. FSP replacement...
  • Page 28 From Date of Purchase system. These parts are: 1. Compressor 2. Evaporator 3. Condenser Service must be provided by an authorized Whirlpool service company. WHIRLPOOL WILL NOT PAY FOR Service calls to: 1. Correct the installation of your refrigerator. 2. Instruct you how to use your refrigerator.
