Whirlpool WDE101LV Dimension Manual

®
PRODUCT MODEL NUMBERS
WDE101LV
WDE150LV
WDE350LV
Electrical: Range must be connnected to the
proper electrical voltage and frequency as
specified on the model/serial number rating plate.
The model/serial number rating plate is located
below the electronic control on the oven frame.
See the product dimensions illustration.
Models rated from 12.7 kW at 240 volts (9.5 at
208 volts) require a separate 50-amp circuit.
A circuit breaker is recommended.
Flexible conduit from appliance should be
connected directly to the junction box.

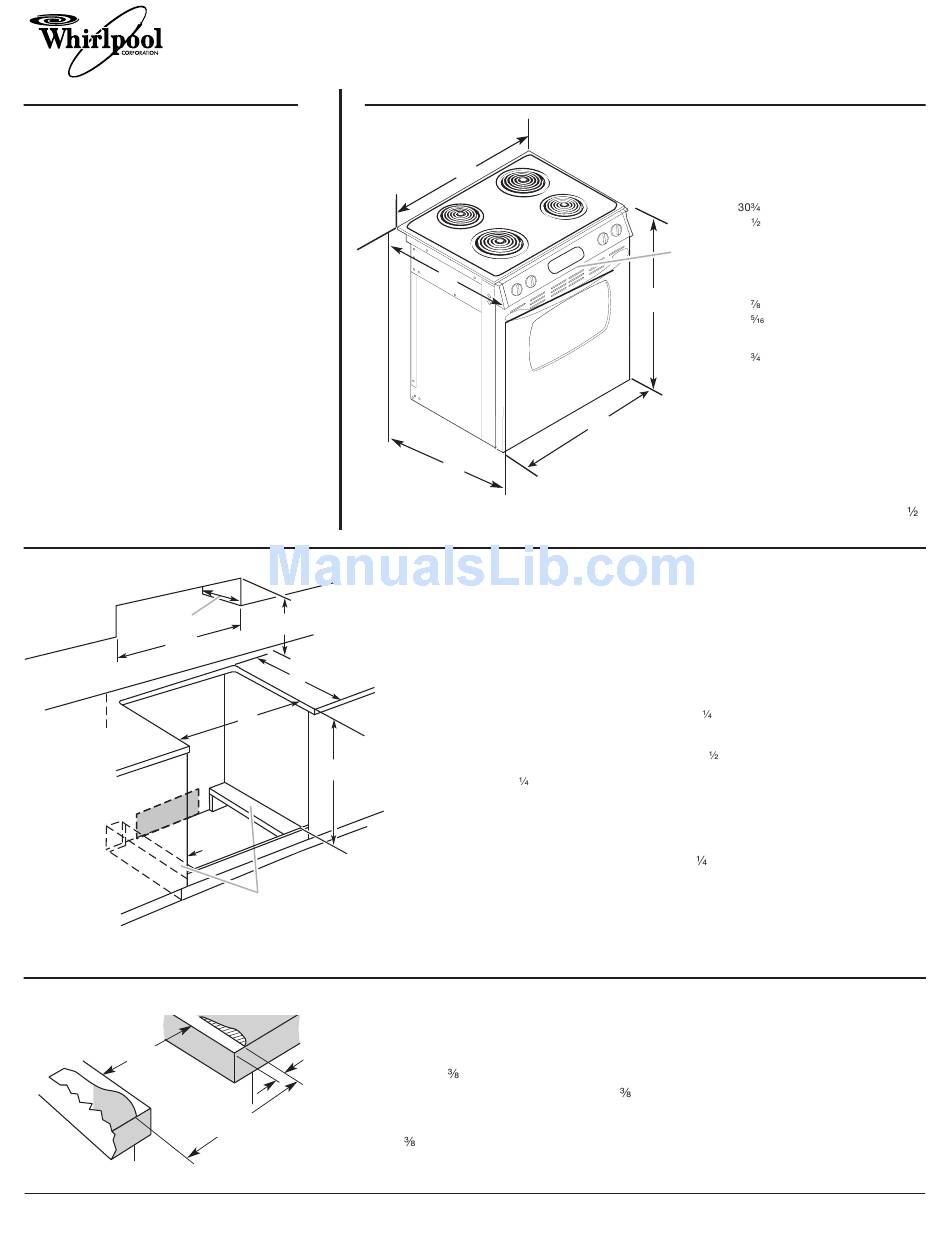

CABINET OPENING DIMENSIONS
A
B
F
COUNTERTOP PREPARATION
30"
(76.2 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Drop-in Electric Range
PRODUCT DIMENSIONS
C
D
E
H
G
I
The cooktop sides of the drop-in range fit over the cutout edge of
your countertop.
If you have a square finish (flat) countertop and the opening width
is 30" (76.2 cm), no countertop preparation is required.
³⁄₈"
Formed front-edged countertops must have molded edge
(1.0 cm)
shaved flat
Tile countertops may need trim cut back
front corner and/or rounded edge flattened.
30 ¾"
(78.1 cm)
If countertop opening width is greater than 30" (76.2 cm), adjust
the
Countertop must be level. Check levelness by placing level on
countertop, first side to side, then front to back.
A
F
D
*Range can be raised approximately 1" (2.5 cm) by adjusting
E**
the leveling legs.
**When installed in a 24" (61.0 cm) base cabinet with
25" (63.5 cm) countertop; front of oven door protrudes 2 "
(6.4 cm) beyond 24" (61.0 cm) base cabinet.
Cabinet opening dimensions shown are for 25" (64.0 cm)
countertop depth, 24" (61 cm) base cabinet depth and
36" (91.4 cm) countertop height.
IMPORTANT: If installing a range hood or microwave hood
combination above the range, follow the range hood or
microwave hood combination installation instructions for
dimensional clearances above the cooktop surface.
A. 13" (33 cm) upper cabinet
depth
B. 30" (76.2 cm) min. opening
width
C. For minimum clearance to the
top of the cooktop,
see NOTE*.
D. 23 " (58.1 cm) opening
depth
E. 30" (76.2 cm) min. opening
width
NOTE: 24" (61.0 cm) minimum when bottom of wood or metal
cabinet is protected by not less than
millboard covered with not less than No. 28 MSG sheet steel,
0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum or
0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top of the cooking
platform and the bottom of an unprotected wood or metal
cabinet.
" (1.0 cm) from each front corner of opening.
" (1.0 cm) dimension.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
A. " (78 cm)
B. 27 " (69.9 cm) height to underside
of cooktop edge with leveling legs
screwed all the way in*
C
C. Model/serial number plate
(located below the electronic
control on oven frame)
B*
D. 29 " (75.9 cm)
E. 28 " (71.9 cm) from
handle to standoff at back
of range**
F. 23 " (60.3 cm)
countertop notch to rear
of cooktop
F. Junction box - 5.5" (14 cm)
min. from either cabinet,
8 " (21 cm) max. from floor
G. Cabinet door or hinge should
not extend into cutout.
H. 27 " (69.9 cm) top of
countertop to support slats
I. 6" (15.2 cm) wide support slat
on each side of cutout
" (0.64 cm) flame retardant
" (1.0 cm) from each
Ref. 8101P747-60
07-30-08
