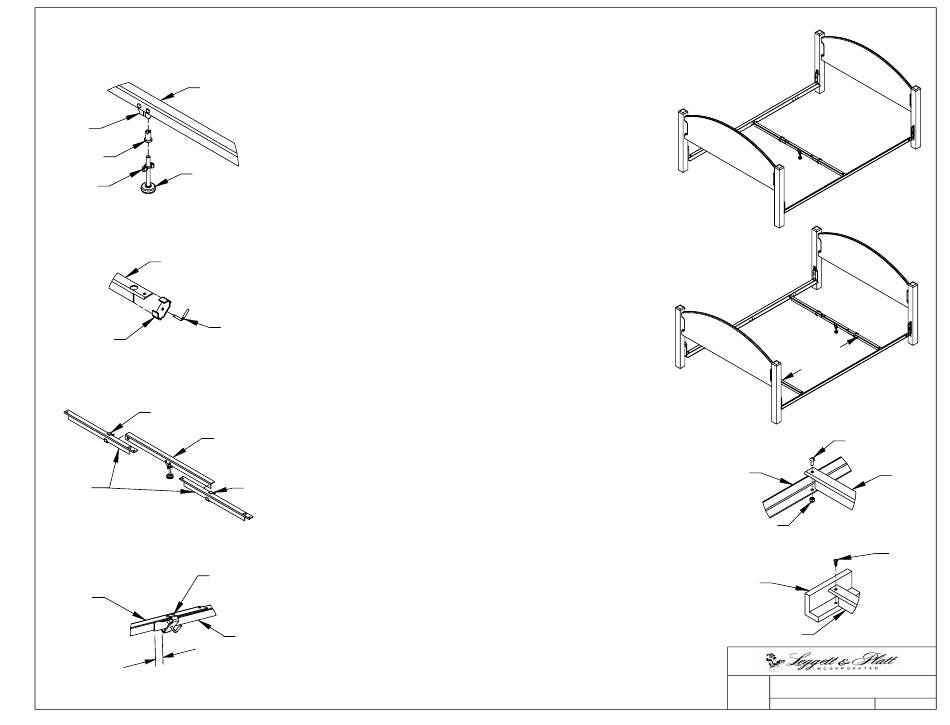

Q31LP ASSEMBLY INSTRUCTIONS

Step 1: Tap PLASTIC INSERT into LEG. With flat
side up, screw WING NUT onto GLIDE. Thread
GLIDE into PLASTIC INSERT. See Figure 1.

Step 2: Loosely attach L-SCREWS to CLAMPS

and slide CLAMPS onto CROSS ARMS as shown
in Figure 2.
Step 3:
Place CENTER ARM under CROSS ARMS and
slide CLAMPS onto overlapped CROSS/CENTER
ARMS as shown in Figure 3.
Step 4: Adjust to width needed and position each
CLAMP one inch from the edge of the lower
CROSS ARM as shown in Figure 4. Tighten L-
SCREWS.
If using one cross support:
Place assembled cross support in the center of the
bed as shown in Figure 5.
If using two cross supports:
Place assembled cross supports between side rails,
approximately 40 to 50 inches apart as shown in
Figure 6.
Step 5: Attach CROSS ARMS to SIDE RAILS. For
metal side rails use NUTS and BOLTS as shown in
Figure 7. For wood side rails use WOOD SCREWS
as shown in Figure 8.
CLAMP
Step 6: Adjust GLIDES so that they touch the floor.
Tighten WING NUT against PLASTIC INSERT.
Note: There must be at least one inch of the
glide stem in the plastic insert.

Step 7: Tighten all nuts, bolts, and L-screws.

CENTER
ARM
Figure 5
Figure 6
APPROX.
40" - 50"
Figure7
BOLT
METAL
SIDE RAIL
NUT
Figure 8
WOOD
SIDE RAIL
CROSS
ARM
DATE
99300978
DWG. NO.
8-22-07
DO NOT SCALE DRAWING
CROSS
ARM
WOOD
SCREW
SHEET 1 OF 1
