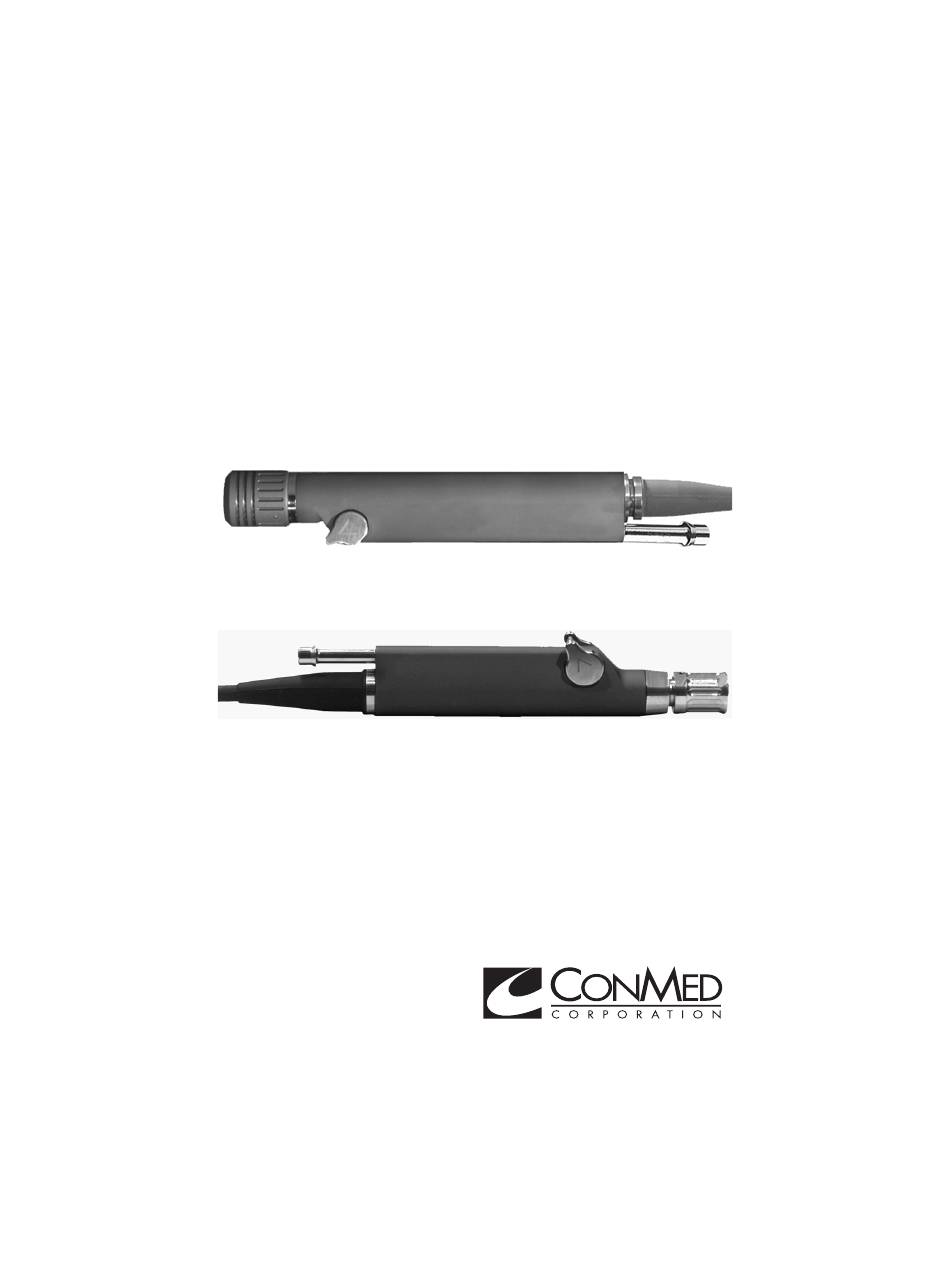

  • Page 1 ConMed Linvatec Small Shaver Handpieces MC9840 E9005...
  • Page 2 This manual contains information deemed proprietary to Linvatec Corporation. The information contained herein, including all of the designs and related materials, is the sole property of ConMed Linvatec and/or its licensors. ConMed Linvatec and/or its licensors reserve all patent, copyright and other proprietary rights to this document, including all design, manufacturing methodology and reproduction.

  • Page 3: Table Of Contents

    Table of Contents Page INTRODUCTION Operating Principle ....... 1 Indications for Use....... . 1 Intended Use .
  • Page 4 Table of Contents Page MAINTENANCE Cleaning Information......14 3.1.1 Warnings, Precautions and Notes ... .14 3.1.2 Manual Cleaning Instructions .

  • Page 5: Introduction

    Consult the associated ConMed Linvatec surgical console instruction manual prior to operating this equipment. Indications for Use The MC9840 Handpiece, and its accessories, performs the cutting of soft tissue and bone. The fields of application include: Orthopedic, Arthroscopic, Otolaryngological, Hand, and Foot surgical procedures.

  • Page 6: Warnings And Precautions

    Warnings and Precautions Do not bypass this section. It contains warnings and precautions that must be thoroughly understood before operating any of the equipment. Lack of understanding or adherence to these warnings and precautions may result in injury or even death to the patient. The words WARNING, PRECAUTION, and NOTE carry special meanings and they must be read carefully.
  • Page 7 6. Do not excessively bend or kink the handpiece cord. Always inspect cords for signs of excessive wear or damage, or bent, broken or missing pins within the connector(s). If any wear or damage is found, discontinue use and replace handpiece immediately. Using a damaged power cord could possibly cause injury.

  • Page 8: Precautions

    3. Handle all equipment carefully. If any equipment is dropped or damaged in any way, return it immediately for service. 4. Use only associated ConMed Linvatec approved equipment and accessories. Using unapproved accessories may result in improper operation, and may result in non-compliance to medical standards.
  • Page 9 (wear), motor seizure, and overheating. 17. If shaver blade clogs, use ConMed Linvatec Declogger (E9315) to declog shaver blade. Shaver blades or burs may also be declogged by removing the inner assembly of the shaver blade from the outer assembly and clearing any tissue from the window or aspiration hole.

  • Page 10: Environmental Directives

    For more information about where you can drop off your medical equipment at the end of its useful life for recycling, please contact ConMed Linvatec. Product Photographs and Drawings The pictures in this manual are for reference only. Items shown may not represent the actual product.

  • Page 11: Warnings And Information Symbols

    No User Service Prescription Only: Federal Recommended. Refer Law restricts this device to servicing to qualified sale by or on the order of a ConMed Linvatec service physician personnel Non Sterile Sterile Sterile - Sterilized Using Sterile - Sterilized Using EO...
  • Page 12 The disposal of batteries as municipal waste is prohibited. Dispose or recycle in accordance with your local, state and governmental regulations. In the U.S. call 1-800-925-4255, or outside the U.S. contact your local ConMed Linvatec representative for additional information on battery disposal or recycling.

  • Page 13: System Installation And Operation

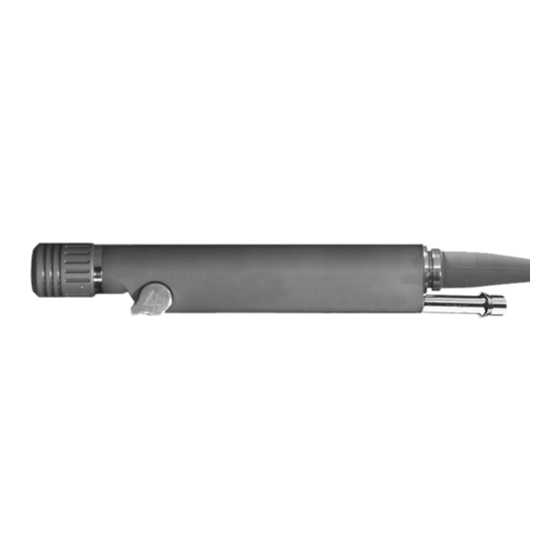

    Product Description 2.1.1 Handpiece Descriptions The MicroChoice Small Shaver Handpiece (MC9840) and E9005 High Speed Shaver Handpiece are designed to operate Micro Hub Shaver burs and shaver blades for resection of bone and soft tissue. For operating speeds, please refer to section “4.0 TECHNICAL SPECIFICATIONS”.

  • Page 14: Tubing Sets Descriptions

    2.1.2 Tubing Sets Descriptions E9416/E9417 Tubing Set The E9416 (4.2 mm) and E9417 (3.7 mm) Tubing Sets are used to provide irrigation to irrigated shaver blades. 1. Spike Line — Connects to the fluid supply for fluid distribution to the surgical site.

  • Page 15: Assembly/Installation Instructions

    Assembly/Installation Instructions 2.2.1 Shaver Blade Installation and Removal To install and remove a shaver blade into the MC9840 handpiece: 1. While pulling the quick-connect locking collet back towards the body of the handpiece, completely insert the shaver blade hub into the collet. Ensure alignment key is in line with the slot on the locking collet.

  • Page 16: Irrigation Tubing Set Installation

    3. Rotate the shaver blade or bur until the cutting window is in the desired position. 4. Secure the shaver blade or bur by turning the locking collet clockwise. 5. Pull on the shaver blade or bur to ensure it is locked in place. 6.

  • Page 17: Operating Instructions

    4. Snap the handpiece cord clips onto the handpiece cable to secure the tubing. 5. Install cassette onto the pump rotor on the drive console. Operating Instructions These shaver handpieces can only be operated using a footswitch. For the operating instructions for these handpieces, please refer to the surgical console instruction manual.

  • Page 18: Maintenance

    3.0 MAINTENANCE 3.1 Cleaning Information 3.1.1 Warnings, Precautions and Notes 1. Follow universal precautions for protective apparel when handling and cleaning contaminated instruments. 2. Clean instruments within 30 minutes after use to minimize the potential of blood and debris drying. 3.

  • Page 19: Sterilization Information

    4. To clean the cannulated section of the handpiece and attachment, feed the wire end of a cleaning brush through the cannulation of the handpiece or attachment. Pull the brush completely through and repeat until all debris is removed. 5. Manipulate all moving parts of the handpiece to ensure all debris is removed. If not, clean again until all debris is removed.

  • Page 20: Sterilization Instructions

    7. When sterilizing equipment and attachments in a system sterilization tray, use the recommended sterilization parameters in its instruction manual. 8. Do not “Peel Pack” handpieces for sterilization. Sterilization in a sealed pouch traps moisture which can cause damage. 9. The suction control valve, if one exists, must be in the fully open position during sterilization.

  • Page 21: Troubleshooting

    3.3 Troubleshooting Table 2: Troubleshooting Guide Symptom Possible Cause Corrective Action • Securely connect Handpiece does not • Handpiece cord not handpiece cord to operate. connected securely. controller. • Handpiece faulty. • Return for service. Error Messages • Handpiece and/or •...

  • Page 22: Maintenance Schedule

    Any services and/or repairs done by any unauthorized repair facility may result in reduced performance of the equipment or equipment failure. (Refer to section “5.0 CUSTOMER SERVICE”). The MC9840 and E9005 Shaver Handpieces shall be returned every 6 months for servicing.

  • Page 23: Technical Specifications

    If interference occurs, separate the instruments. For more information, contact customer service. Product Technical Specifications 4.1.1 Handpieces MC9840 Classification: Class I (intended for connection to Class I surgical console). Type rating of applied part is dependent on surgical console.
  • Page 24 E9005 Classification: Class I (intended for connection to Class I surgical console). Type rating of applied part is dependent on surgical console. Protection Ingress of IPX0 (ordinary) Fluids: Mode of Operation: Intermittent Loading Operating Speed 500 - 10,000 rpm, Forward/Reverse 500 - 5,000 cpm, Single and Multi-turn Oscillate (Nominal): Torque (Nominal):...

  • Page 25: Product Environmental Requirements

    Non-Condensing Atmospheric Pressure: 4.2.2 Electromagnetic Requirements Refer to appropriate drive console instruction manual for electromagnetic requirements. Accessories Only use ConMed Linvatec Micro hub shaver blades and burs. Description Irrigation Tubing: E9310 4.2mm Irrigation Tubing Set E9311 3.7mm Irrigation Tubing Set E9416 4.2mm Irrigation Tubing Set for use with Pump...

  • Page 26: Customer Service

    ConMed Linvatec Customer Service at 800-237-0169 or your ConMed Linvatec Sales Representative. Outside the U.S. contact your local ConMed Linvatec Representative. Report any events involving injuries or malfunctions to the ConMed Linvatec Regulatory Product Support Department. Returning products for any reason requires an authorized Service Request (S.R.) number prominently displayed on the box and included on all...
  • Page 28 525 French Road Utica, NY 13502-5994 USA (727) 392-6464 EC REP Customer Service: 1-800-237-0169 MDSS GmbH Schiffgraben 41 FAX: (727) 399-5256 D-30175 Hannover, Germany International FAX: +1 (727) 397-4540 email: customer_service@conmed.com www.conmed.com All rights reserved. W41-231-004 Rev. AB 03/2014...
