Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
9762998 Installation
Instructions
Anti−Tip Template
9757142 English/Spanish
9757143 English/French
W10162213 Owners Manual
W10116295 Tech Sheet
9762761 Safer Cooking Tips
12−07 Litho in U.S.A. (mo)

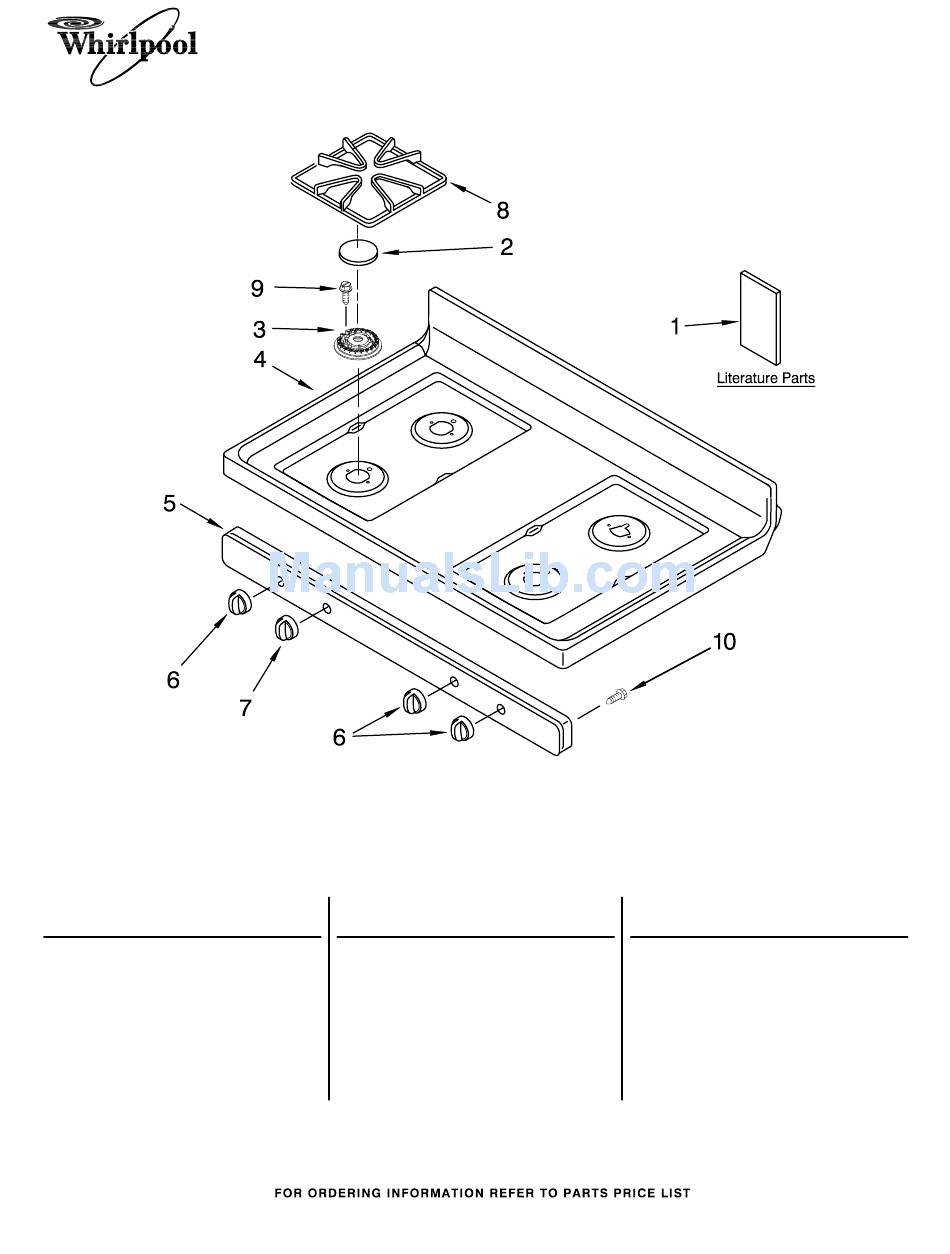

COOKTOP PARTS
For Model: SF272LXTD2
(Universal Silver)
Illus.
Part
No.
No.
DESCRIPTION
2
Cap, Burner
3191904 Left Front
3191901 R. Front, L. Rear
3191898 Right Rear
3
Burner
4455981 Left Front
4455980 R. Front, L. Rear
4455979 Right Rear
1
30" GAS FREESTANDING
SELF CLEAN RANGE
Illus.
Part
No.
No.
DESCRIPTION
4
8272253 Cooktop
5
8523855 Panel, Manifold
6
8273103 Knob, Control (3)
7
8273111 Knob, Powerburner
8
8053458 Grate, Burner (4)
9
3400701 Screw
10
3196557 Screw
Part No. W10181230 Rev. A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Whirlpool SF272LXT
Summary of Contents for Whirlpool SF272LXT
- Page 1 Illus. Part DESCRIPTION Literature Parts 9762998 Installation Instructions Anti−Tip Template 9757142 English/Spanish 9757143 English/French W10162213 Owners Manual W10116295 Tech Sheet 9762761 Safer Cooking Tips 12−07 Litho in U.S.A. (mo) COOKTOP PARTS For Model: SF272LXTD2 (Universal Silver) Illus. Part DESCRIPTION Cap, Burner 3191904 Left Front 3191901 R.
-
Page 2: Control Panel Parts
Illus. Part DESCRIPTION 1 W10009080 Endcap, Left Hand W10009090 Endcap, Right Hand 8053505 Shield−Heat, Lwr 3 W10117565 Panel, Console 9758080 Module, Spark 9762095 Brkt−Mntg, Console CONTROL PANEL PARTS For Model: SF272LXTD2 (Universal Silver) Illus. Part DESCRIPTION 8523412 Bracket, Support 9756301 Cover, Upper 8053910 Shield, Heat 8273132 Cover, Lower 3196169 Screw... -
Page 3: Manifold Parts
MANIFOLD PARTS For Model: SF272LXTD2 (Universal Silver) W10181230... - Page 4 MANIFOLD PARTS For Model: SF272LXTD2 (Universal Silver) Illus. Part DESCRIPTION 8273096 Screw, Valve Burner Base 8273700 Large (3) 8273701 Small (1) Tubing, Burner W/Orifice 8273693 Left Front 8273698 Left Rear 8273695 Right Front 8273697 Right Rear 8523402 Tubing (Manifold to Regulator) 8523406 Harness, Igniter (W/Switches) 8523793 Electrode (4)
-
Page 5: Chassis Parts
CHASSIS PARTS For Model: SF272LXTD2 (Universal Silver) W10181230... - Page 6 Illus. Part DESCRIPTION 1 W10153186 Flue Box 8272747 Shield, Flue 8273036 Burner Box 8053832 Panel, Side (2) 8523249 Brkt, Manifold (2) 3196037 Foot, Front (2) 8 W10058460 Foot, Rear (2) 3195097 Bottom, Oven 10 W10131826 Sensor, Oven 8053967 Baffle, Burner 8053969 Shield, Heat 8053968 Shield, Lower 9760314 Rail, Base (2)
-
Page 7: Door Parts
DOOR PARTS For Model: SF272LXTD2 (Universal Silver) W10181230... - Page 8 DOOR PARTS For Model: SF272LXTD2 (Universal Silver) Illus. Part DESCRIPTION 1 W10171023 Trim, Top 3196164 Screw 9761983 Handle, Door 9761344 Liner, Door 5 W10031790 Screw 9758162 Glass, Inner (2) 3186289 Frame, Glass 8272618 Insulation, Door 9761357 Retainer, Insul. 9761496 Hinge, Door 9761699 Glass, Outer Door Trim, Door Side 8523171 Left Hand...
- Page 9 DRAWER & BROILER PARTS W10181230 For Model: SF272LXTD2 (Universal Silver) Illus. Part DESCRIPTION 1 W10138079 Rack, Oven (2) 9761031 Drawer, Storage 3196817 Bracket, Drawer(2) 3196813 Rivet, Push (2) 9761693 Panel, Drawer Frnt 8053334 Spacer, Glide 3196168 Screw...
- Page 10 OPTIONAL PARTS (NOT INCLUDED) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) SPLICING WIRES−−25FT. LENGTH 242828 Wire, Black 12 Ga. 150 c 242821 Wire, Blue 14 Ga. 150 c 242822 Wire, Brown 14 Ga. 150 c 242830 Wire, Brown 14 Ga.
