Whirlpool SF110AXSQ0 Parts List

Whirlpool SF110AXSQ0 Parts List

30" gas freestanding standard clean range electronic ignition
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
98014964 Instructions
Installation
98015589 Installation Instr
(Template)
98017488 Guide, Use & Care
98007130 Safer Cooking Tips
98007032 Tech Sheet
7−06 Litho in U.S.A. (jac)
COOKTOP PARTS
For Model: SF110AXSQ0
(Designer White)
Illus.
Part
No.
No.
DESCRIPTION
2

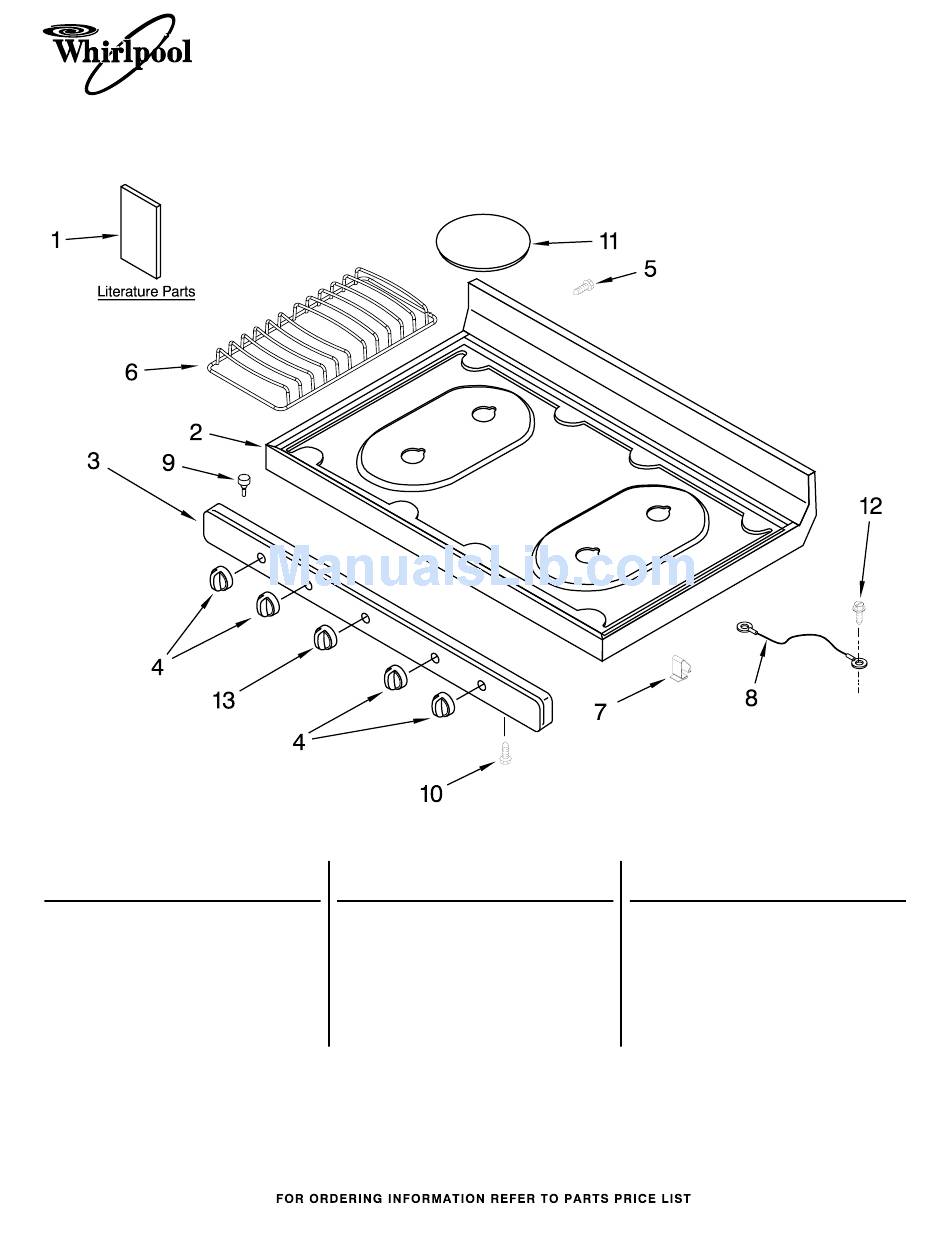

98009677 Cooktop
3 98018109W Panel, Manifold
4
98006102 Knob, Burner (4)
5
98007225 Screw
6
98013747 Grate, Burner (2)
7
98004722 Clip, Cooktop (2)
1
30" GAS FREESTANDING
STANDARD CLEAN RANGE
ELECTRONIC IGNITION
Illus.
Part
No.
No.
DESCRIPTION
8
98014544 Wire, Ground
9
98013389 Bumper, Cooktop
10
98005000 Screw (3)
11
98007065 Cap, Burner (4)
12
8534079 Screw
13
98008321 Knob, Oven
Part No. 8191155
