Electric solid element range

Advertisement

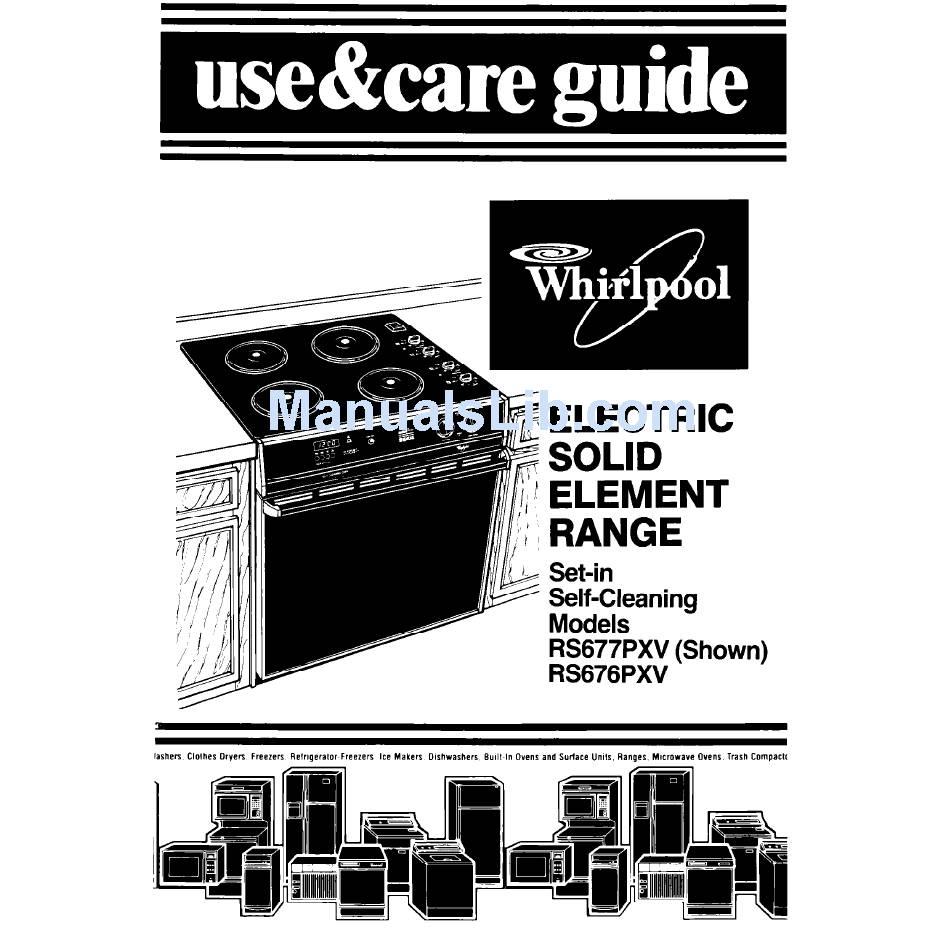

ELECTRIC
SOLID
ELEMENT
RANGE
Set-in
Self-Cleaning
Models
RS677PXV (Shown)
RS676PXV
lashers
Clolhes Dryers
Freezers
Relrlgeralor
Freezers
Ice Makers
DIshwashers
BullI In Ovens and Sudace Unlls. Ranges. Mmowave
Ovens.Trash
ComQaClr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS676PXV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Whirlpool RS676PXV

  • Page 1 Clolhes Dryers Freezers Relrlgeralor Freezers Ice Makers ELECTRIC SOLID ELEMENT RANGE Set-in Self-Cleaning Models RS677PXV (Shown) RS676PXV DIshwashers BullI In Ovens and Sudace Unlls. Ranges. Mmowave Ovens.Trash ComQaClr...
  • Page 2: Table Of Contents

    Using the Oven Controls Baking... Adjusting the Oven Temperature Control Broiling Custom Broil 01989 Whirlpool Corporation Before you use your range You are responsible for: Reading and following all safety precautions in this Use and Care Guide and the Cooking Guide.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS To reduce the rlsk of fire, electrical injury to persons, range, follow Read all instructions before using the range. Install or locate the range only in accordance with the provided Installation Instructions. It is rec- ommended that the range be installed by a qualified installer.
  • Page 4 Children could be burned or injured while climbing on it. - SAVE THESE INSTRUCTIONS Thank you for buying a Whirlpool mall the Owner Registration Card complete the form below. Have this information ready if you need service or call with a question.
  • Page 5: Parts And Features

    Parts and features odels RS677PXV (Shown) & nS676PXV ELECTRONIC MEALTIMER’” OVEN LIGHT -. - - ._... ------_ CONTROL KNOB SURFACE UNIT MARKER REAR SURFACE UNIT INDICATOR LIGHT FRONT SURFACE UNIT CONTROL KNOB lNDicA70~ LIGHT OVEN DOOR 6°C” HEATING --\- I OVEN l3N --___-..
  • Page 6: Using Your Range

    Using your range Using the Surface Units Control knobs must be pushed to a setting. They before turning them can be set anywhere between HI and OFF Until you get used to the settings, start cooking at the high settings; then turn the control knob down to ESUltS, continue cooking.
  • Page 7: Solid Element Surface Units

    Solld elements stay hot for a long time. Do not use the HI sefflng perlods of time or leave pans on hot elements Burned food and damage to the cookware Solid element surface units Before placing a pan on solid element surface units for the first time, heat on HI setting for five minutes.
  • Page 8: The Electronic Mealtimer

    The Electronic MEALTIMER’” The electronic MEALTIMER’” Clock handles many differenttypes The following operating hints may be helpful when using the clock: The numbers on the Display change rapidly when turning the Set Knob. When setting the Time-f-Day Clock, the Display shows hour and minutes. Twenty-five minutes past Forty-five minutes past six o’clock.
  • Page 9: Setting The Electronic Clock

    Setting the Electronic Clock When you first plug in the oven or if your electricity goes off for a while, each light in the Display will flash in sequence. Push in both the Min/Sec Timer Button and the Bake Hours Button. “0:OO”...
  • Page 10: Using The Electronic Minute Timer

    Using the Electronic Minute Timer The Minute Timer does not start or stop the oven. It works Ii ke a kitchen timer. It can be set in minutes and seconds up to 99 minutes. You will hear beeps Push in the Min/Sec Timer Button. The Indicator Light will come on and the Display will show “0:OO:’...
  • Page 11: Using The Oven Controls

    Using the Oven Controls Baking Position the rack(s) property turning on the oven, before lift rack at change rack position, front and pull out. 2. Set the Oven Selector on BAKE. The ON Indicator Light will come on. 4. Put food in the oven. During bak- ing, the elements will turn on and off to keep the oven temperature at the setting.
  • Page 12: Adjusting The Oven Temperature Control

    Adjusting the Oven Temperature Does your oven seem hotter or colder than your old oven? The temperature of your old oven may have shifted gradually new oven is properly adjusted to provide accurate temperatures. But when compared to your old oven, the new design may give you different results. If, after using the oven for a period of time, you are not satisfied with the tempera- ture settings, they can be adjusted by following these steps: Pull the Oven Temperature Control...
  • Page 13: Broiling

    Broiling Position the rack before turning the oven on. See “Broil Chart” in the Cooking Guide or a reliable cookbook for recommended rack positions. 3. Close the door to Broil Stop position (open about 4 inches, 10.2 cm]. The door will stay open by itself.
  • Page 14: Using The Electronic Automatic Mealtimer'" Clock

    Using the Electronic Automatic MEALTIMER” The electronic MEALTIMER’” Clock is designed to turn the oven on and off at times you set, even if you are not around. Automatic baking is ideal for foods which do not require a preheated oven, such as meats and casseroles.
  • Page 15 7. When the baking time is com- the oven will beep for l-2 plete, minutes. To stop the beeping, push the Bake Hours Button. Turn the Oven Selector and Oven Temper- ature Control to OFF. Delay start and automatic shut-off: Position the oven rack(s) properly and place the food in the oven.
  • Page 16 Set the clock for the length Push in baking time you want: the Bake Hours Button, then turn the Set Knob until the length of baking time you want shows in the Display. This example shows 2 hours, 15 minutes. Bake Hours can be set for up to 11 hours, 59 minutes.
  • Page 17: Other Operating Hints

    If you would like to change the color of your oven door glass to white or almond, you can order one of these kits: White (Kit No. 814069) or Almond (Kit No. 814070) from your Whirlpool Dealer. The kits include easy installation instructions,...
  • Page 18: Caring For Your Range

    Caring for your range Control Panels and Knobs Burn and Electrical Shock Hazard Make sure all controls are OFF and the range is cool before cleaning. Failure to do so can re- sult in burns or electrical shock. Pull knobs straight off 2.
  • Page 19: Solid Element Surface Units

    Cook Top Polishing Creme on the trim rings. To obtain order information for Cook Top Polishing Creme (Part No. 814009) or Electrot% dressing [Part No. 814030), write to: Whirlpool Corporation Attention: Customer Service Dept. 1900 Whirlpool Drive LaPorte, IN 46305...
  • Page 20: Using The Self-Cleaning Cycle

    Using the Self-Cleaning Cycle The Self-Cleaning uses cycle very high heat make sure you understand exactly how to use the Self-Cleaning Before You Start Clean the areas shown by hand. They do not get hot enough during the Self-Cleaning cycle for soil to burn away.
  • Page 21: Setting The Controls

    Setting the Controls Be sure the kitchen is ventilated durlng will help heat, odors and smoke to disappear Set the Oven Selector and Oven Temperature Control on CLEAN. 3. Push in and release the Self-Clean Button. A J-hour Self-Cleaning cycle will be set automatically. The Display will count down the time in minutes.
  • Page 22: Special Tips

    Turn the Oven Selector and Oven Temperature Control to OFF. The ON Indicator Light will go off. Special Tips Keep the kitchen well ventilated during the Self-Cleaning get rid of heat, odors and smoke. Clean the oven before it gets heavily soiled. Cleaning takes longer and results in more smoke than usual.
  • Page 23: How It Works

    To stop the Self-Cleanlng cycle ai anyflme: 1 l ,‘;;‘z and release the Self-Clean How It Works During the Self-Cleaning cycle, the oven gets much hotter than it does for baking or broiling...approximately 875°F (468°C). This heat breaks up grease and soil and burns it off.
  • Page 24: Cleaning Chart

    Cleaning Chart PART WHAT TO USE Exterlor Warm soapy water surfaces a soft cloth. Plastic scrubbing for heavily-soiled areas. Surface units Warm soapy water (Solid a sofl cloth. elements) Soapy scouring pad or scouring powder. To darken surface units or to remove Salt-free oil on a soff cloth.
  • Page 25: The Oven Light

    PART WHAT TO USE Oven racks Self-Cleaning cycle. Warm soapy water soapy steel wool pads. NOTE: The oven racks will dlsoolor lefl In the oven during the Self-Cleanlng stay rhlny, remove from the oven and clean letl In the oven durlng the SelfCleanIng amount of vegetable...
  • Page 26: If You Need Service Or Assistance

    3. Remove the light bulb from its socket. Replace the bulb with a 40-watt appliance bulb. NOTE: The oven light will not work during If you need service or assistance, we suggest you follow these five steps: Before calling for assistance...
  • Page 27: If You Have A Problem

    Whirlpool appliance. To locate FSP replacement parts in your area, referto Step 3 above or call the Whirlpool COOL-LINE service as- sistance number in Step 2.
  • Page 28: Warranty

    C. Pick up and delivery. home. D. Damage to range product of God or use of products WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow consequential damages so this limitation warranty gives you specific...
