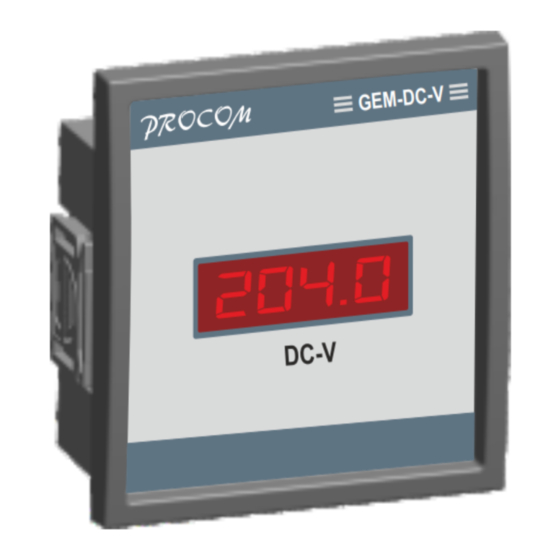

- Page 1 ® PR C M GEM DC Series-Single Phase Panel Meter Installation Guide Rev.-01...
- Page 2 1. Introduction : GEM-DC series meters are single phase panel meter with Measurement of Accuracy class 1.0 (FS), High glow display for distant viewing, Programmable site selectable Scaling of Current. 2. Model Selection Chart : DC Voltage DC Current GEM-DC-V GEM-DC-I 3.
- Page 3 4. Setting Range I FS Range : 1 - 999 A for GEM-DC-I 5. Terminal Connection : 5.1 Connection : GEM - DC-V 5.2 Connection : GEM - DC- I SHUNT 6. Setting Procedure : Enter the parameter mode by pressing button for 3 sec Display will show 1 f5 Press...
- Page 4 Top View Panel Cutout 27.5 37.5 49.5 Front View Side View All dimensions are in mm.
