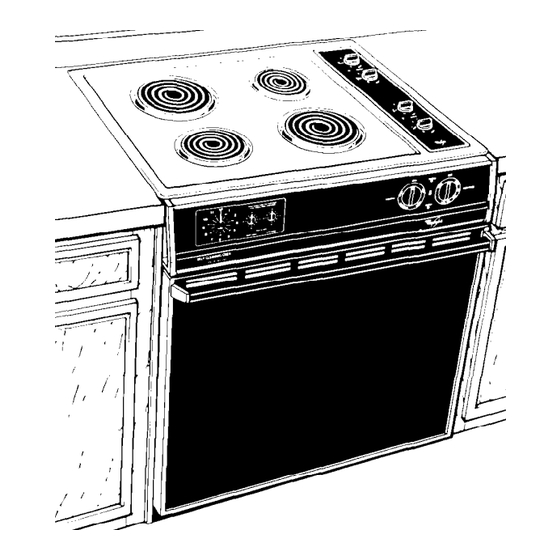

Whirlpool RS660BXV Use & Care Manual

Electric range
Hide thumbs Also See for RS660BXV:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Whirlpool RS660BXV

Summary of Contents for Whirlpool RS660BXV

  • Page 2: Table Of Contents

    Using the Minute Timer Using the Oven Controls Baking Broiling Using the Automatic MEALTIMER’ Clock Oven Vent 01988 Whirlpool Before you use your range Read this Use 6 Care Guide and the Cooking Guide for important information. You are personally responsible for:...
  • Page 3 DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE CAUSING - SAW THESE INSTRUCTIONS Thank you for buying a Whirlpool appliance. the Owner Registratlon Card provlded the form below. Hove this information ready a question.

  • Page 4: Parts And Features

    Parts and features Model RS660BXV LEFT REAR CONTROL KNOB REAR SURFACE UNIT SIGNAL LIGHT ‘RIGHT REAR CONTROL KNOB PANEL LEFl FRONT CONTROL KNOB FRONT SURFACE UNIT SIGNAL LIGHT RIGHT FRONT SELF-CLEANING SURFACE UNIT OVEN INDICATOR AUTOMATIC MEALTIMER* STOP CLO~KIMINUTE TIMER...

  • Page 5: Using Your Range

    OVEN Using your range Using the Surface Units Control knobs must be pushed in before turning them to Q setting. They con be set anywhere between and OFF. Until you get used to the settings, use the following start cooking at the high settings;...

  • Page 6: Optional Canning Kit

    If you plan to use the cooktop for canning, of a Canning Kit. Order the kit from your Whirlpool Company. See the Cooking Guide for important results and to prevent damage or ridged...

  • Page 7: Setting The Clock

    Setting the Clock Push in and turn the Minute Timer Knob to set the Clock. Push in Minute Timer Knob and turn clockwise until clock shows the right time of day. Using the Minute Timer The Minute Timer does not start or stop the oven. It works like a kitchen timer. Set it in minutes up to an hour.

  • Page 8: Using The Oven Controls

    Using the Oven Controls Baking Position the rack(s) properly before turning on the oven. change rack position, lift rack at front and pull out. 2. Set the Oven Selector on BAKE. The “on” Signal Light will come on. NOTE: Oven Put food in the oven.
  • Page 9 Adjusting the Oven Tempemture Does your oven seem hotter or colder than your old oven? The temperature of your old oven may have shifted gradually Your new oven is properly adjusted to provide comparing to your old oven, the new design If after using the oven for a period of time, you are not satisfied with the temperature...

  • Page 10: Broiling

    Broiling Position the rack before turning the oven on. See “Broil Chart” in the Cooking Guide or a reliable cookbook for recommended rack positions. 3. Close the door to the Broil Stop position (open about 4 inches, 10.2 cm]. The door will stay open by itself.

  • Page 11: Using The Automatic

    Using the Automatic MEALTIMER* The automatic MEALTIMER* Clock is designed you set, even when you are not around. Automatic baking is ideal for foods which do not require Do not use the automatic such as meats and casseroles. cookies, efc...undercooking will result.

  • Page 12: Oven Vent

    To start baking now and stop automatically: Position rack(s) properly and place 2. Make sure the clock is set to the right time of day. 3. Push in and turn the Stop Time Knob to shut off. 4. Set the Oven Selector on TIMED BAKE.

  • Page 13: Optional Rotisserie

    White (Kit No. 814071) or Almond No. 814072) from your Whirlpool Dealer. The kits include instructions. Caring for your range Control Panels and Knobs Pull knobs straight off.

  • Page 14: Surface Units And Reflector Bowls

    Surface Units and Reflector Bowls 3. Pull the surface unit straight away from the receptacle. 2. Lift the edge of the unit, opposite the receptacle, just enough clear the element hold down clip and the reflector bowl. 4. Lift out the reflector bowl.
  • Page 15 3. Hold the surface unit as level as possible with the terminal just started into the receptacle. Push the surface unit terminal into the receptacle. CAUTION: Reflector bowls reflect heat back to the utensils on the surface unlfs. They also help catch spills. When they are kept clean, they reflect heat better and look new longer.

  • Page 16: Using The Self-Cleaning Cycle

    Using the Self-Cleaning Cycle very high heat The Self-Cleaning cycle uses make sure you understand exactly Before You Start Clean the shaded areas by hand. They do not get hot enough during the Self-Cleaning cycle soil to burn away. Use hot water and detergent or a soapy steel...
  • Page 17 Setting the Controls Be sure the k&hen Is ventilated during the SeWCleanIng cycle. This will help normal smoke and heat odors to disappear from the room as quickly as posslbl Set the Oven Selector and Oven Temperature Control on CLEAN. The “on”...
  • Page 18 Special Tips Keep the kitchen well ventilated during get rid of normal heat, odors and smoke. Clean the oven before it gets heavily takes longer and results in more smoke than usual. If the Self-Cleaning cycle doesn’t get the oven as clean the cycle may not have been set long enough pared...

  • Page 19: Cleaning Chart

    Cleaning Chart WHAT TO USE PART Exterior Warm soapy water surtaces a soft cloth. Plastic scrubbing (stalnless for stubborn spots. steel finish) NOTE: For stainless steel surfaces, Instructions before using non-abrasive Cook Top Pollshing Creme Surface units No cleaning required. Warm soapy water and a...

  • Page 20: Oven Light

    The Oven Light The oven light will come on when you open the oven door, To Replace: 3. Remove the light bulbfrom socket. Replace the bulb with a 40-watt appliance bulb. CAUTION: The bulb cover must be in place when using the oven. The cover protects the bulb from breaking.

  • Page 21: If You Need Service Or Assistance

    See the Cooking Guide for more infor- mation on cooking problems how to solve them. If you need assistance?.. Call Whirlpool COOL-LINE@; serv- ice assistance telephone number. Dial free from anywhere in the U.S.: 1-800-253-1301 and talk with one of our trained con- sultants.
  • Page 22 FSP is a registered trademark Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Whirlpool appliance. replacement parts will fit right and work right, because they are made to the same exacting specifications...
  • Page 23 Notes...

  • Page 24: Whirlpool Range

    D. Damage to range product caused of God or use of products not approved WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow consequential damages so this limitation warranty gives you specific...
