Summary of Contents for Whirlpool RS600BXV

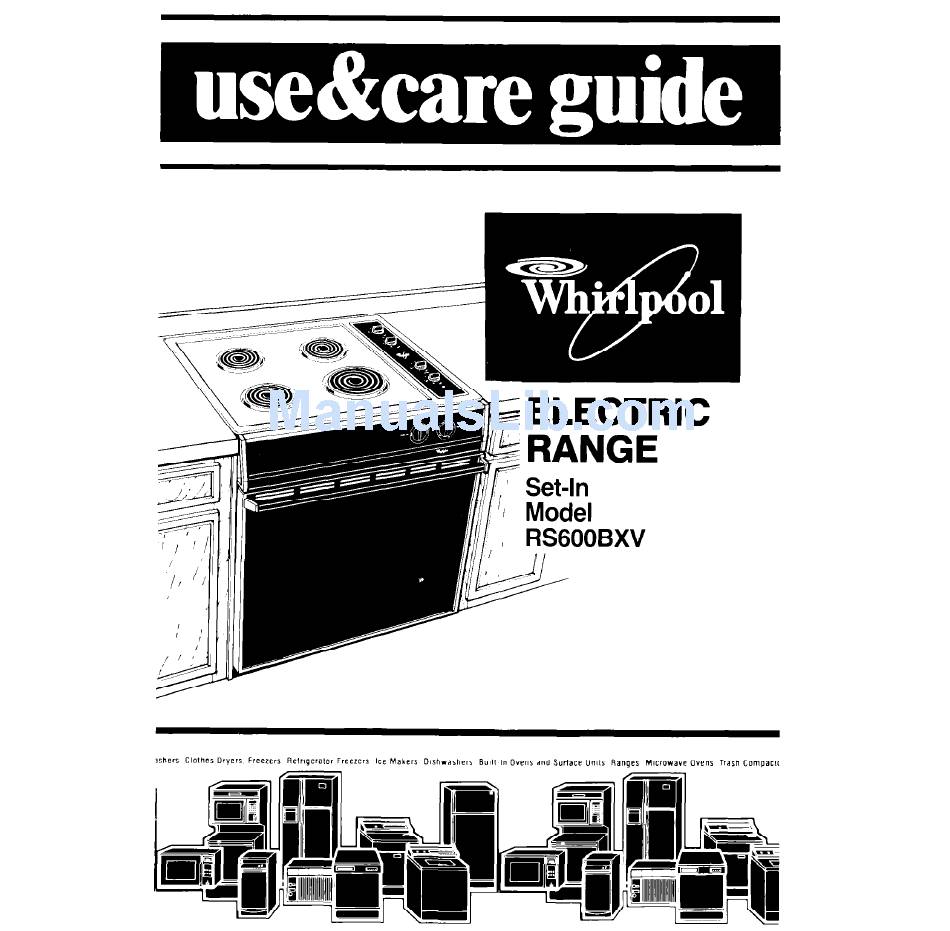

- Page 1 ELECTRIC &RANGE -G==...
-
Page 2: Before You Use Your Range
Optional Canning Using the Oven Controls Baking. Broiling Oven Vent Optional Rotisserie 01988 Whirlpool Before you use your range Read this Use 6 Care Guide and the Cooking Guide for important information. You are personally responsible for: Reading and following... -
Page 3: Important Safety Instructions
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE CAUSING - SAW THESE INSTRUCTIONS Thank you for buying a Whirlpool appliance. the Owner Reglstration Card provided the form below. Have this information a question. -
Page 4: Parts And Features
Parts and features Model RS600BXV LEFl REAR CONTROL SURFACE UNIT INDICATOR RIGHT REAR CONTROL ZIGHT FRONT ZONTROL KNOB SURFACE UNIT SIGNAL LIGHT KNOB ONE-PIECE CHROME REFLECTOR BOWL KNOB OVEN DOOR PLUG-IN... -
Page 5: Using Your Range
OVEN SIGNAL LIGHT OVE’N SELECTOR Using your range Using the Surface Units Control knobs must be pushed In before turning them to a setting. They can be set anywhere between and OFF. Until you get used to the settings, use the following start cooking at the high settings;... -
Page 6: Optional Canning Kit
If you plan to use the cooktop for canning, of a Canning Kit. Order the kit from your Whirlpool Company. See the Cooklng Gulde for Important results and to prevent damage or ridged bottoms (woks, ridged utensil information. - Page 7 Using the Oven Controls Baking Position the rack properly before turning on the oven. To change rack position, lift rack at front and pull out. 2. Set the Oven Selector to BAKE. NOTE: Oven 4. Put food in the oven. rack, walls and door will be hot.
- Page 8 Adjusting the Oven Temperature Does your oven seem hotter or colder than your old oven? The temperature of your old oven may have shifted gradually Your new oven Is properly adjusted to provide accurate temperatures. But when comparlng to your old oven, the new design may glve you different results. If after using the oven for a period of time, you are not satisfled wlth the temperature settings, they can be adjusted by following these steps:...
- Page 9 Broiling , Position the rack before turning the oven on. See “Broil Chart” in the Cooking Guide or a reliable cookbook for recommended rack positions. 3. Close the door to the Broil Stop position (open about 4 inches, 10.2 cm). The door will stay open by itself.
-
Page 10: The Oven Vent
White (Kit No. 814071) or Almond No. 814072) from your Whirlpool Dealer. The kits include instructions. Do not block vent. -
Page 11: Caring For Your Range
Caring for your range Control Panels and Knobs Pull knobs straight off 2. Use warm soapy water and a soft cloth, or spray glass cleaner, wipe the control panels. Rinse and wipe dry. 3. Wash control knobs in warm soapy water. -
Page 12: Surface Units And Reflector Bowls
Surface Units and Reflector Bowls 2. Lift the edge of the unit, opposite the receptacle, just enough clear the element hold down clip and the reflector bowl. 3. Pull the surface unit straight away 4. Lift out the reflector bowl. See from the receptacle. - Page 13 Replacing 3. Hold the surface unlt as level as possible with the terminal just started Into the receptacle. Push the surface unlt termlnal Into the receptacle. CAUTION: Refleotor bowls reflect heat back to the utenrllr surlaoe units. They also help oatoh spills. When they an kept clean, they reflect heat better and look new longer.
-
Page 14: The Oven Door
The Oven Door Removing the oven door will help make it easier to clean Open the door to the first stop position. 2. Hold the door at both sides and lift it at the same angle It is in. 3. To replace, fit the bottom corners of the door over the ends of the hinges,... -
Page 15: Cleaning Chart
Cleaning Chart PART WHAT TO USE Warm soapy water and Exterior a soft cloth. surfaces (stainless Plastic scrubbing steel finish) for stubborn spots. NOTE: For stainless steel surfaces, foiiow above cleaning instructions before using non-abrasive Cook Top Polishing Creme (PN 8l4009). Surface units No cleaning required. -
Page 16: The Oven Light
The Oven Light The oven light will come on when you open the oven door. To Replace: 2. Remove the light bulb from its socket. Replace with a 40-watt appliance bulb. Turn the power back on at the main power supply. -
Page 17: If You Need Assistance
See the Cooking Guide for more infor- mation on cooking problems how to solve them. If you need assistance?.. Call Whirlpool COOL-LINE@ serv- ice assistance telephone number. Dial free from anywhere in the U.S.: l-800-253-1301 and talk with one of our trained con- sultants. -
Page 18: If You Have A Problem
FSP is a registered trademark Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Whirlpool appliance. replacement parts will fit right and work right, because they are made to the same exacting specifications... - Page 19 Notes...
- Page 20 D. Damage to range product caused by accident, of God or use of products not approved WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental consequential damages so this limitation or exclusion may not apply to you.
