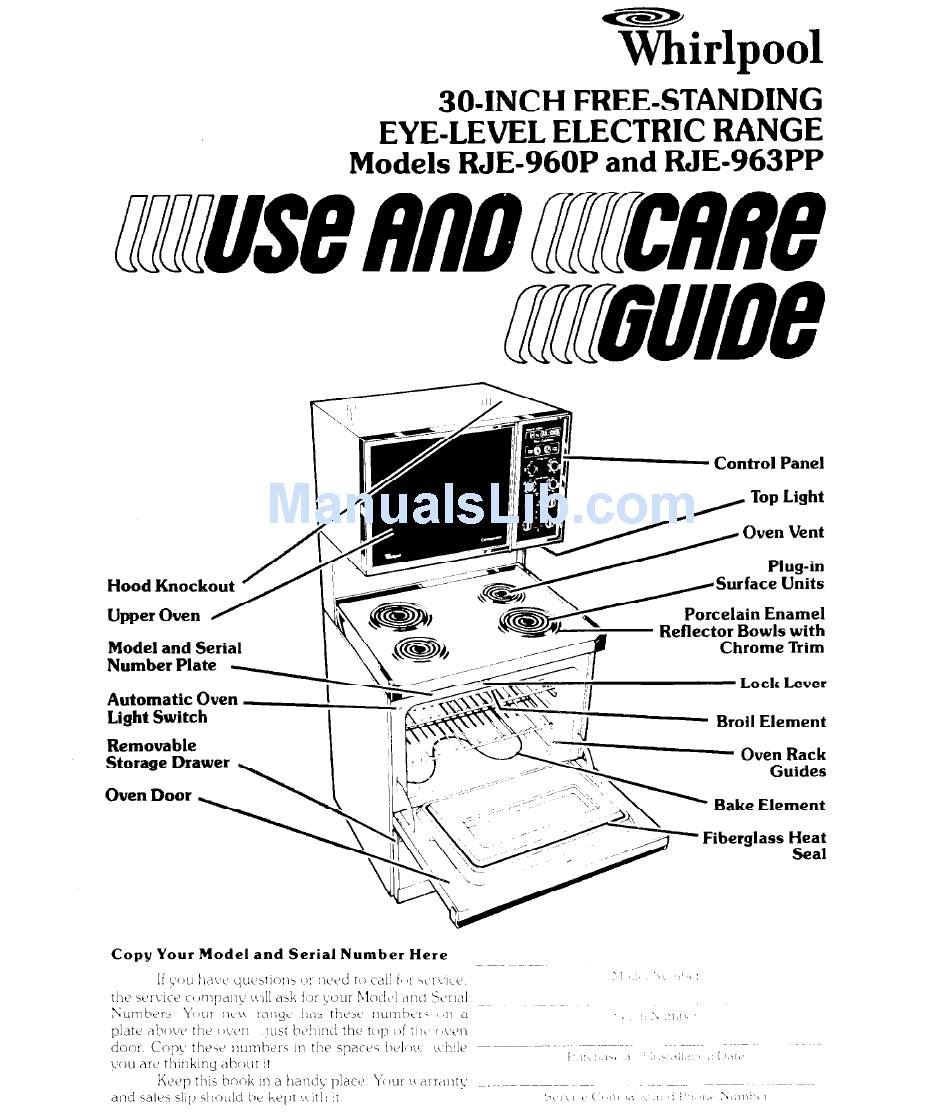

- Page 1 TKirlpool SO-INCH FREE-STANDING EYE-LEVEL ELECTRIC RANGE Models RJE-960P and RJE-963PP Control Panel Top Light Hood Knockout Porcelain Enamel Upper Oven Reflector Bowls with Model Chrome Trim and Serial Number Plate Automatic Oven Light Switch Fiberglass Heat...
- Page 2 Digital Clock Minute Timer Stop Time Knob Start Time Knob Upper Oven Signal Upper Oven Temperature Upper Oven Seiector Lower Oven Signal Lower Oven Temperature Lower Oven Selector Surface Unit Signal Surface Unit Control Oven Light Switch Light Control Knob Knob Light Control...
-
Page 3: Oven Rack Posltlons
Table of Contents BEFORE USING YOUR RANGE ... USING THE SURFACE UNIT CONTROLS USING THE OVEN CONTROLS Baking. Broiling ., ... Variable Broil Feature ..Resetting the Oven Temperature Control Knob ... SETTING THE CLOCK TO THE CORRECT TIME OF DAY USING THE MINUTE TIMER USING THE AUTOMATIC... - Page 4 Using them This helps avoid turning them on accidentally when wiping off the Control Panel. And it helps keep small children from turning them on. You must push in on them.. .then turn until the setting you want shows in the window.
- Page 5 Broiling: distance from the Broil Element. turn it to a lower temperature (see “Variable Broil Feature.” below). There is a stop in the hinges to hold it there. The Oven Signal Light will glow while the broil element is on. Control and the Oven Selector Knobs to “OFF.”...
- Page 6 Resetting the Oven Temperature Control Knob: The temperatures in older ovens often shift very gradually, getting hotter or colder without the user really noticing the change. Your new oven is properly adlusted to provide accurate temperatures. but when compared to your old range, the new design may give you different baking results. If you think that the temperature setting on your range needs to be hotter or colder.
- Page 7 To start and stop your oven automatically: 1. Be sure the clock is set to the right time of day. (The start and stop time hands will also show the correct time.) 3. Push in and turn the Start Time clockwise to the Knob time you want the oven to...
- Page 8 Oven rack positions the racks where you want them to be before you turn on an oven. until it stops. Then lift up the front edge and pull again. It will slide past the stops. out of the glides and out of the oven. the oven and slide it in.
- Page 9 Gasket To replace the lower oven light bulb: wire holder. This cover must be in place when the oven is being used. 1. Turn off the electric power at the main power supply. 2. Pull out on the wire holder and move it to one side. This will let you remove the glass cover and gasket.
- Page 10 Caring for your Continuous Replacing aluminum in most grocery stores Or you can order an aluminum Number 241430) from y’our Whirlpool Dealer. Foil should be flat on the bottom so should the feet on the element.
- Page 11 3. Slide the foil sheet under the bake element. Make sure it is centered and long enough to start up the sides. 4. When you put the bake element back down. make sure all the feet rest solidly on the foil and that the foil is smoothed out across the bottom of the oven.
- Page 12 Turn on the vent hood fan or other kitchen vents durtng the cleaning cycle. This will help remove smoke, odor and heat that are normal during the cycle. Setting the controls to the Self- Cleaning cycle: 1. Set the Lower Oven Selector Knob to “CLEAN.”...
- Page 13 6. The oven will shut off when the preset stop time is reached, but the oven door will stay locked until the oven has cooled. When the Lock Light turns off, turn the Oven Selector Knob and Oven Temperature Control Knob to “OFF.”...
- Page 14 Cleaning spills and spatters when they happen. but you will sometimes want to clean under and behind the control knobs and surface units Thts section will tell you how to remove those. and wahat to use when cleaning. Removing and replacing surface unit control knobs: 1.
- Page 15 Removing surface units and reflector bowls: I ,\ 1 First. be sure the Surface Unit Controls are all “OFF” and that the Terminal 2 See where the surface units plug into the range? Lift each surface 3 L.ift out the reflector bowls To remove surface unit,...
-
Page 16: What To Use
Cleaning under the cooktop: he center. Ratse the swing-up rod to hold it. (Be sure the tip of the rod is in the notch in the cooktop ) Use warm soapy water and a sponge or cloth. Scouring powders or any other abrasive cleaner may harm porcelain enamel ftnishes and can scratch chrome. - Page 17 (upper oven) Heavyduty aluminum foil available at grocery stores or order Part No 241430 from your WhIrlpool dealer or your TECH-CARE’ scrvlce representative Most fat spatters on the Continuous Cleanlny porcelain enamel interior surface gradually reduce to a presentably clean condition during normal baking or roasting...
- Page 18 IF YOO NEED SERVICE OR HELP, WE SUGGEST THESE THREE STEPS: 1. Befcre you call for service : It y(~)iir rai:yG does not st’t’rll to bcl operating pr(>pe~-Iv. check the foilo~c~~~~~ tl(‘!ori’ cail~ng fc~t- SerL’Ice If nothing operates: 8 !b 117~ range plugged into an operating outlet or wired into a live circuit :Litt>...
- Page 19 Lvarranty ser\~ce and mallltenLlnct’ to kclep vour WHIRLPOOL You‘ll find wur n<Jargst TECH-CARE your local relephone boc>k \t~llou Pages under Washers Dryers-Repair- Should you not find a listing, dial free, the Whirlpool COOL-LINE’ service assistance telephone number (800) 253-1301. When calling from: Michigan Alaska &...
- Page 20 FSP is a reg~sferecl trademark of Whirlpool Gxporafi~ quality ports. Look forthis symbol of quality whenever void need a replacement part Whlrtpool appliance. your FSP replacemen parts will fli right and work right, because they are made to the same exacting...
