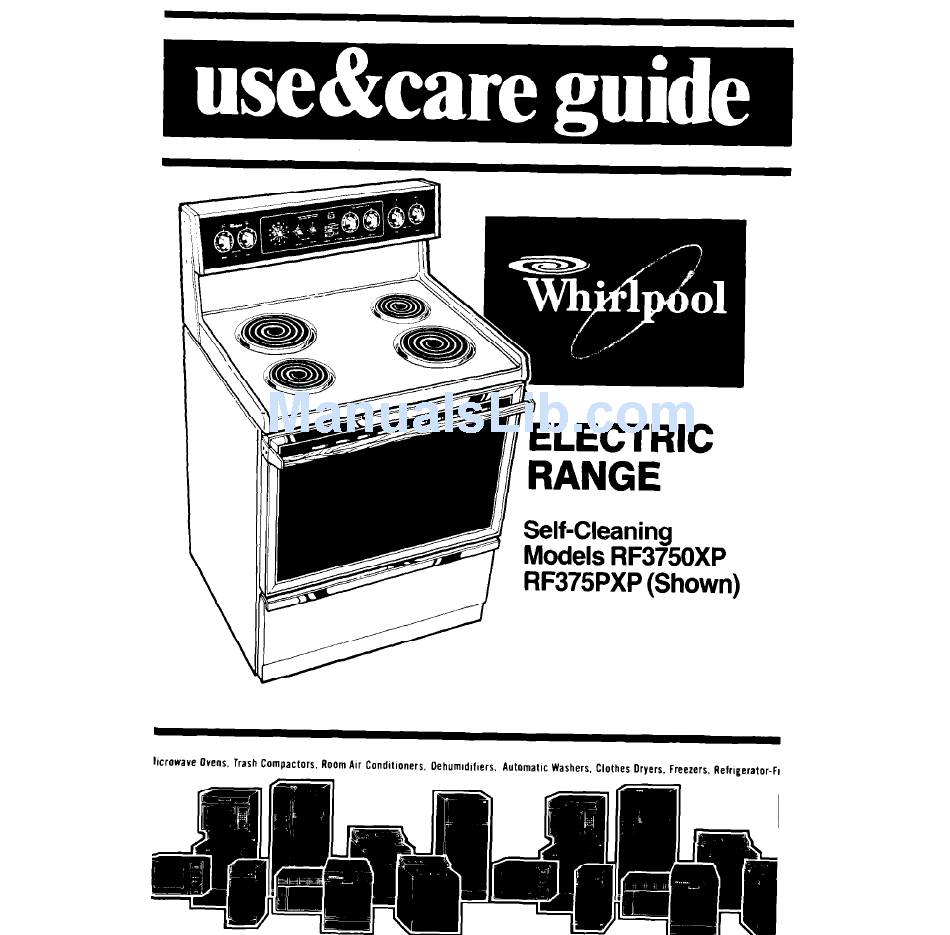

- Page 1 RF375PXP (Shown) tlcrowave Ovens. Trash Compactors. Room Au Condwoners. Dehumldlflers. Automatlc Washers, Clothes Dryers. Freezers, Relrleerator-FI...
-
Page 2: Table Of Contents
Using the Minute Timer Using the Oven Controls Baking... Broiling Using the Automatic MEALTIMER’ Clock Oven Vent Storage Drawer 01987 Whirlpool Before you use your range Read this Use & Care Guide and The Cooking intormaflon. You are personally responsible for: Reading... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS DO NOT allow children to use or play with any part of the range, or leave them unattended near it. They could be burned or injured. 2. DO NOT store things children might want above the range. Children could be burned... -
Page 4: Parts And Features
Parts and features Models RF3750XP and RF375PXP LEFl FRONT SURFACE UNIT CONTROL KNOB SIGNAL LIGHT CONTROL PANEL PLUG-IN SURFACE UNIT AUTOMATIC LIGHT SWITCH MODEL AND SE NUMBER PLATE BROIL ELEMENT SELF-CLEANIN OVEN FIBERGLASS HEAT SEAL - REMOVABLE STORAGE DRAWER LITERATURE PAC... -
Page 5: Using Your Range
OVEN TEMPERATURE OVEN LIGHT SWITCH CONTROL OVEN SIGNAL LOCK CLEAN LIGHT LIGHT LIGHT Using the surface units Control knobs must be pushed betore turning them to a setting. They can be set anywhere between and OFF. Until you get used to the settings, use the following start cooking at the high settings;... -
Page 6: Optional Canning Kit
If you plan to use the cooktop for canning, of a Canning Kit. Order the kit from your Whirlpool Company. See the “Cooking Guide” for important Setting the Clock Push in and turn the Minute Timer Knob to set the Clock. -
Page 7: Using The Minute Timer
Using the Minute Timer The Minute Timer does not start or stop the oven. It works like a kitchen timer. Set it in minutes up to an hour. You will hear a buzzer when the set time is up. DO NOT PUSH IN THE KNOB when setting the Minute Timer. Wlthout pushlng It In, turn the... -
Page 8: Adjusting The Oven Temperature
2. Set Oven Selector to BAKE. Put food in the oven. Note: Oven racks, walls and door will be hot. During baking, the elements will turn on and off to keep the oven temperature at the setting. The Oven Signal Light will turn on and off with the elements. - Page 9 Pull the Oven Temperature Control straight off 3. To lower the temperature, move a notch closer to LO. Each notch equals about10”F (5°C). Broiling Position the rack before turning the oven on. See broil chart In the “Cooking Guide” or a reliable cookbook for recommended rack positions.
- Page 10 3. Close the door to the Broil Stop position, (open about 4 inches, 10.2 cm]. The door will stay open bv itself. 5. When broiling is done, turn both the Oven Selector and the Oven Temperature Control to OFF. Custom Broil If food is cooking too fast, turn the Oven Temperature...
- Page 11 Using the Automatic MEALTIMER* The automatic MEALTIMER’ Clock is designed you set, even when you are not a round. Automatic baking is ideal for foods which do not require a preheated as meats and casseroles. Do not use the automatic etc...undercooklng will result.
-
Page 12: The Oven Vent
To start baking now and stop automatically: Position rack(s) properly, and place 2. Make sure the clock is set to the right time of day. 3. Push in and turn the Stop Time Knob clockwise to shut off. 4. Set the &en Selector on TIMED BAKE. -
Page 13: The Storage Drawer
The Storage Drawer The storage drawer is for storing pots and pans. Use care when handling the drawer. Removing the storage drawer Pull drawer straight out to the first stop. Lift front and pull out to the second stop. Replacing the storage drawer Fit ends of drawer... -
Page 14: Optional Rotisserie
Optional Rotisserie If you would like a rotisserie for your lower oven, you can order a kit (Part No. RCK-81/242985) from your Whirlpool instructions. Caring for your range Control Panel 1. Pull knobs straight off. 2. Use warm soapy water and a sofl cloth, or spray glass cleaner, control panel. - Page 15 3. Pull the surface unit straight away from the receptacle. Replacing 3. Hold the surface unit as level as possible with the terminal just started into the receptacle. 4. Lifl out the reflector bowl and trim ring. See Cleaning Chart on page for cleaning instructions.
-
Page 16: Lift-Up Cooktop
CAUTION: Reflector bowls reflect units. They also help catch spills. When they are kept clean, heat better and look new longer. If a trim ring gets discolored, some of the utensils enough, or some may be too large for the surface some of the heat that’s meant to go into or around and heats the trlm ring. -
Page 17: Oven Window
The Oven Window If your range has an oven window instead and frame can be removed for cleanrng. DOOR. To remove the outer window: With the door closed, remove screws from the top of the outer window frame. To replace the outer window: Fit the bottom tabs of the frame into the bottom of the window... -
Page 18: Using The Self-Cleaning Cycle
Using the Self-Cleaning Cycle The self-cleaning cycle uses very high heat to burn away make sure you understand exactly how to use the cycle Before You Start Clean the shaded areas by hand. They do not get hot enough dur- ing the Self-Clean cycle for soil to... -
Page 19: Setting The Controls
Setting the Controls Be sure the kitchen is ventilated during the Self-Cleaning normal smoke and heat odors to disappear Set the Oven Selector and the Oven Temperature Control on CLEAN. 3. Push in and turn the Stop Time Knob clockwise 2 or 3 hours. - Page 20 Special Keep the kitchen well ventilated during the cleaning cycle to help get rid of normal heat, odors and smoke. If the cleaning cycle doesn’t get the oven as clean as you ex- pected, the cycle may not have been set long enough or you may not have prepared the oven...
- Page 21 How It Works During the self-cleaning cycle, the oven gets much hotter than it does for baking or broiling...approximately 875°F (468°C). This heat breaks up grease burns it off. The graph shows approximate temperatures cycle for 3 hours. SELF-CLEANING CYCLE-THREE (Approximate Temperatures 1000°F...
-
Page 22: Cleaning Chart
Cleaning Chart PART WHAT TO CLEAN Soft cloth and warm soapy Exterior water. surfaces Nylon or plastic scouring pad for stubborn spots. Surface units No cleaning required. Porcelaln- Automatic dishwasher enamel reflector warm, soapy water; Self- bowls cleaning Oven cycle. Chrome Automatic dishwasher... -
Page 23: Oven Light
The Oven Light The oven light will come on when you open the oven door. To turn the light on when the oven door is closed, push the Oven light switch on the console. again to turn off the light, 3. -
Page 24: If You Need Service Or Assistance
See the Cooking Guide for more infor- mation on cooking problems how to solve them. If you need assistance%.. Call Whirlpool COOL-LINE” serv- ice assistance telephone number. Dial free from anywhere in the U.S.: l-800-253-1301 and talk with one of our trained... - Page 25 Whirlpool appliance. To locate FSP replacement parts in yourarea, referto Step 3above orcall the Whirlpool COOL-LINE service sistance...
-
Page 28: Microwave Oven
God or use of products not approved E. Any labor costs durina the limited WHIRLPOOL CORPORATION SHALL NOT BE LtABLE FOR INCIDENTAL TIAL DAMAGES, Some states do not allow consequential damages so this limitation warranty...
