For Models: RF367LXSQ0, RF367LXSB0, RF367LXSS0, RF367LXSY0
6−06 Litho in U.S.A. (lwp)

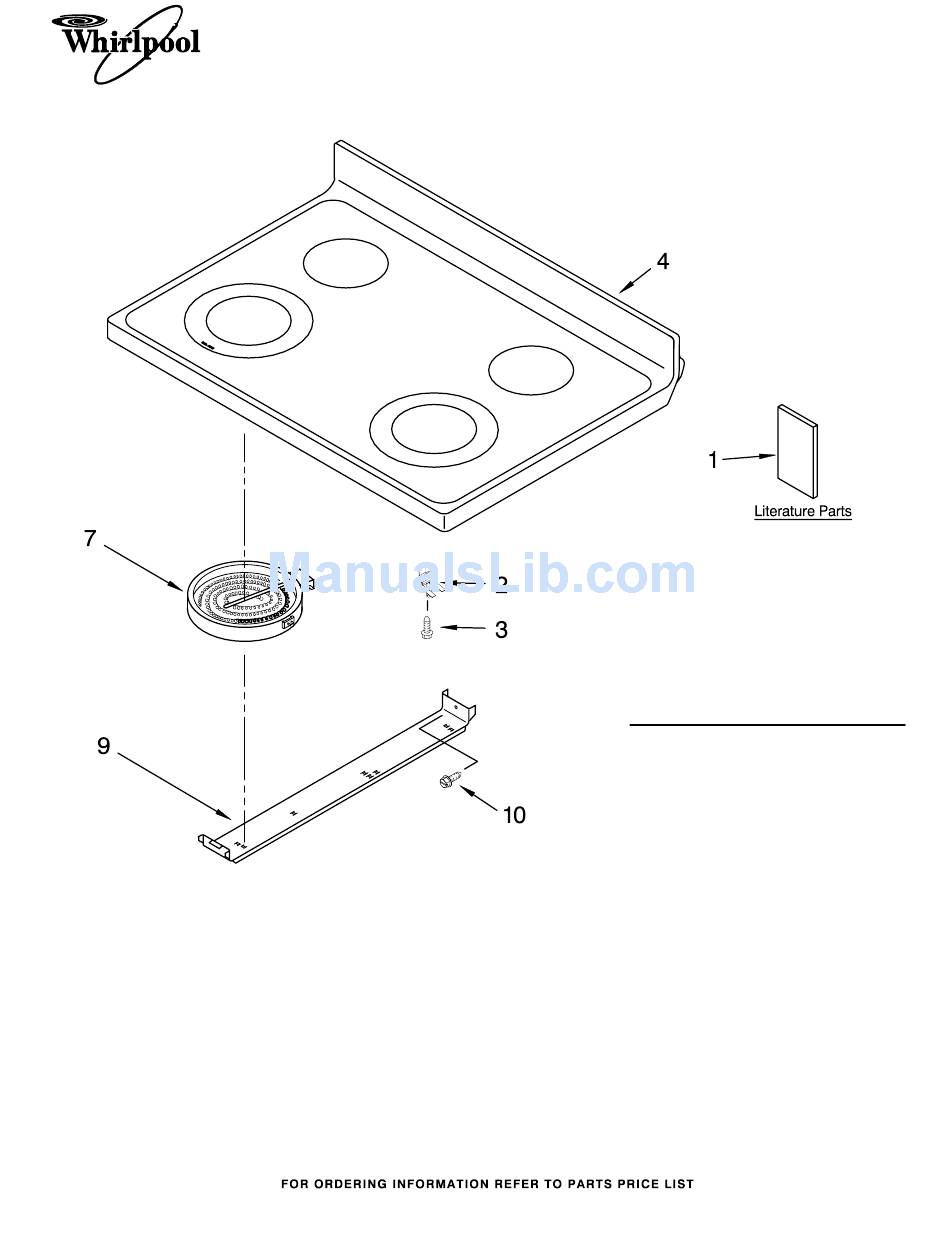

COOKTOP PARTS
(Designer White) (Black) (Black Stainless) (Universal Silver)
Illus.
No.
1
2 W10035930 Spring, Locator
3
4
7
9
10
1
30" ELECTRIC CERAN
FREESTANDING RANGE
SELF CLEAN OVEN
Part
No.
DESCRIPTION
Literature
9762996 Instructions,
Installation
Template, Anti−Tip
9757142 English/Spanish
9757143 English/French
9763001 Owners Manual
9762979 Tech Sheet
9762761 Safer Cooking Tips
3196170 Screw
Cooktop
9763330 White
9763332 Black
Element, Surface
9759351 2400/1200W − LF,RF
8523698 1200 W − LR,RR
8272791 Bracket, Element
3196169 Screw
Part No. 8188363 Rev A
Advertisement
Table of Contents
Related Manuals for Whirlpool RF367LXSB0
Summary of Contents for Whirlpool RF367LXSB0
- Page 1 For Models: RF367LXSQ0, RF367LXSB0, RF367LXSS0, RF367LXSY0 (Designer White) (Black) (Black Stainless) (Universal Silver) 6−06 Litho in U.S.A. (lwp) COOKTOP PARTS 30" ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN OVEN Illus. Part DESCRIPTION Literature 9762996 Instructions, Installation Template, Anti−Tip 9757142 English/Spanish 9757143 English/French...
- Page 2 CONTROL PANEL PARTS For Models: RF367LXSQ0, RF367LXSB0, RF367LXSS0, RF367LXSY0 (Designer White) (Black) (Black Stainless) (Universal Silver) Illus. Part DESCRIPTION Endcap W10009080 Black Left W10009090 Black Right W10009040 White Left W10009050 White Right 9757609 Nameplate Panel, Control 9762021 Black 9762019 White...
- Page 3 CHASSIS PARTS For Models: RF367LXSQ0, RF367LXSB0, RF367LXSS0, RF367LXSY0 (Designer White) (Black) (Black Stainless) (Universal Silver) 8188363...
- Page 4 For Models: RF367LXSQ0, RF367LXSB0, RF367LXSS0, RF367LXSY0 (Designer White) (Black) (Black Stainless) (Universal Silver) Illus. Part DESCRIPTION 9760407 Brkt−Mntg,Dr Hnge 8273905 Support, Corner LR Panel, Side (2) 8053830 White−Textured 8053832 Black−Textured 9761013 Latch, Door 3196961 Rod, Latch 9757242 Latch Asy, Rear...
- Page 5 DRAWER & BROILER PARTS For Models: RF367LXSQ0, RF367LXSB0, RF367LXSS0, RF367LXSY0 (Designer White) (Black) (Black Stainless) (Universal Silver) 8188363 Illus. Part 3195710 Rack, Oven (2) 9761030 Drawer, Storage 9758200 Bracket, Drawer(2) 3196814 White 3196813 Black 8053339 White 8053341 Black 8053334 Glide, Drawer (2)
-
Page 6: Door Parts
For Models: RF367LXSQ0, RF367LXSB0, RF367LXSS0, RF367LXSY0 (Designer White) (Black) (Black Stainless) (Universal Silver) Illus. Part DESCRIPTION Trim, Top 9762391 Black 9761975 White 9762394 Black Stainless W10067560 SS and Unvsl Slvr Model 3196164 Screw Handle, Door 9761983 Black 9761982 White 9761985 SS for Unvsl Slvr... - Page 7 For Models: RF367LXSQ0, RF367LXSB0, RF367LXSS0, RF367LXSY0 (Designer White) (Black) (Black Stainless) (Universal Silver) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) SPLICING WIRES−−25FT. LENGTH 242828 Wire, Black 12 Ga. 150 c 242821 Wire, Blue 14 Ga. 150 c 242822 Wire, Brown 14 Ga.
