Summary of Contents for Whirlpool RF367BXP

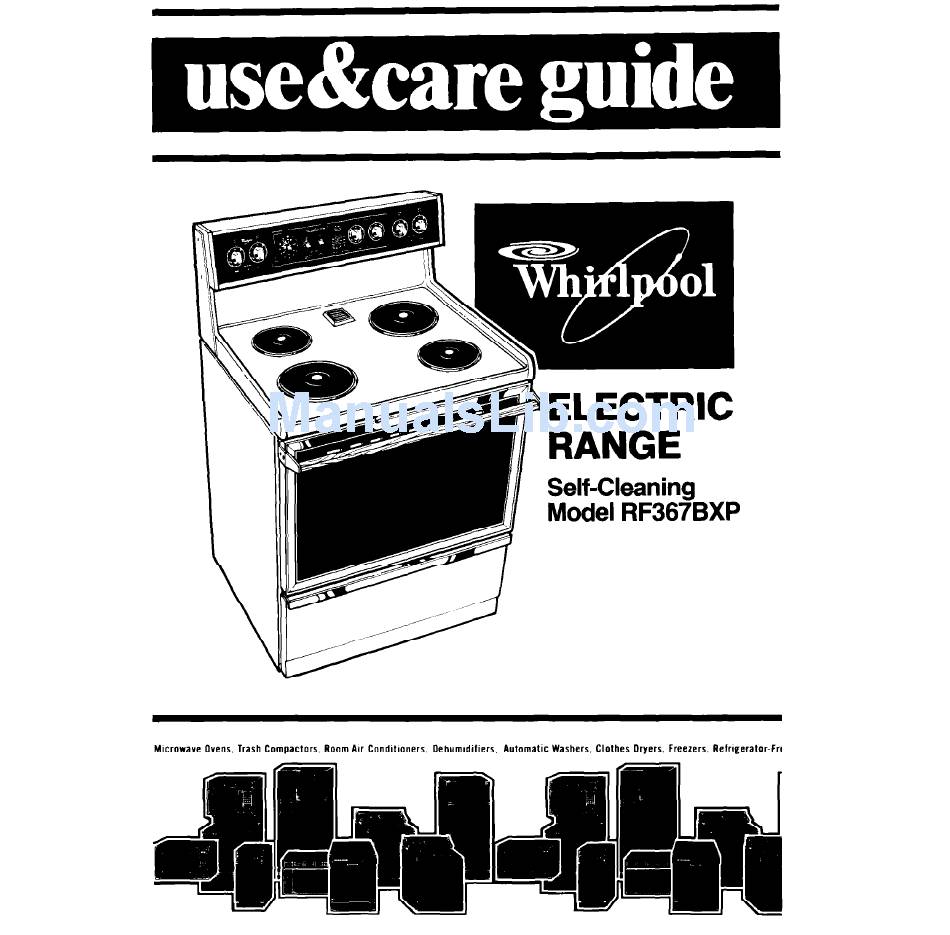

- Page 1 RANGE Self-Cleaning Model RF367BXP Mlcrawave Ovens, Trash Compactors. Room Au Condltloners. Dehum~dlfiers. Automatic Washers, Clothes Dryers. Freezers. RefrlgeratPr-Frl...
-
Page 2: Table Of Contents
Setting the Clock Using the Minute Timer Using the Oven Controls Baking.. Broiling Using the Automatic MEALTIMER’ Clock Oven Vent 01987 Whirlpool Before you use your range Read this Use & Care Guide and The Cooking Information. You are personally responsible for:... - Page 3 IMPORTmT SAFETY INSTRUCTIONS NOT allow children to use or play with any part of the range, or leave them unattended near it. They could be burned or injured. 2. DO NOT store things children might want above the range. Children could be burned injured while climbing...
-
Page 4: Parts And Features
Parts and features Model RF367BXP LEFl FiONT &FACE CONTROL KNOB SIGNAL LIGHT CONTROL PANEL \ SOLID ELEMENT SURFACE UNIT AUTOMATIC OVEN LIGHT SWITCH MODEL AND SERIAL NUMBER PLATE \ SELF-CLEANING OVEN FIBERGLASS HEAT SEAL REMOVABLE STORAGE DRAWER LITERATURE PAC (not shown) -
Page 5: Using The Surface Units
OVEN TEMPERATURE OVEN SIGNAL Using the surface units Control knobs must be pushed before turning them to a setting. They can be set anywhere between and OFF. Solid Element Surface Units Solid element surface units are made of heavy cast-iron to provide cooking. - Page 6 Until you get used to the settings, use the following Use HI to start Use MED-HI Use MED foods cook- to hold a for gravy, ing; to bring rapid boil; to puddings liquids to a start frying and icing; to boil.
-
Page 7: Setting The Clock
Setting the Clock Push in and turn the Minute Timer Knob to set the Clock. Push in Minute Timer Knob and turn clockwise until clock shows the right time of day. Using the Minute Tier The Minute Timer does not start or stop the oven. It works like a kitchen timer. Set it in minutes up to an hour. -
Page 8: Using The Oven Controls
Using the Oven Controls Baking Position the rack(s) properly before turning on the oven. To change rack position, lift rack at front and pull out. 2. Set Oven Selector to BAKE. Rack(s) should be placed the top of the food will be cen- tered in the oven. - Page 9 Adjusting the Oven Temper&we Does your oven seem hotter or colder than your old oven? The temperature of Your old oven may have shifted gradually Your new oven is properly adjusted to provide comparing to your old oven, the new design If after using the oven for a period of time, you are not satisfied with the temperature...
- Page 10 Broiling Position the rack before turning the oven on. See broil chart in the “Cooking Guide” or a reliable cookbook for recommended rack positions. 3. Close the door to the Broil Stop position, (open about 4 inches, 10.2 cm]. The door will stay open by itself.
- Page 11 Custom Broil If food is cooking too fast, turn the Oven Temperature wise until the Oven Signal Light goes off. If you want the food to broil slower from the start, set the Oven Temperature Control between 150”and lower the temperature, the slower the cooking.
- Page 12 5. Set the Oven Selector on TIMED BAKE. To start baking now and stop automatically: Position rack(s) properly, and place 2. Make sure the clock is set to the right time of day. 3. Push in and turn the Stop Time Knob clockwise to shut off.
-
Page 13: The Oven Vent
The Oven Vent OVEN The oven vent is located on the center rear of the cooktop. When the oven is on, hot air and moisture escape from the oven through this vent. Poor baking can result if this vent is blocked. When using the oven, do not cover or place items... -
Page 14: Optional Rotisserie
Optional Rotisserie if you would like a rotisserie for your lower oven, you can order a kit (Part No. RCK-81/242985) from your Whirlpool Deaier.The instructions. Caring for your range Control Panel Pull knobs straight off. -
Page 15: Solid Element Surface Units
Cook Top Polishing Creme on the trim rings. To obtain order information for Cook Top Polishing Creme (PN 814009) or Electrol dressing (PN 814030), write to: Whirlpool Corporation Attention: Customer Service Dept. 1900 Whirlpool Drive LaPorte, IN 46350s... -
Page 16: Using The Self-Cleaning
Using the Self-Cleaning Cycle The self-cleaning cycle uses very high heat to burn away make sure you understand exactly how to use the cycle Before You Start Clean the shaded areas by hand. They do not get hot enough dur- ing the Self-Clean cycle for soil to... -
Page 17: Setting The Controls
Setting the Controls Be sure the kitchen Is venttlated durlng the SeWCleanIng normal smoke and heat odors to dlsappear Set the Oven Selector and the Oven Temperature Control on CLEAN. 3. Push in and turn the Stop Time Knob clockwise 2 or 3 hours. - Page 18 Special Tips OVEN VENT Keep the kitchen well ventilated during the cleaning cycle to help get rid of normal heat, odors and smoke. Cleaning a very soiled oven takes longer and results in more smoke than usual. If the cleaning cycle doesn’t get the oven as clean...
- Page 19 How It Works During the self-cleaning cycle, the oven gets much hotter than it does for baking or broiling...approximately 875°F (468°C). This heat breaks up grease .burns it off. The graph shows approximate temperatures cycle for 3 hours. SELF-CLEANING CYCLE -THREE HOUR SEllING (Approximate Temperatures 1000°F...
-
Page 20: Using The Self-Cleaning Cycle
Cleaning Chart PART WHAT TO USE Exterior Soft cloth and warm surfaces soapy water. Nylon or plastic scouring pad for stubborn spots. Surtace units Soft cloth and warm, (Solid soapy water. elements) Soapy scouring pad or scouring powder. To darken surface units or to remove Soft cloth and salt-free... -
Page 21: Oven Light
The Oven Light The oven light will come on when you open the oven door. Remove the bulb cover in the back of the oven by pulling out and push- ing the wire holder to the side. CAUTION: The bulb cover must be in place protects the bulb from breaking. -
Page 22: If You Need Service Or Assistance
See the Cooking Guide for more infor- mation on cooking problems how to solve them. If you need assistance%. Call Whirlpool COOL-LINE@) serv- ice assistance telephone number. Dlal free from anywhere in the U.S.: l-800-253-1301 and talk with one of our trained Con- sultants. - Page 23 Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Whirlpool appliance. replacement parts will fit right and work right, because they are made to the same exacting specifications used to build...
- Page 24 D. Damage to range product of God or use of products E. Any labor costs during the limited WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUEN- TIAL DAMAGES. Some states do not allow consequential damages so this limitation warranty...
