INFRARED WIRELESS TUNER
This manual offers not only the installation and usage of the IR-802T but also the general descriptions
for the entire Wireless microphone system* such as system configuration and connection.
For details about the system components, refer to the instruction manual attached to each component.
* The Wireless microphone system is comprised of the following components:
• IR-802T CU AQ, IR-802T CU 1Q Infrared Wireless Tuner
• IR-820SP Y 4Q Infrared Wireless Speaker
• IR-200M Y 4Q and IR-310M Y PQ Infrared Wireless Microphones
• IR-200BC Battery Charger
• IR-200BT-2 Ni-MH Battery
Thank you for purchasing TOA's Infrared Wireless Tuner.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
TOA Canada Corporation
OPERATING INSTRUCTIONS
IR-802T
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Toa IR-802T
Summary of Contents for Toa IR-802T
- Page 1 INFRARED WIRELESS TUNER IR-802T This manual offers not only the installation and usage of the IR-802T but also the general descriptions for the entire Wireless microphone system* such as system configuration and connection. For details about the system components, refer to the instruction manual attached to each component.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS ........ 2. SAFETY PRECAUTIONS ............. 3. GENERAL DESCRIPTION ........... 4. FEATURES ................5. HANDLING PRECAUTIONS ............ 6. NOMENCLATURE AND FUNCTIONS ........Front ..........................7 Rear ..........................8 7. SYSTEM CONFIGURATION ..........8. OPERATIONS ................8.1. -
Page 3: Important Safety Instructions
1. IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacture's instructions. •... -
Page 4: Safety Precautions
2. SAFETY PRECAUTIONS These precautions apply only to the IR-802T Infrared Wireless Tuner. for precautions regarding other infrared microphone system devices, please refer to the instruction manual included with each device. • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation. - Page 5 (2) this device must accept any interference received, including interference that may cause undesired operation. Any modifications made to this device that are not approved by TOA Corporation may void the authority granted the user by the FCC to operate this equipment.
-
Page 6: General Description
10 m x 10 m (30 ft x 30 ft). 5. HANDLING PRECAUTIONS • The supplied power supply cord is designed for exclusive use with the IR-802T. Never use it with other equipment. • Install the IR-802T as far as possible from fluorescent lights, digital equipment, PCs and other devices that generate high-frequency noise. -

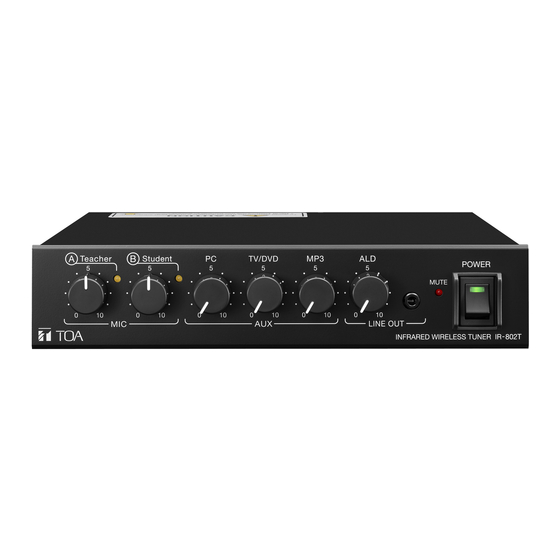

Page 7: Nomenclature And Functions
Channel “A” in IR-802T Connect this terminal to the amplifier’s line input terminal for the assistive listening system. CU AQ and Channel “1” in IR-802T CU 1Q. And also lights green during muting the student 9. Mute indicator... -
Page 8: Rear
[Rear] 12 13 DC24V (Bottom Panel) 10. Cable clip 16. Equalizer controls Run the AC adapter cable through this clip to Adjust low (bass), middle, and high (treble) prevent its plug from being removed. frequency response. Rotate each knob clockwise to increase and AC adapter plug counterclockwise to decrease low, middle, or high frequency output. -
Page 9: System Configuration
7. SYSTEM CONFIGURATION Category 5 cable (straight type) IR-820SP Y 4Q Infrared Wireless Speaker IR-200M Y 4Q Infrared Wireless Microphone IR-802T CU AQ / IR-802T CU 1Q IR-310M Y PQ Infrared Wireless Tuner Infrared Wireless Microphone IR-200BT-2 MB-15B-BK IR-200BC Ni-MH Battery... -
Page 10: Sound Quality Adjustment
8.1.2. Sound quality adjustment Adjust the sound quality when installing the IR-802T. The example here shows the procedure to adjust the sound quality of the IR-802T using the infrared wireless microphone. Rear IR-802T Power switch IR-200M Infrared Wireless Microphone IR-310M... -
Page 11: Operation
"2" in IR-802T CU 1Q as the student Priority function microphone make mute. switch And also, the reception indicator of the channel “A” in IR-802T CU AQ or channel “1” in IR-802T CU 1Q as the teacher microphone lights green. -
Page 12: When Broadcasting Audio Signals From The External Equipment
8.2.2. When broadcasting audio signals from the external equipment IR-802T Step 1. Turn on the unit’s power switch. The power indicator lights. Step 2. Turn on the external equipment's power switch, then reproduce audio signals. Step 3. Adjust the corresponding Auxiliary input volume control for an appropriate output sound. -
Page 13: Connections
9. CONNECTIONS CAUTION • To avoid electrical shocks, be sure to switch off the IR-802T’s power when connecting the IR-820SP. • To avoid damage to the IR-802T and/or connected equipment: · Never connect the “TO IR-820SP” terminal to a PC or LAN. -
Page 14: When Mounting In A Rack
The MB-15B-BK consists of all the rack-mounting parts such as brackets and screws as shown below. Be sure to remove the rubber feet located on the unit’s bottom surface before mounting. 3 x 8 tapping screw 3 x 14 tapping screw* IR-802T Blank bracket 3 x 14 tapping screw* Rack mounting bracket... -
Page 15: Troubleshooting
The microphones’ channels are Set the microphones’ channels incorrectly set. correctly. No sound outputs. IR-802T is not connected to IR- Confirm correctness of the connection 820SP properly. to IR-820SP and connection cable. If faulty is found, connect correctly or replace the cable with appropriate one. -
Page 16: Specifications
13. SPECIFICATIONS Version IR-802T CU AQ IR-802T CU 1Q Power Source 120 V AC, 50/60 Hz (supplied AC adapter must be used) Power Consumption 8 W (based on UL standards) Max. 40.8 W (rated output at IR-820SP) Receiving Frequency Teacher (Channel A): 3.100 MHz Teacher (Channel 1): 4.100 MHz...
