Summary of Contents for Whirlpool RF3300XV

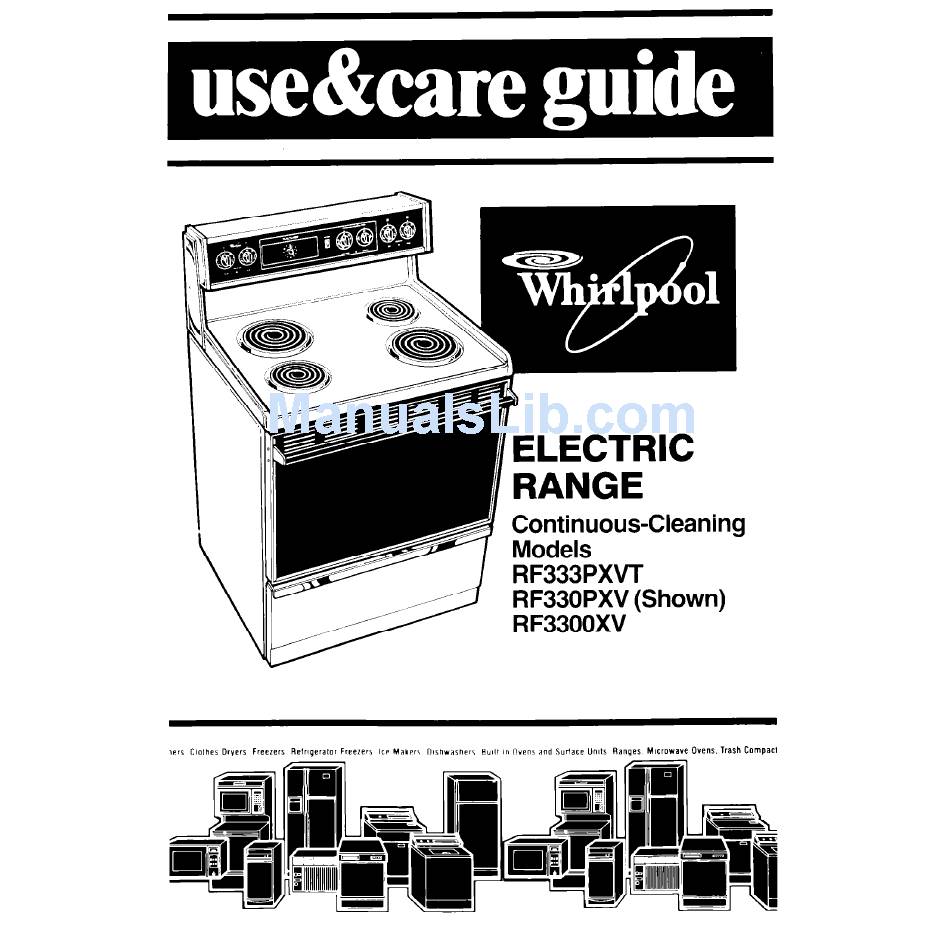

- Page 1 ELECTRIC RANGE Fo;tin;ous-Cleaning RF333PXVT RF330PXV (Shown) RF3300XV Microwave Ovens. Trash Compacl...
-
Page 2: Table Of Contents
Using the Minute Timer Using the Oven Controls Baking Broiling Oven Vent Storage Drawer 01988 Whirlpool Before you use your range Read this Use 81 Care Guide and the Cooking Guide for important information. You are personally responsible for: Reading... -
Page 3: Important Safety
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE CAUSING - SAVE THESE INSTRUCTIONS - Thank you for buying a Whirlpool appliance. the Owner Registration Card provided the form below. -
Page 4: Parts And Features
Parts and features Models RF333PXW, RF330PXV and RF3300XV CONTROL PANEL PLUG-IN SURFACE UNIT MODEL AND SERIAL NUMBER PLATE CONTINUOUS- CLEANING HEAT SEAL REMOVABLE STORAGE DRAWER (black front on RF333PXVT only) LITERATURE PAC (not shown) CLOCK/ MINUTEJIMER _ OVEN VENT -PIECE CHROME... -
Page 5: Using Your Range
OVEN OVEN TEMPERATURE CONTROL SELECTOR OiEN SIGNAL OVEN LIGHT SWITCH LIGHT Using your range Using the Surface Units Control knobs must be pushed in before turning them to a setting. They can be set anywhere between and OFF. Until you get used to the settings, use the following start cooking at the high settings;... -
Page 6: Optional Canning Kit
If you plan to use the cooktop for canning, of a Canning Kit. Order the kit from your Whirlpool Company. See the Cooking Guide for important results and to prevent damage or ridged bottoms (woks, ridged utensil information. -
Page 7: Setting The Clock
Setting the Clock Push in and turn the Minute Timer Knob to set the Clock. Push In Minute Timer Knob and turn clockwlse until clock shows the right time of day. Using the Minute Tier The Minute Timer does not start or stop the oven. It works like a kitchen timer. Set it in minutes up to an hour. -
Page 8: Using The Oven Controls
Using the Oven Controls Baking Position the rack(s) properly before turning on the oven. change rack posttlon, lift rack at front and pull out. 2. Set the Oven Selector to BAKE. NOTE: Oven Put food in the oven. racks, walls and door will be hot. During baking, the elements will... -
Page 9: Adjusting The Oven Temperature
Adjusting the Oven Temperature Does your oven seem hotter or colder than your old oven? The temperature your old oven may have shifted gradually Your new oven is properly adjusted to provide when comparing to your old oven, the new design results. -
Page 10: Broiling
Broiling Position the rack before turning the oven on. See “Broil Chart’ in the Cooking Guide or a reliable cookbook for recommended rack positions. 3. Close the door to the Broil Stop position (open about 4 inches, 10.2 cm). The door will stay open by itself. -
Page 11: The Oven Vent
The Oven Vent Hot air and moisture escape from the oven through a vent under the right rear surface unit. You can cook on the unit, or keep food warm on it while the oven is on. CAUTION: Plaslic tiensllr left over the vent can melt. -
Page 12: Replacing The Storage Drawer
The Storage Drawer The storage drawer is for storing pots and pans. Use care when handling the drawer. Removing the storage drclwer Pull drawer stxght out to the first stop. Lift front and pull out to the second stop. drawer Replacing the storage 1. -
Page 13: Optional Rotisserie
White [Kit No. 814069) or (Kit No, 814070) from your Whirlpool Dealer. The kits include instructions. Caring for your range Control Panel and Knobs Pull knobs straight off. -
Page 14: Surface Units And
Surface Units and Reflector Bowls Removing 3. Pull the surface unit straight away from the receptacle. 5. Lift the edge of the unit, opposite the receptacle, just enough clear the element hold down clip and the reflector bowl. 4. Lift out the reflector bowl. - Page 15 Replacing 3. Hold the surface unit as level as possible with the terminal just started into the receptacle. Push the surface unit terminal into the receptacle. CAUTION: Reflector bowls reflect heat back to the utensfls on the surface unfts. They also help catch spills. When they are kept clean, they reflect heat better and look new longer.
-
Page 16: Lift-Up Cooktop
Lift-Up Cooktop Lift front of cook-top at both front corners until the support rods lock into place. 2. Wipe with warm soapy water. Use a soapy steel wool pad on stubborn spots. To lower cooktop, lift cooktop from both sides while pressing support rods back to unlock them. -
Page 17: The Oven Window
The Oven Window If your range has an oven window instead and frame can be removed for cleaning. DOOR. To remove the outer window: With the door closed, remove screws from the top of the outer window frame. To replace the outer window: Fit the bottom tabs of the frame into the bottom... -
Page 18: The Continuous-Cleaning Oven
It must be used properly. spills from pies and casseroles. heavy-duty la-inch (45 cm) aluminum from your Whirlpool Appliance dealer. to Iltl the feet off the oven bottom. CAUTION: Do not let foll touch the bake element. It could damage the element. - Page 19 ” - Use Q SOQpy “Qnlng reSUltS. Rinse Pad for best ~1~ well.
-
Page 20: Oven Door
Cleaning Chart PART WHAT TO USE Exterlor Warm soapy water surfaces a soft cloth. (porcelain Plastic scrubbing and chrome for stubborn spots. finish) (chrome Bnlsh) NOTE: For chrome surfaces, instructions before using non-abrasive Top Polishing Creme Surface units No cleaning required. -
Page 21: The Oven Light
The Oven Light The oven light will come on when you push the Oven Light Switch on the control panel. Push it again to turn off the light. 2. Remove the light bulb from its socket. Replace with a 40-watt appliance bulb. - Page 22 Guide for more infor- mation on cooking problems how to solve them. If you need assistance?.. Call Whirlpool COOL-LINE” ice assistance telephone Dial free from anywhere in the U.S.: I-800-253-1301 and talk with one of our trained sultants. The consultants...
-
Page 23: If You Need Service Or
FSP is a registered trademark Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Whirlpool appliance. replacement parts will fit right and work right, because they are made to the same exacting specifications... - Page 24 WHIRLPOOL” W-TY t LENGTH OF WARRANTY 1 WHIRLPOOL FULL ONE-YEAR WARRANTY FSP” replacement From Date of Purchase correct Service TECH-CARE@ service WHIRLPOOL WILL NOT PAY FOR A. Service calls to: 1. Correct the installation of the range 2. Instruct you how to use the range 3.
