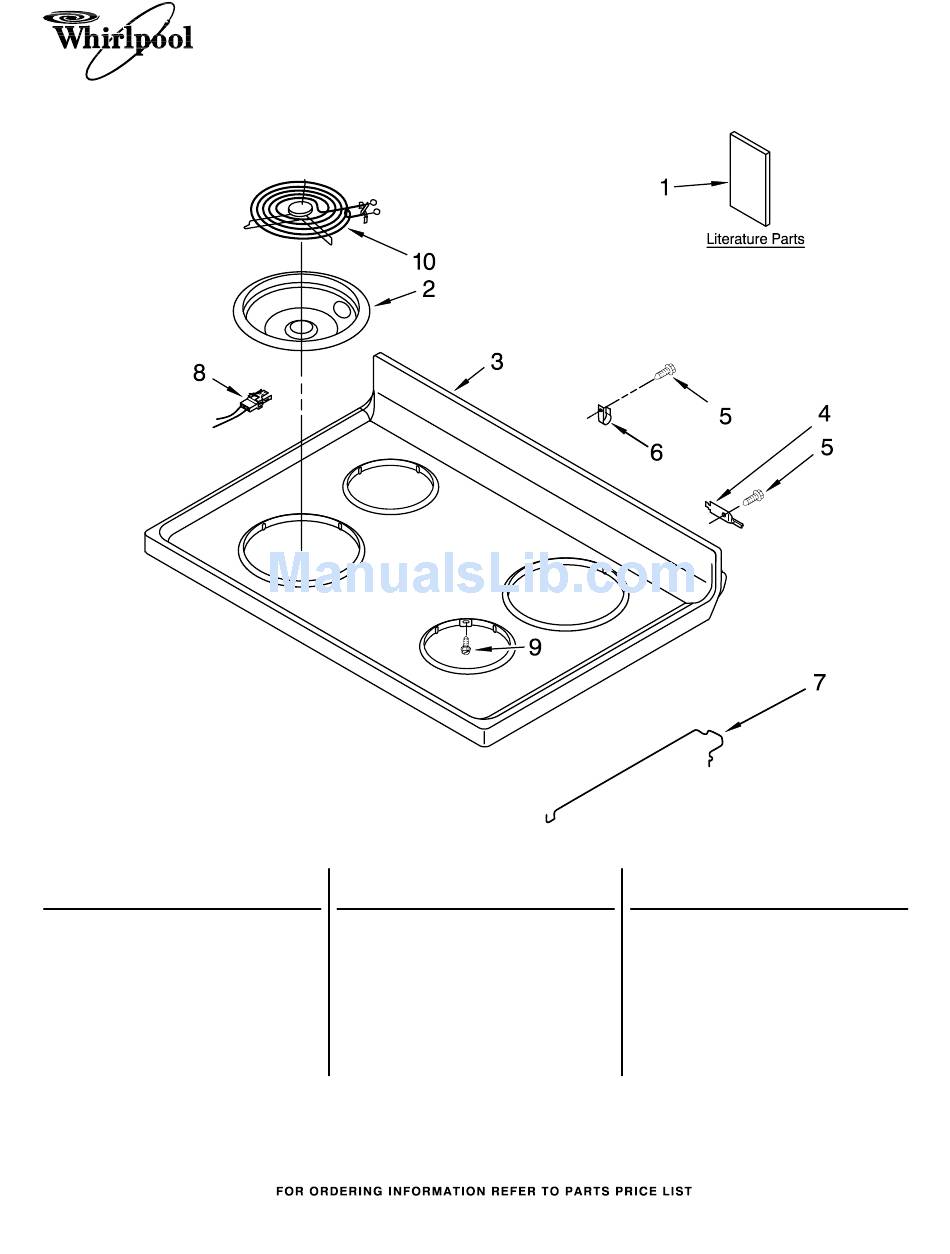

COOKTOP PARTS
For Models: RF264LXSQ3, RF264LXSB3
(Designer White) (Black)
Illus.
Part
No.
No.
DESCRIPTION
2
Bowl, Drip
3195208 6" Chrome
3195209 8" Chrome
3
Cooktop
3186231 White
3186233 Black
4
3195060 Hinge, Cooktop (2)
1
30" ELECTRIC FREESTANDING
SELF CLEAN RANGE
Illus.
Part
No.
No.
DESCRIPTION
5
3196178 Screw
6
308605 Strain Relief
7
3195812 Rod, Support (2)
8
814399 Receptacle, Elmnt
9
3196154 Screw
10
Element, Surface
9761347 6" (2)
9761345 8" (2)
