DESCRIPTION
1
Literature
W10196159 Instructions
Installations
Template, Anti−Tip
9757142 English/Spanish
9757143 English/French
W10200356 Owners Manual
W10115599 Tech Sheet
9762761 Safer Cooking Tips
5−08 Litho in U.S.A. (mo)(bay)

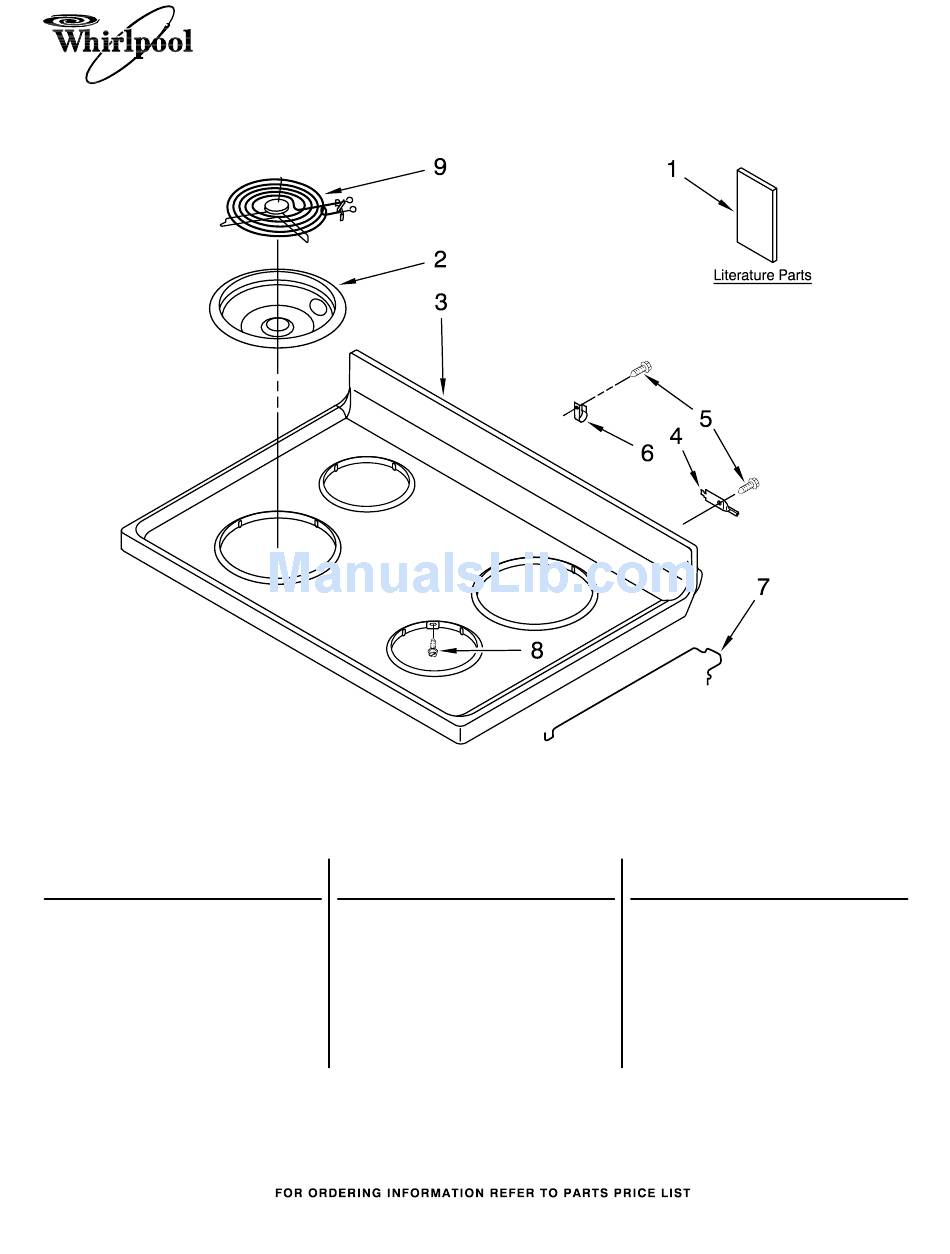

COOKTOP PARTS
For Models: RF263LXTQ3,RF263LXTB3, RF263LXTT3, RF263LXTS3
(White)
Illus.
Part
No.
2
W10196406 6" Chrome (2)
W10196405 8" Chrome (2)
3
3186231 White
8272527 Biscuit
3186233 Black
4
3195060 Hinge, Cooktop (2)
(Black)
(Biscuit)
No.
DESCRIPTION
Bowl, Drip
Cooktop
1
30" ELECTRIC FREESTANDING
SELF CLEAN RANGE
(Stainless)
Illus.
Part
No.
No.
DESCRIPTION
5
3196178 Screw (2)
6
308605 Relief, Strain
7
3195812 Rod, Support (2)
8
3196154 Screw
9
Element, Surface
9761347 6" (2)
9761345 8" (2)
Part No. W10208547 Rev. A
