For Models: RF263LXTW1, RF263LXTQ1, RF263LXTT1, RF263LXTB1, RF263LXTS1
Illus.
Part
No.
No.
DESCRIPTION
1
Literature
9762996 Instructions
Installations
Template, Anti−Tip
9757142 English/Spanish
9757143 English/French
9763001 Owners Manual
W10115599 Tech Sheet
9762761 Safer Cooking Tips
5−07 Litho in U.S.A. (rek)

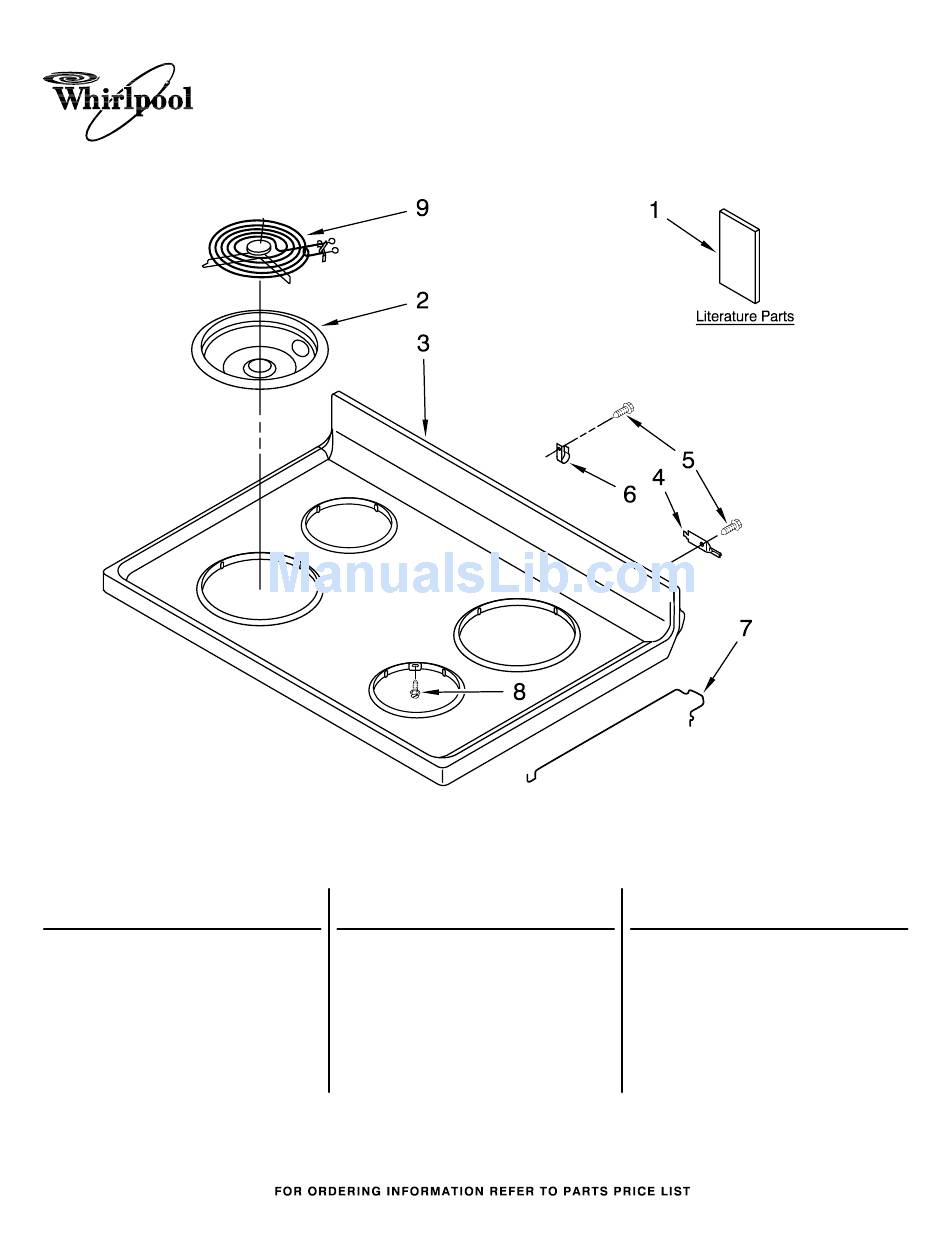

COOKTOP PARTS
(White) (White on White) (Biscuit)
Illus.
Part
No.
No.
DESCRIPTION
2
Bowl, Drip
3195208 6" Chrome (2)
3195209 8" Chrome (2)
3
Cooktop
3186231 White
8272527 Biscuit
3186233 Black
(Black)
Illus.
No.
4
5
6
7
8
9
1
(S.Steel)
30" ELECTRIC FREESTANDING
SELF CLEAN RANGE
Part
No.
DESCRIPTION
3195060 Hinge, Cooktop (2)
3196178 Screw (2)
308605 Relief, Strain
3195812 Rod, Support (2)
3196154 Screw
Element, Surface
9761347 6" (2)
9761345 8" (2)
Part No. W10139615 Rev. A
