Illus.
Part
No.
No.
DESCRIPTION
1
Literature
9762996 Instructions
Installations
Template, Anti−Tip
9757142 English/Spanish
9757143 English/French
9763001 Owners Manual
9762972 Tech Sheet
9762761 Safer Cooking Tips
12−06 Litho in U.S.A. (lwp)

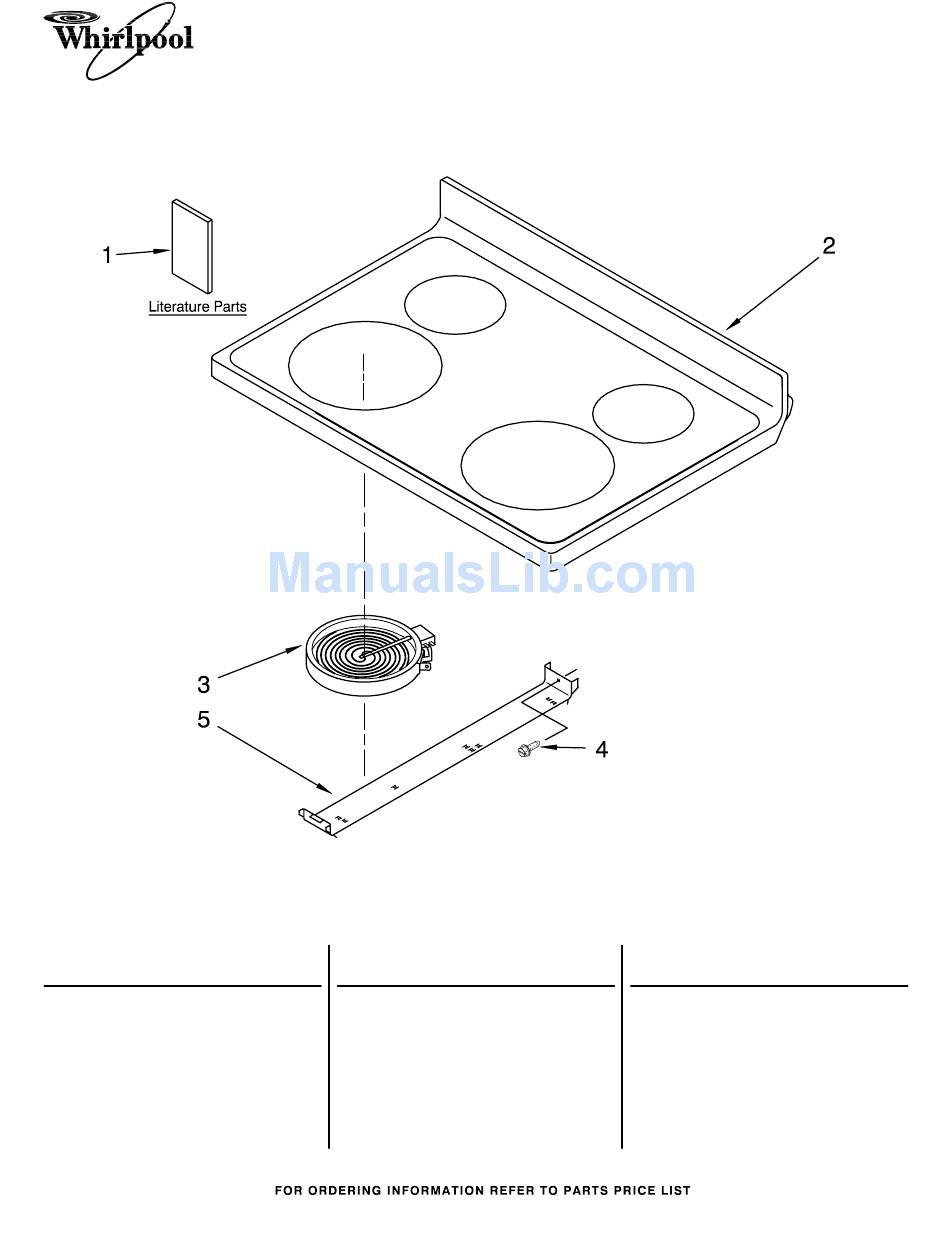

COOKTOP PARTS
For Models: RF262LXSW1, RF262LXSQ1, RF262LXST1, RF262LXSB1
(White) (Designer White)(Designer Biscuit) (Black)
Illus.
No.
2
9763324 White
9763325 Biscuit
9763326 Black
Part
No.
DESCRIPTION
Cooktop
1
30" ELECTRIC FREESTANDING
SELF CLEAN RANGE
Illus.
Part
No.
No.
DESCRIPTION
3
Element, Surface
8273992 2500 W − LF/RF
8273994 1200 W − LR/RR
4
3196169 Screw
5
8272791 Bracket, Element
Part No. 8188462
Advertisement
Related Manuals for Whirlpool RF262LXSB1
Summary of Contents for Whirlpool RF262LXSB1
- Page 1 For Models: RF262LXSW1, RF262LXSQ1, RF262LXST1, RF262LXSB1 Illus. Part DESCRIPTION Literature 9762996 Instructions Installations Template, Anti−Tip 9757142 English/Spanish 9757143 English/French 9763001 Owners Manual 9762972 Tech Sheet 9762761 Safer Cooking Tips 12−06 Litho in U.S.A. (lwp) COOKTOP PARTS (White) (Designer White)(Designer Biscuit) (Black) Illus.
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: RF262LXSW1, RF262LXSQ1, RF262LXST1, RF262LXSB1 Illus. Part DESCRIPTION Endcap W10009040 White Left Hand W10009050 White Right Hand W10009060 Biscuit Left Hand W10009070 Biscuit Right Hand W10009080 Black Left Hand W10009090 Black Right Hand 9757609 Nameplate Panel, Control... -
Page 3: Chassis Parts
CHASSIS PARTS For Models: RF262LXSW1, RF262LXSQ1, RF262LXST1, RF262LXSB1 (White) (Designer White)(Designer Biscuit) (Black) 8188462... - Page 4 CHASSIS PARTS For Models: RF262LXSW1, RF262LXSQ1, RF262LXST1, RF262LXSB1 (White) (Designer White)(Designer Biscuit) (Black) Illus. Part DESCRIPTION 9760407 Brkt − Mounting 8273905 Support, Corner LR Panel, Side (2) 8053830 White 8272519 Biscuit 8053832 Black 4 W10010350 Seal, Oven Flange 8522416 Seal, Oven Door...
- Page 5 DRAWER & BROILER PARTS For Models: RF262LXSW1, RF262LXSQ1, RF262LXST1, RF262LXSB1 8188462 (White) (Designer White)(Designer Biscuit) (Black) Illus. Part DESCRIPTION 3195710 Rack, Oven (2) 9761030 Drawer, Storage 9758200 Bracket, Drawer(2) Rivet, Push (2) 3196813 Black 3196814 White 3196815 Almond Panel, Drawer Frnt...
-
Page 6: Door Parts
For Models: RF262LXSW1, RF262LXSQ1, RF262LXST1, RF262LXSB1 Illus. Part DESCRIPTION Trim, Top 9762391 Black 9761975 White 9761976 Biscuit 3196164 Screw Handle, Door 9761983 Black 9761982 White 9761984 Biscuit 9761344 Liner, Door 9758162 Glass, Inner (2) 3186289 Frame, Glass 7 W10031790 Screw... - Page 7 OPTIONAL PARTS (NOT INCLUDED) For Models: RF262LXSW1, RF262LXSQ1, RF262LXST1, RF262LXSB1 Illus. Part DESCRIPTION Following Parts Not Illustrated SPLICING WIRES−−25FT. LENGTH 242828 Wire, Black 12 Ga. 150 c 242821 Wire, Blue 14 Ga. 150 c 242822 Wire, Brown 14 Ga. 150 c 242830 Wire, Brown 14 Ga.
