Whirlpool RF212PXSQ4 Parts List

Whirlpool RF212PXSQ4 Parts List

30" electric freestanding standard clean range
Hide thumbs Also See for RF212PXSQ4:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual See also: Instructions for Using
5−08 Litho in U.S.A. (mo)(bay)

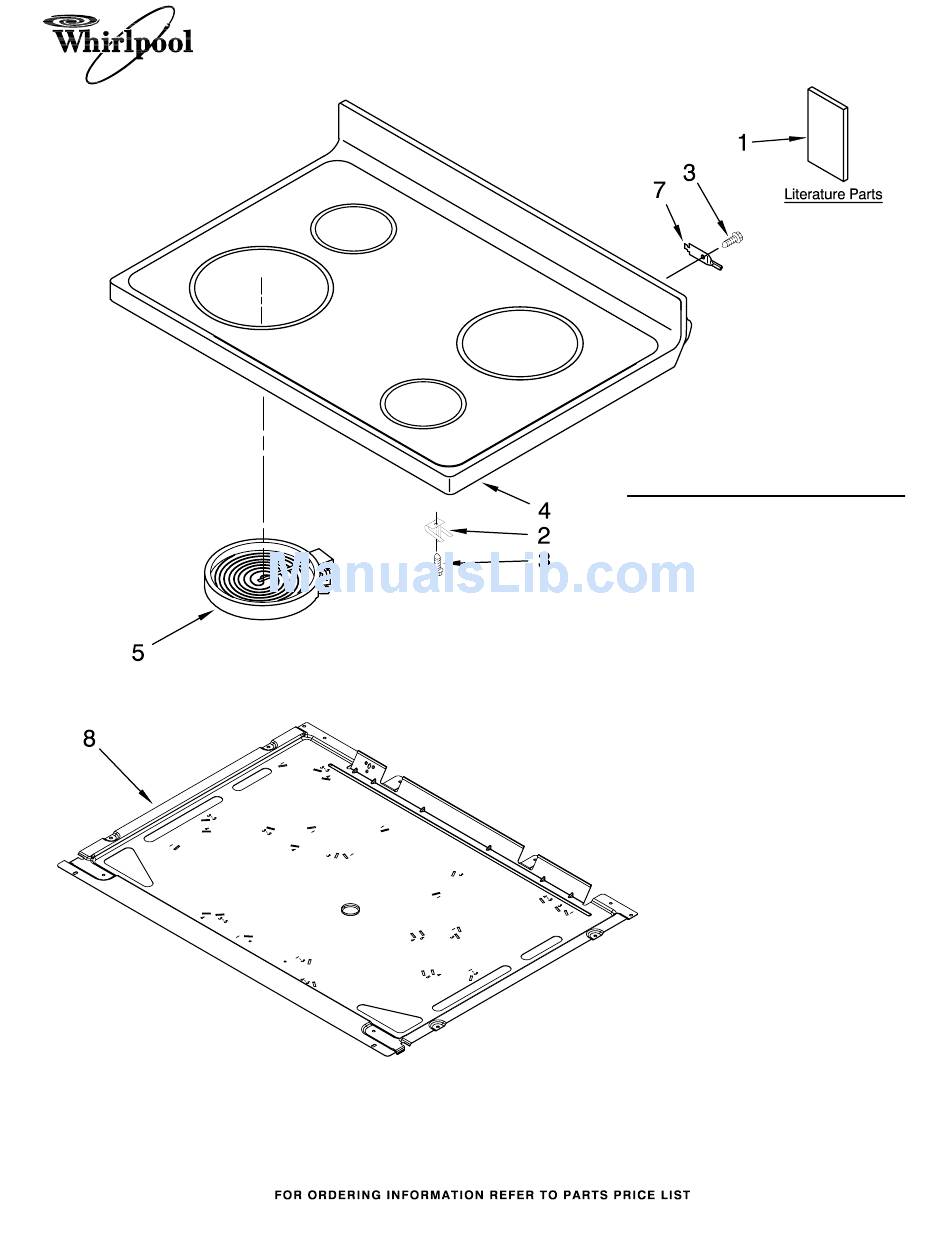

COOKTOP PARTS
For Model: RF212PXSQ4
(Designer White)
1
30" ELECTRIC FREESTANDING
STANDARD CLEAN RANGE
Illus.
Part
No.
No.
DESCRIPTION
1
Literature
W10196159 Instructions
Installations
Template, Anti−Tip
9757142 English/Spanish
9757143 English/French
W10200356 Owners Manual
W10133888 Tech Sheet
9762761 Safer Cooking Tips
2 W10162042 Spring, Element
3
3196170 Screw
4
Cooktop
W10162021 White/White
5
Element, Surface
8523695 2000 W − LF
8523697 1500 W − LR
8523695 2000 W − RR
8523697 1500 W − RF
7
3195060 Pin, Hinge
8 W10170526 Pan, Element
Part No. W10209644 Rev. A
