Illus.
Part
No.
No.
DESCRIPTION
1
Literature
9762996 Instructions
Installations
Template, Anti−Tip
9757142 English/Spanish
9757143 English/French
9763001 Owners Manual
W10115596 Tech Sheet
9762761 Safer Cooking Tips
2−07 Litho in U.S.A. (skr)

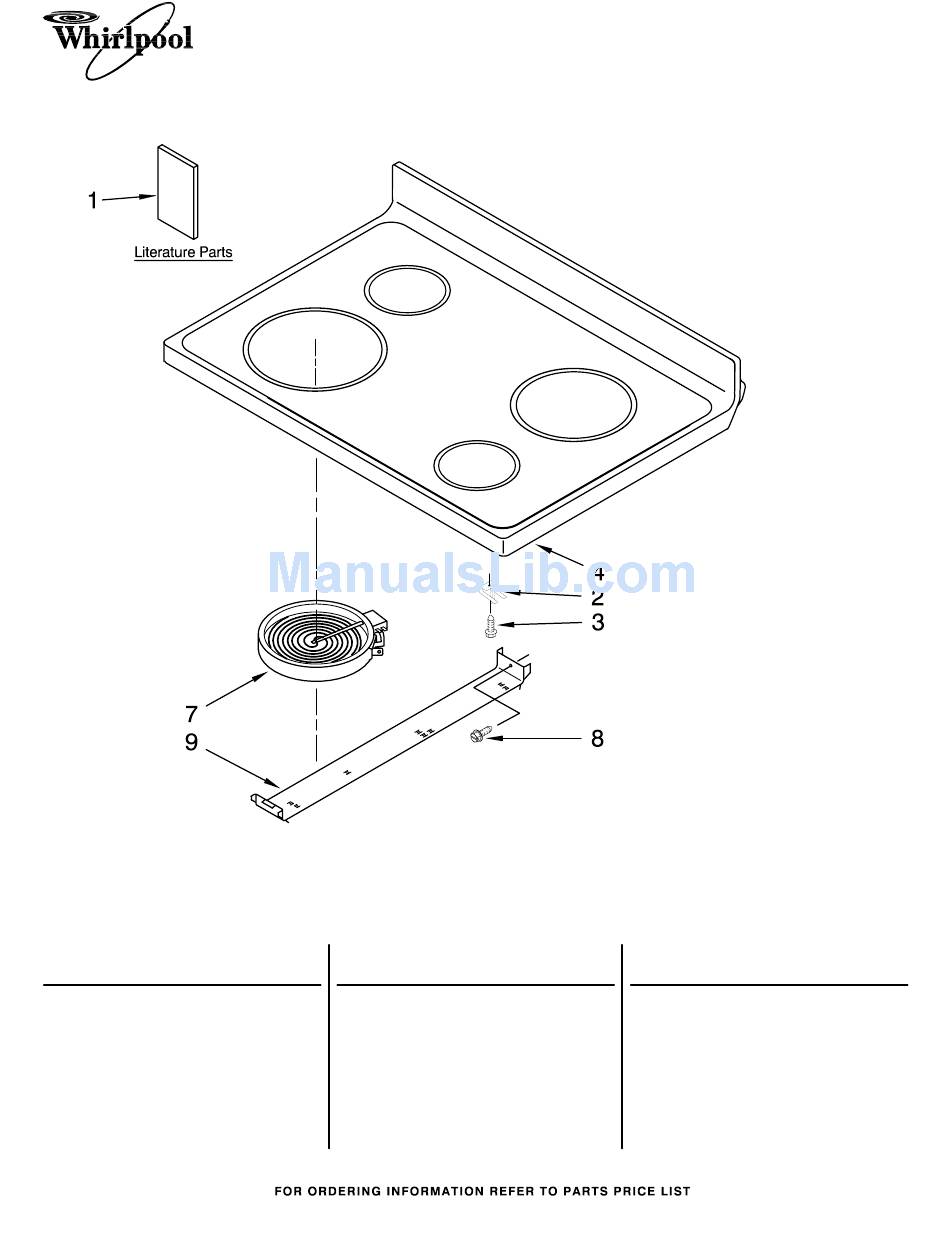

COOKTOP PARTS
For Models: RF212PXSQ1
(Designer White)
Illus.
Part
No.
No.
DESCRIPTION
2 W10035930 Spring, Locator
3
3196170 Screw
4
Cooktop
9763321 White/White
1
30" ELECTRIC FREESTANDING
STANDARD CLEAN RANGE
Illus.
Part
No.
No.
DESCRIPTION
7
Element, Surface
8523695 2000 W − LF
8523697 1500 W − LR
8523695 2000 W − RR
8523697 1500 W − RF
8
3196169 Screw
9
3196454 Bracket, Element
Part No. W10122970 Rev. A
Advertisement
Related Manuals for Whirlpool RF212PXSQ1
Summary of Contents for Whirlpool RF212PXSQ1
- Page 1 Template, Anti−Tip 9757142 English/Spanish 9757143 English/French 9763001 Owners Manual W10115596 Tech Sheet 9762761 Safer Cooking Tips 2−07 Litho in U.S.A. (skr) COOKTOP PARTS For Models: RF212PXSQ1 (Designer White) Illus. Part DESCRIPTION 2 W10035930 Spring, Locator 3196170 Screw Cooktop 9763321 White/White 30"...
- Page 2 9757609 Nameplate Panel, Console 9762018 White Switch, Infinite 3148953 Left Front 3148952 Left Rear 3148953 Right Rear 3148952 Right Front For Models: RF212PXSQ1 (Designer White) Illus. Part DESCRIPTION Light, Indicator 8523265 Surface Unit (2) 3196068 Lens, Light (3) Knob, Infinite (4)
- Page 3 CHASSIS PARTS For Models: RF212PXSQ1 (Designer White) W10122970...
- Page 4 CHASSIS PARTS For Models: RF212PXSQ1 (Designer White) Illus. Part DESCRIPTION 9760407 Brkt − Mounting 8273905 Support, Corner LR Panel, Side (2) 8053830 White−Textured 112432 Nut 3186152 Seal, Oven Door 9757340 Element, Broil 9758541 Element, Bake 9757239 Rod − Dr Switch...
- Page 5 DRAWER & BROILER PARTS W10122970 For Models: RF212PXSQ1 (Designer White) Illus. Part DESCRIPTION 3195710 Rack, Oven (2) 9761030 Drawer, Storage 9758200 Bracket, Drawer(2) Rivet, Push (2) 3196814 White Panel, Drawer Frnt 8053339 White 8053334 Glide, Drawer (2) 3196168 Screw...
-
Page 6: Door Parts
DESCRIPTION Trim, Top 9761975 White 3196164 Screw Handle, Door 9761982 White 9761340 Liner, Door 5 W10031790 Screw DOOR PARTS For Models: RF212PXSQ1 (Designer White) Illus. Part DESCRIPTION 9758163 Window, Inner 9761500 Retainer, Insul. 9761494 Hinge, Door (2) Glass, Outer 9762476 White... - Page 7 242827 Wire, Yellow 14 Ga. 150 c REFINISHING MATERIAL 799832 Kit, Porcelain Repair (White) 242756 Touch−Up Self−Clean(1/2 Pt) 261582 Grease W10122970 For Models: RF212PXSQ1 (Designer White) Illus. Part DESCRIPTION INSULATION 261514 Insulation, Fiberglass (1−1/2" x 24" x 120") 240132 Insulation, Fiberglass (2−1/2"...
