Whirlpool RF111PXSQ2 Parts Manual

Whirlpool RF111PXSQ2 Parts Manual

30" electric freestanding standard clean range
Hide thumbs Also See for RF111PXSQ2:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual See also: Use and Care Manual
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10141166 Instructions,
Installation
Anti−Tip Template
9757142 English/Spanish
9757143 English/French
W10162203 Owners Manual
W10114281 Sheet, Tech
9762761 Safer Cooking Tips
1−08 Litho in U.S.A. (mo)

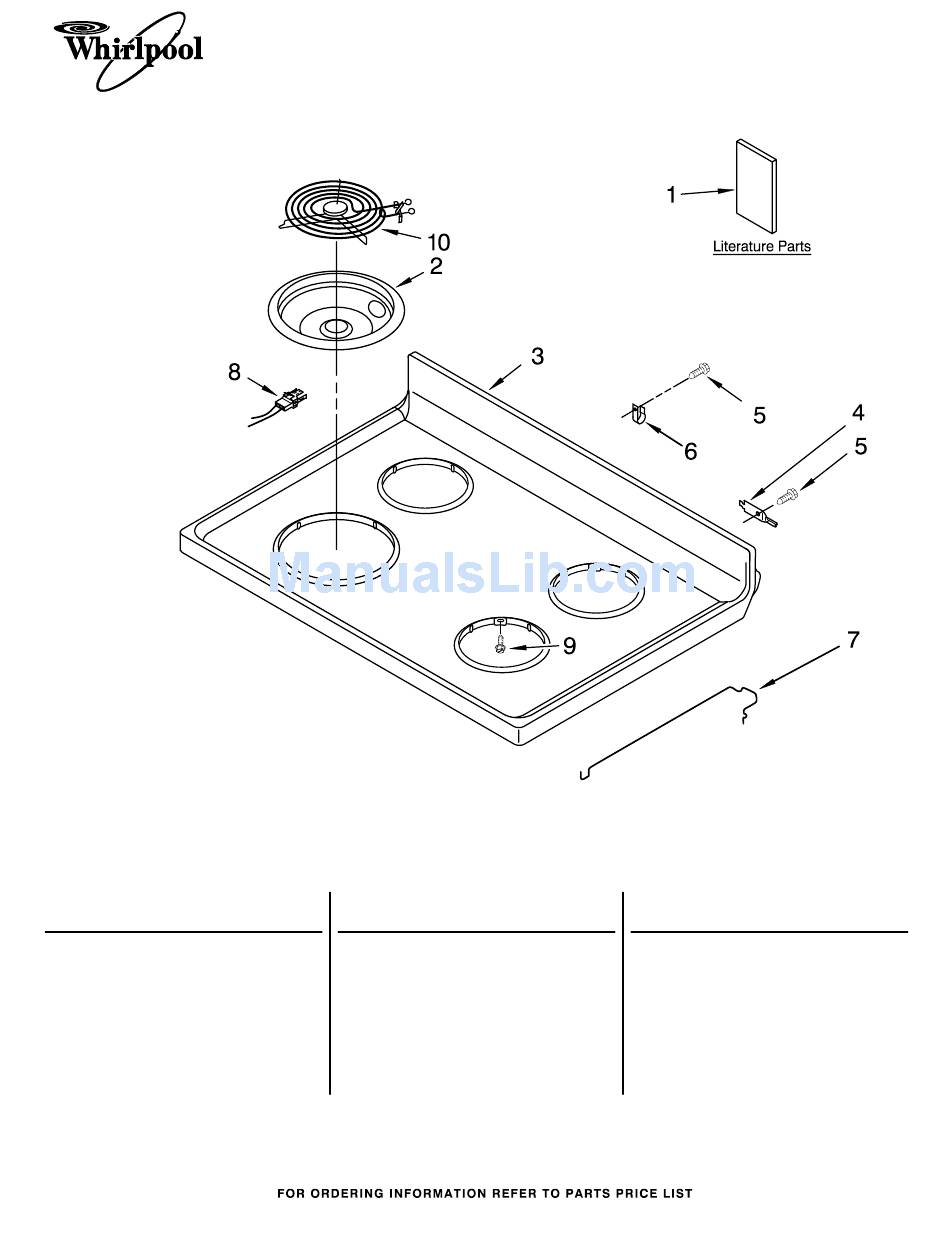

COOKTOP PARTS
FOR MODELS: RF111PXSQ2, RF111PXSW2
(Designer White) (White/Black)
Illus.
Part
No.
No.
DESCRIPTION
2
Bowl, Drip
3195208 6" Chrome (3)
3195209 8" Chrome (1)
3
Cooktop
3186235 White
4
3195060 Hinge, Cooktop (2)
5
3196178 Screw
6
308605 Strain Relief
1
30" ELECTRIC FREESTANDING
STANDARD CLEAN RANGE
Illus.
Part
No.
No.
DESCRIPTION
7
3195812 Rod, Support (2)
8
814399 Receptacle, Elmnt
9
3196154 Screw
10
Element, Surface
(Includes #8)
9761348 6" (3)
9761346 8" (1)
Part No. W10185581 Rev. A
