Use and Care Manual
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
9762996 Instructions,
Installation
9763000 Owners Manual
9762974 Sheet, Tech
9762761 Safer Cooking Tips
Template,Anti−Tip
9757142 English/Spanish
9757143 English/French
2−06 Litho in U.S.A. (lwp)

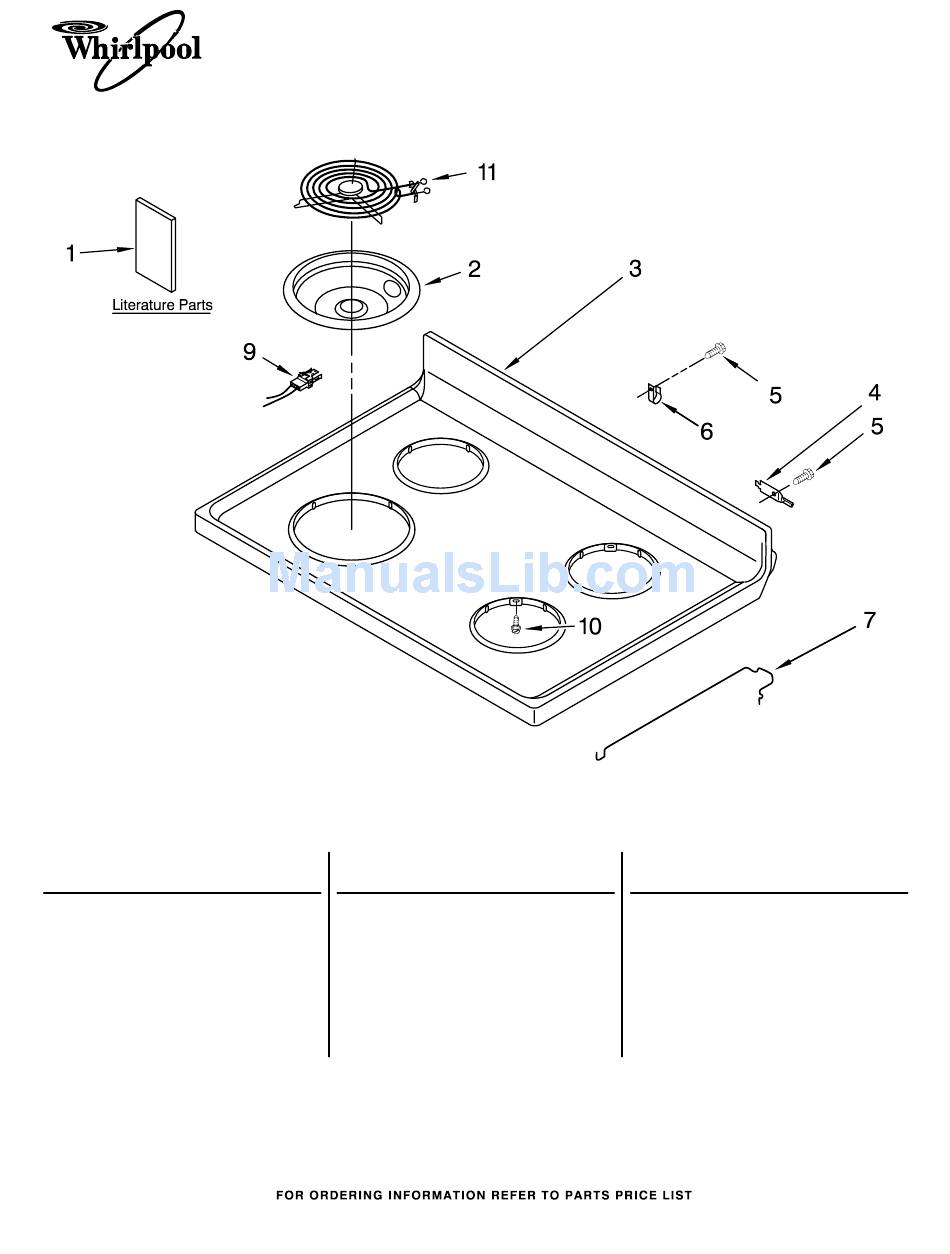

COOKTOP PARTS
For Model: RF110AXSQ0, RF110AXST0
(Designer White)(Designer Biscuit)
Illus.
Part
No.
No.
DESCRIPTION
2
Bowl, Drip
3195208 6" Chrome (3)
3195209 8" Chrome (1)
3
Cooktop
3186235 White
8273508 Biscuit
4
3195060 Hinge, Cooktop (2)
5
3196178 Screw
1
30" ELECTRIC FREESTANDING
STANDARD CLEAN RANGE
Illus.
Part
No.
No.
DESCRIPTION
6
308605 Strain Relief
7
3195812 Rod, Support (2)
9
814399 Receptacle, Elmnt
10
3196154 Screw
11
Element, Surface
9761348 6" (3)
9761346 8" (1)
Part No. 8188341
Advertisement
Related Manuals for Whirlpool RF110AXSQ0
Summary of Contents for Whirlpool RF110AXSQ0
- Page 1 9763000 Owners Manual 9762974 Sheet, Tech 9762761 Safer Cooking Tips Template,Anti−Tip 9757142 English/Spanish 9757143 English/French 2−06 Litho in U.S.A. (lwp) COOKTOP PARTS For Model: RF110AXSQ0, RF110AXST0 (Designer White)(Designer Biscuit) Illus. Part DESCRIPTION Bowl, Drip 3195208 6" Chrome (3) 3195209 8" Chrome (1)
-
Page 2: Control Panel Parts
W10009040 Left Hand White W10009070 Right Hand Biscuit W10009050 Right Hand White 9757609 Nameplate Panel, Backguard 9762011 Biscuit 9762010 White For Model: RF110AXSQ0, RF110AXST0 (Designer White)(Designer Biscuit) Illus. Part DESCRIPTION Switch, Infinite 3148953 Use W/ 8" Element 3148951 Use W/ 6" Element 9762215 Cntrl−Elec ROC60... -
Page 3: Chassis Parts
CHASSIS PARTS For Model: RF110AXSQ0, RF110AXST0 (Designer White)(Designer Biscuit) 8188341... - Page 4 CHASSIS PARTS For Model: RF110AXSQ0, RF110AXST0 (Designer White)(Designer Biscuit) Illus. Part DESCRIPTION 3169143 Vent Tube 3186144 Box, Burner Panel, Side (2) 8053830 White−Textured 8272519 Biscuit−Textured 9757158 Thermostat 3186152 Seal, Oven Door 9757340 Element, Broil 9758541 Element, Bake 8 W10031780 Screw...
- Page 5 DRAWER & BROILER PARTS 8188341 For Model: RF110AXSQ0, RF110AXST0 (Designer White)(Designer Biscuit) Illus. Part DESCRIPTION 3195710 Rack, Oven (2) 9761031 Drawer, Storage 9758200 Bracket, Drawer(2) Rivet, Push (2) 3196814 White 3196815 Almond Panel, Drawer Frnt 8053339 White 8272501 Biscuit 8053334 Glide, Drawer (2)
-
Page 6: Door Parts
Part DESCRIPTION 1 W10031790 Screw 9761342 Liner 8272618 Insulation, Door 5 W10031780 Screw 9761495 Hinge (2) 3196163 Screw DOOR PARTS For Model: RF110AXSQ0, RF110AXST0 (Designer White)(Designer Biscuit) Illus. Part DESCRIPTION Panel, Steel 3195560 White 8273522 Biscuit Spacer, Handle 3196143 White... -
Page 7: Optional Parts
242825 Wire, Red 14 Ga. 150 c 242831 Wire, Red 14 Ga. 200 c 242827 Wire, Yellow 14 Ga. 150 c 8188341 OPTIONAL PARTS For Model: RF110AXSQ0, RF110AXST0 (Designer White)(Designer Biscuit) Illus. Part DESCRIPTION REFINISHING MATERIAL 799832 Kit, Porcelain Repair (White) 242756 Touch−Up...
