Summary of Contents for Whirlpool RE953PXP

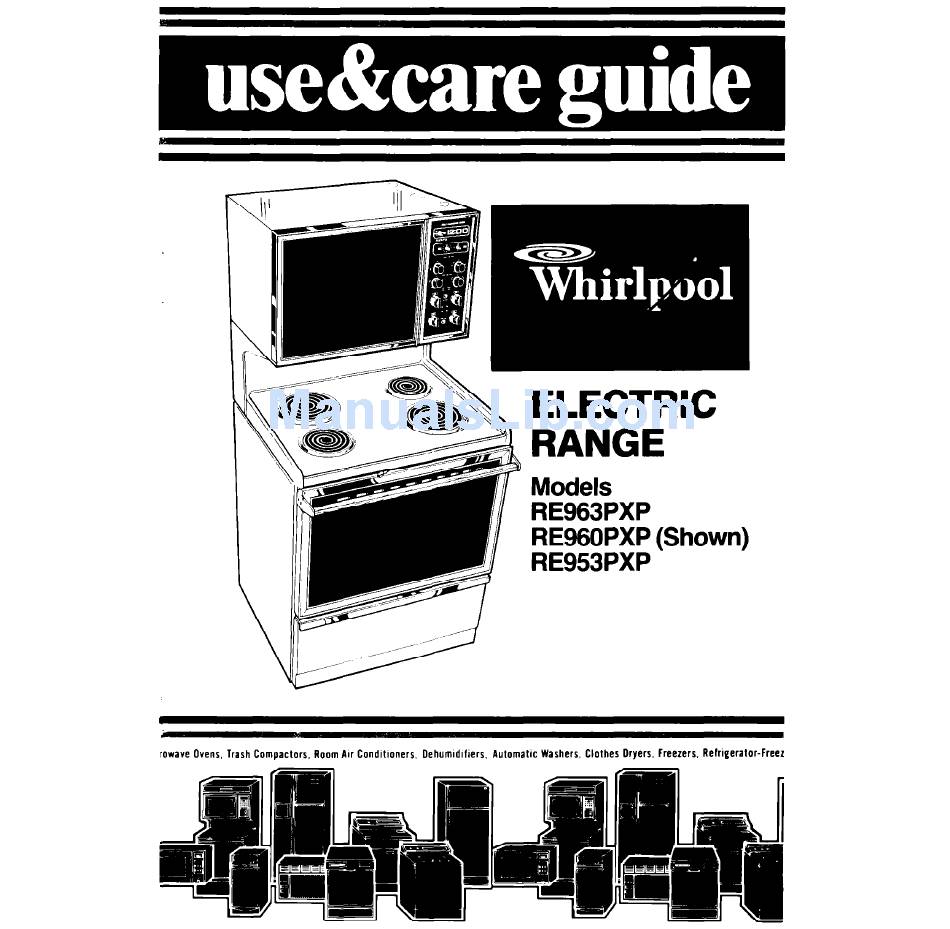

- Page 1 lowave Ovens, Trash Compactors. Room AH Conditloners, Oehum~d~fiers. Automatic Washers, Clothes Dryers. Freezers. Refrigerator-Free2...
-
Page 2: Table Of Contents
Using the Oven Controls Baking. Broiling Using the Automatic MEALTIMER* Clock OvenVent Storage Drawer 01984 Whirlpool Before you use your range Read thls Use 8 Care Guide and The Cooking Guide for important Information. You are personally responsible for: Reading... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS allow children to use or play with any part of the range, or leave them unattended near it. They could be burned or iniured. DO NOT store things children might want above the range. Children could be burned injured while climbing on it. -
Page 4: Parts And Features
Parts and features Models RE963PXP, RE960PXP and RE953PXP CONTINUOUS- CLEANING OVEN PLUG-IN SELF-CLEAN MODEL AND SERIAL NUMBER PLATE SELF-CLEANING CONTINUOUS- CLEANING OVEN (SILICONE Model REOSBPXP)- FIBERGLASS HEAT SEAL H REMOVABLE STORAGE DRAWER LITERATURE PAC / (not shown) CONTROL PANEL OVEN VENT... -
Page 5: Using Your Range
CLOCK AND MINUTE TIMER CONTROL KNOW MINUTE TIMER - START TIME CONTROL KNOB KzEN < LOWER OVEN SIGNAL LIGHT- LOWER OVEN SELECTOR SELF-CLEAN LOCK LIGHT LEFT REAR CONTROL KNOB SURFACE UNIT SIGNAL LIGHTS LEFT FRONT CONTROL KNOB Using the surface units PUSH IN kmto reltlng. -
Page 6: Optional Canning Kit
If you plan to use the cooktop for canning, of a Canning Kit. Order the kit from your Whirlpool Company. See the “Cooklng Guide” for Important canning informatfon. as a gulde. For best results,... -
Page 7: Setting The Clock
Setting the Clock Push in and turn the Minute Timer Knob to set the Clock. Push In Minute Timer Knob and turn clockwlse until clock shows the right time of day. Using the Minute Timer The Minute Timer does not start or stop the oven. It works like a kitchen timer. Set it in minutes up to an hour. -
Page 8: Using The Oven Controls
Using the Oven Controls Baking in Either Oven Position the rack(s) properly before turning on the oven. To change rack poslfton, lift rack at tront and pull out. 2. Set Oven Selector to BAKE. Oven 4. Put food in the oven. Note: racks, walls and door will be hot. -
Page 9: Adjusting The Oven Temperature
Adjusting the Oven Temperature Does either oven seem hotter or colder of your old oven may have shifted gradually Your new ovens are properly adjusted when compared to your old oven, the new design If after using the ovens for a period of time you are not satisfied with the tem- perature settings, they can be adjusted... -
Page 10: Custom Broil
Broiling In Either Oven 1. Position the rack before turning the oven on. See broil chart in the “Cooking Guide” or a reliable cookbook for recommended rack. positions. 3. Close the door to the Broil Stop position, (open about 4 inches, 10.2 cm). -
Page 11: Using The Automatic
Using the Automatic MEALTIMER” The automatic MEALTIMER’ Clock is designed times you want, even when you are not around. Automatic baking is ideal for foods which do not require a preheated Do not use the automatic as meats and casseroles. etc...undercooking will result. -
Page 12: Ovenvent
To start baklng now and stop automutically: Position rack@) properly, and place 2. Make sure the clock is set to the right time of day. 3. p;Q$t;d turn the Stop Time Knob 4. Set the Oven Selector on TIMED. 5. Set the Oven Temperature Control on the baking Atter baking is done or to stop the oven betore the preset time, the Oven Selector... -
Page 13: Storage Drawer
The Storage Drawer The storage drawer is for storing pots and pans. Never keep anything drawer that could burn or melt. Use care when handling the dmwer. Removing the storage drawer Pull drawer straight out to the first stop. Litt front and pull out to the second stop. -
Page 14: Optional Rotisserie
Optional Rotisserie If you would like a rotisserie for your lower oven, you can order a kit (Part No. RCK81-242985) from your Whirlpool Dealer. The kit includes Instructlons. Caring for your range Control Panel NOTE: 1. Pull knobs straight off. -
Page 15: Surface Units And Reflector Bowls
Surface Units and Reflector Bowls 3. Pull the surface unit straight away from the receptacle. Replacing 2. Lift the edge of the unit opposite the receptacle, just enough clear the reflector bowl (and trim ring if you have porcelain-enamel reflector bowls). -
Page 16: Lift-Up Cooktop
3. Hold the surface unit as level as possible with the terminal just started into the receptacle. CAUTION: Refieotor bowl, nflect surface unb. They also help oatoh spills. When they are kept oiean, they reflect heatbetter and look new longer. If a ohrome refledtor bowl or trim ring gets dlaoolomd, ubnsib may not be ftat enough or may be too large for the surfaoe unit. -
Page 17: Lower Oven Door
The Lower Oven Door (Continuous-Cleaning Removina the lower oven door will hela make it easier to Clean the lower oven. Open me door to me first stop positton. 2. Hold the door at both sides and lift straight up. 3. To replace, fit the bottom corners of the door over the ends of the hinges. -
Page 18: Continuous-Cleaning Oven
Using foil on the oven bottom is recommended it must be used properly. spills from pies and casseroles. heavy-dutyl8-inch (45 cm) aluminum from your Whirlpool Appliance dealer. slightly Lift the cool bake element to lift the feet off the oven bottom. - Page 19 Cleaning Tlps The oven window and racks are not coated. 2. The oven door does not get as hot as me walls. Some hand cleaning needed. 3. If you do more broiling than baking, 4. Use aluminum foil on me oven bottom according not burn away and may stain the bottom.
-
Page 20: Self-Cleaning Oven
The Self-Cleaning Oven cycle uses very hlgh heat The self-cleaning make sure you understand exactly Start Before You Clean the shaded areas by hand. They do not get hot enough dur- ing the Self-Clean cycle for soil to burn awav Use hot water and .’... - Page 21 Set the Oven Selector and the Oven Temperature Control on CLEAN. 3. Push in and turn the Stop Time clockwlse Knob 2 or 3 hours. Use 2 hours for light soil. Use 3 hours or more for moderate to heavy soil.
- Page 22 Special Keep the kitchen well ventilated during the cleaning cycle to help get rid of normal heat, odors and smoke. If the cleaning cycle doesn’t get the oven as clean as you ex- pected, the cycle may not have been set long enough or you may not have prepared the oven...
-
Page 23: Cleaning Chart
How It Works During the self-cleaning cycle, the oven gets much hotter than it does for baking or broiling...approximately 875°F (468%). This heat breaks up grease burns if off. The graph shows approximatetemperatures cycle for 3 hours. SELF-CLEANING CYCLE - THREE HOUR SEiTlNG (Approximate 1 OOO’F BOOT... - Page 24 Cleanlng Oven soapy scrubbing pad. Heavy-duty aluminum or order a foil kit (Part No. 241430) from your Whirlpool dealer or TECH-CARE” ice company. Most fat spatters on the Continuous-Cleaning porcelain-enamel to a presentably baking or roasting operations. Self-Cleaning For areas...
-
Page 25: Using And Replacing The Light Bulbs
Using and Replacing the Light Bulbs The Cooktop light Top light switch on the control panel the upper oven ON and OFF. Push and hold the button for a few seconds letting go to turn it ON Push it again to turn OFF the light. -
Page 26: The Oven Lights
The Oven lights Both oven lights will come on when you open the lower oven door. To turn both lights on when the lower oven door is closed, push the control panel. Push it again and/or close the lower oven door to turn off the light. If you have a Self-Cleaning Oven, remove... - Page 27 Cooking Guide for more infor- mation on cooking problems how to solve them. 2. If you need assistance?.. Call Whirlpool COOL-LINER service assistance telephone number. Dial free from: Continental U.S. . . (800) 253-1301 Michigan ..(800) 632-2243 Alaska &...
- Page 28 Maklng your world a llttle easier. Printed in U.S.A. Part No. 313295 01984 Whirlpool Corporation...
