Instructions & installation manual
HAVERLAND
APP
Voice Control
NOT SUPPLIED
SMARTBOX
ECODRY_GPS_V1_15MAY2019_MISA_ESUKFP2019

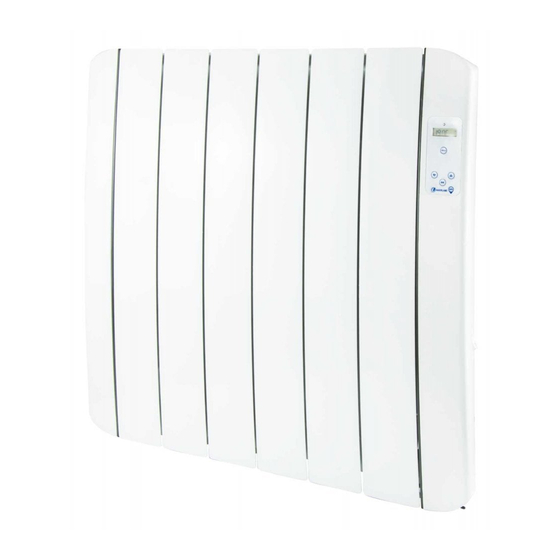

ECO-DRY GPS
Dry Stone technology
works with the
IF YOU HAVE ANY DIFFICULTY WITH
THIS PRODUCT, INSTEAD OF TAKING
IT BACK TO THE RETAILER, TRY:
1. The instruction booklet
2. Refer to haverland@haverland.co.uk
3. Or call our helpline:
0330 365 1940
UK:
Google is a trademark of Google LLC.
Advertisement
Table of Contents
Related Manuals for Haverland ECO-DRY GPS Series
Summary of Contents for Haverland ECO-DRY GPS Series
- Page 1 IF YOU HAVE ANY DIFFICULTY WITH THIS PRODUCT, INSTEAD OF TAKING IT BACK TO THE RETAILER, TRY: 1. The instruction booklet 2. Refer to haverland@haverland.co.uk 3. Or call our helpline: NOT SUPPLIED 0330 365 1940 SMARTBOX ECODRY_GPS_V1_15MAY2019_MISA_ESUKFP2019...
- Page 3 INDEX PAGE 1. GENERAL WARNINGS 2. INSTALLATION 3. OPERATION 3.1 CONTROL PANEL 3.2 START - FIRST CONNECTION 3.3 OPERATING MODES 3.4 OFF MODE 3.5 AUTO MODE (PRO) 3.5.1 TIME PROGRAMMING 3.5.2 SETTING THE TIME 3.5.3 WEEKLY PROGRAMMING 3.5.4 HOW DO I CONFIGURE PRE-SET TEMPERATURES? 3.6 MANUAL MODE 3.7 LOCKING THE KEYPAD 3.8 BOOST FUNCTION - 2 HOUR FUNCTION...
- Page 4 1. CAUTION • Please read these instructions carefully. • To disconnect mains power from the radiator remove the plug from the wall socket, but never pull on the cable. • Do not leave the mains cable in contact with the radiator when it is switched on.
- Page 5 1. CAUTION • The radiator has a keyboard blockage option to prevent children from changing the programming. • This unit is not designed to be handled by persons (including children) with physical, sensorial or mental handicaps, with little experience or knowledge unless they are under the supervision of an adult responsible for their safety with the instructions on its use.
-
Page 6: Instructions For Installation
2. INSTRUCTIONS FOR INSTALLATION • Before the first switch on for the coming winter or when the heater has not been used for several days, the unit should be cleaned (follow the steps given in the “maintenance section”.This cleaning operation will avoid burning the accumulated dust and other remains. - Page 7 2. INSTRUCTIONS FOR INSTALLATION Cardboard template Place the screw but don’t screw it fully. (M. 6 x 40 mm) 4 Screws 5.5 x 50 mm Place Slide the the radiator radiator up, Place over top tang and lower gently into position ECODRY GPS...
- Page 8 2. INSTRUCTIONS FOR INSTALLATION Plug in 3 pin 13 amp IMPORTANT: plug Screw down FULLY to lock the radiator Press ON / OFF switch located at the right rear part of the unit. INFORMATION “A” (mm) “B” (mm) “C” (mm) 1200 1500 1800...
-
Page 9: Operation
3. OPERATION 3.1 CONTROL PANEL 1. Change mode / OK buttons 2. Decrease button 3. Configure / Programme button 4. Screen 5.“In operation” indicator LED 6. Increase button Screen Icons Day of the week Auto Temp/Time Manual Associated radiator Stand-by Temperatures Pilot wire ITCS Function... -
Page 10: Operating Modes
3. OPERATION 3.3 OPERATING MODES The device has 3 operating modes: OFF, AUTO (PRO) or MANUAL. By pressing the button successively, the transmitter changes from “OFF” mode to “AUTO mode” (PRO) and to “MANUAL” mode. Successively press the Mode button to change the operating mode. -
Page 11: Time Programming
3. OPERATION 3.5 AUTO MODE (PRO) Press the button until appear on screen. The pre-set temperature will change automatically according to the bespoke programming, based on 3 pre-set temperatures (Comfort, Eco, Anti-freeze) or the OFF status. In Auto mode, the temperature can be temporarily raised or lowered. This temporary modification is maintained until the next programming cycle or until midnight. -
Page 12: Setting The Clock
Then, set the hour and minutes in the same way. Press to exit the “Setting the clock” menu. If the radiator is linked with a HAVERLAND SMARTBOX (not supplied), the “time” will automatically change via the internet (see point 3.13 GEOLOCATION - CONTROL “VIA APP”). - Page 13 3. OPERATION OPTION 4: WEEKEND PROGRAMMING. IDEAL FOR SECOND HOMES. The programme is automatically set to OFF from Monday to Thursday, and then the same programme is set for Friday, Saturday and Sunday ACCIÓN PANTALLA button for 3 seconds. The day will Press the flash.
- Page 14 3. OPERATION ACTION SCREEN Press the keys to progress or go back to the next hour. By holding the , buttons, the hours change quickly without modifying the programming. Successively press the key to choose the desired mode for hour 1:00 of day 1: Anti-freeze , economy , comfort...
- Page 15 3. OPERATION 3.5.4 HOW DO I CHANGE THE PRE-SET TEMPERATURES? In AUTO mode (PRO), the pre-set temperatures (comfort, economy and anti-freeze) will automatically change according to the programming established by the user, who will assign of the four possibilities to each hour: Anti-freeze , economy , comfort...
- Page 16 3. OPERATION The background colour of the screen will change when the pre-set temperature is modified or changed, indicating the selected temperature range to the user by showing: • if the selected temperature is over 24ºC Yellow • if it is higher than 19º and up to 24ºC Green •...
- Page 17 3. OPERATION 3.6 MANUAL MODE In manual mode, the radiator works like a room thermostat. ACTION SCREEN Choose the manual mode by pressing the key until the “hand” symboL appears on screen. The temperature shown on screen is the temperature that was previously selected in manual mode.
-
Page 18: Locking The Keypad
3. OPERATION 3.7 LOCKING THE KEYPAD Simultaneously press the buttons LocH until the word appears on screen. The same operation must be performed to unlock the keypad. 3 seconds “LocH” will appear on screen if the keypad is locked. 3.8 BOOST FUNCTION - 2 HOUR FUNCTION This function puts the device into operation at full power for two hours, regardless of the operation mode that is selected. -
Page 19: Intelligent Itcs Function
3. OPERATION 3.9 “OPEN WINDOWS” SAVE FUNCTION This function activates when there is a sudden drop in the room’s temperature. By activating this function, the symbol appears on screen. The device will disconnect, preventing an unnecessary consumption of energy. When closing the window, the radiator will detect a rise in temperature and this function will deactivate. -
Page 20: Advanced Functions
3. OPERATION 3.11 ADVANCED FUNCTIONS This radiator incorporates the following functions: Function Setting This allows you to change from degrees Adjustment of ºC or ºF Celsius to degrees Fahrenheit. This function is for users with knowledge Adjustment of the control type in electronics. - Page 21 You must set the time and day by following point 3.5.2 SETTING THE CLOCK. All other programmed parameters will remain in the memory If the radiator is connected to a Haverland Smartbox (not supplied), this “Pr:Hd” message will not appear, as the time and day will be recovered via the Internet.
- Page 22 To control all functions of your radiators, through your smartphone or tablet and via our free Haverland app, you will need a Haverland Smartbox (not supplied with the device). Our Haverland Smartbox connects your radiators to the Internet using the property’s router.
-
Page 23: Maintenance
Smartbox for 3 seconds (see image). 3 seconds 3.13.2 GEOLOCATION Once you have installed the Smartbox and downloaded our Haverland app, you may activate the “geolocation” function via the app. Once activated, if you are AWAY away from home and activate the... - Page 24 24 months as from the purchase date shown on the invoice. HAVERLAND guarantees against material, design or manufacturing faults at the moment of its original acquisition for 2 years. The electronic component and paintwork / finish for 3 years and 10 years for the aluminium body (exclude accidental damage, transport, and misuse).
- Page 26 Models ECO-DRY600 ECO-DRY900 ECO-DRY1200 ECO-DRY1500 ECO-DRY1800 Heat output Nominal heat output (kW) Maximum continuous heat output (kW) Auxiliary electricity consumption At nominal heat output (kW) At minimum heat output (kW) In standby mode (kW) <0,001 <0,001. <0,001. <0,001 <0,001 Type of heat room temperature control Electronic room temperature control plus week timer Other control options - Room temperature control, with open window detection...
