30" electric drop-in range self cleaning oven
Hide thumbs Also See for RS696PXGB7:

Advertisement

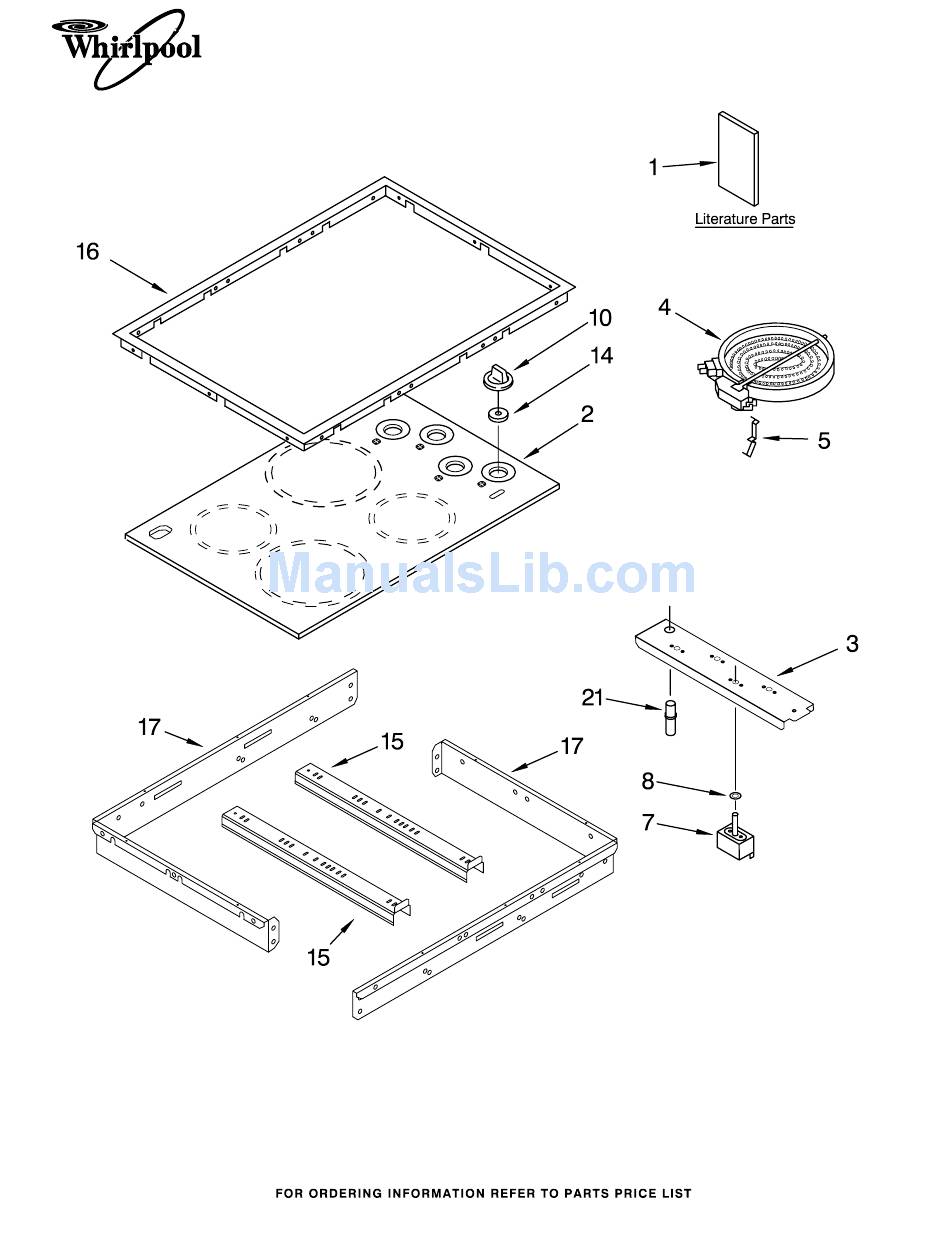

COOKTOP PARTS
30" ELECTRIC
DROP−IN RANGE
For Models:RS696PXGB7, RS696PXGQ7
SELF CLEANING
(Black)
(Designer White)
OVEN
2−01 Litho in U.S.A. (jac)
1
Part No. 8185716

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS696PXGB7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Whirlpool RS696PXGB7

  • Page 1 COOKTOP PARTS 30" ELECTRIC DROP−IN RANGE For Models:RS696PXGB7, RS696PXGQ7 SELF CLEANING (Black) (Designer White) OVEN 2−01 Litho in U.S.A. (jac) Part No. 8185716...
  • Page 2 COOKTOP PARTS For Models:RS696PXGB7, RS696PXGQ7 (Black) (Designer White) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. Literature Parts LIT3191800 Installation Instructions LIT3191537 Use & Care Guide LIT3192844 Tech Sheet...
  • Page 3: Oven Parts

    OVEN PARTS For Models:RS696PXGB7, RS696PXGQ7 (Black) (Designer White) 8185716...
  • Page 4 4455520 Left Hand 4455521 Right Hand 4448520 Bumper, Door 4455286 Top Chassis 4449809 Screw 4452158 Tube, Vent 4449154 Screw OVEN PARTS For Models:RS696PXGB7, RS696PXGQ7 (Black) (Designer White) Illus. Part DESCRIPTION 4452165 Lens, Light 4452368 Oven Light Assy 4452166 Bulb, Light...
  • Page 5: Control Panel Parts

    8185716 CONTROL PANEL PARTS For Models:RS696PXGB7, RS696PXGQ7 (Black) (Designer White) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. Control Panel Assy. W/Membrane Switch 4452844 Black Model 4452845 White Model...
  • Page 6: Oven Door Parts

    4451719 Door Liner 4455525 Hinge, Door 4449743 Screw 4449259 Glass, Inner 4451722 Insulation, Door OVEN DOOR PARTS For Models:RS696PXGB7, RS696PXGQ7 (Black) (Designer White) Illus. Part DESCRIPTION 4449263 Glass, Inner 4451668 Retainer, Glass 4449809 Screw...
  • Page 7 4451759 Vent, Exhaust 4449040 Screw 4455178 Elbow, Vent−Top 4455334 Blower 4455352 Bracket, Blower 8185716 TOP VENTING PARTS For Models:RS696PXGB7, RS696PXGQ7 (Black) (Designer White) Illus. Part DESCRIPTION 4451758 Block, Foam 4455177 Elbow, Vent−Bottom 4449868 Block, Terminal...
  • Page 8 INTERNAL OVEN PARTS For Models:RS696PXGB7, RS696PXGQ7 (Black) (Designer White) Illus. Part DESCRIPTION 4452154 Element, Broil 4449154 Screw 3147563 Grill, Broiler 3147845 Pan, Broiler 4448717 Rack, Oven 4452153 Element, Bake 4449154 Screw 8185716...
  • Page 9: Optional Parts

    350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) 8185716 OPTIONAL PARTS For Models:RS696PXGB7, RS696PXGQ7 (Black) (Designer White) Illus. Part DESCRIPTION SPLICING WIRES−−25FT. LENGTH 242828 Wire (12 Ga. 150 c Black) 242820 Wire (14 Ga.
