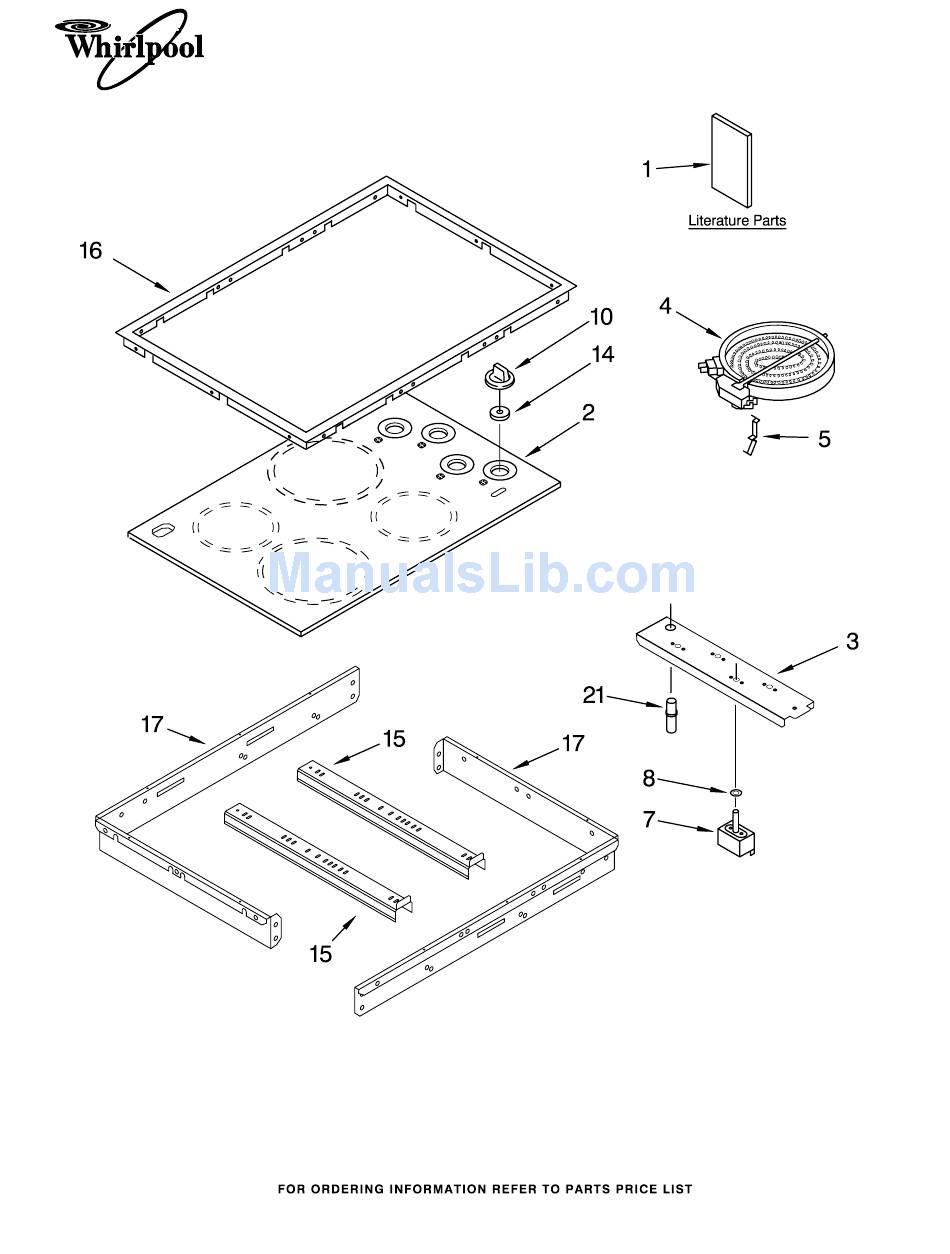

- Page 1 COOKTOP PARTS 30" ELECTRIC DROP−IN RANGE For Models:RS696PXGB12, RS696PXGQ12 SELF CLEANING (Black) (Designer White) OVEN Part No. 8186118 8−03 Litho in U.S.A. (cre)
- Page 2 COOKTOP PARTS For Models:RS696PXGB12, RS696PXGQ12 (Black) (Designer White) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. Literature Parts LIT8300770 Installation Instructions LIT8300666 Use & Care Guide LIT8302073 Tech Sheet...
-
Page 3: Oven Parts
OVEN PARTS For Models:RS696PXGB12, RS696PXGQ12 (Black) (Designer White) 8186118... - Page 4 4455605 Left Hand 4455606 Right Hand 4448520 Bumper, Door 4455865 Top Chassis 4449809 Screw 4452158 Tube, Vent 3196176 Screw OVEN PARTS For Models:RS696PXGB12, RS696PXGQ12 (Black) (Designer White) Illus. Part DESCRIPTION 4452165 Lens, Light 4452368 Oven Light Assy 4452166 Bulb, Light...
-
Page 5: Control Panel Parts
8186118 CONTROL PANEL PARTS For Models:RS696PXGB12, RS696PXGQ12 (Black) (Designer White) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. Control Panel Assy. W/Membrane Switch 4456312 Black Model 4456311 White Model... -
Page 6: Oven Door Parts
4455618 Door Liner Hinge, Door 8300571 R.Side 8300572 L.Side 4449743 Screw 4449259 Glass, Inner OVEN DOOR PARTS For Models:RS696PXGB12, RS696PXGQ12 (Black) (Designer White) Illus. Part DESCRIPTION 4451722 Insulation, Door 4449263 Glass, Inner 4450470 Retainer, Glass... - Page 7 4451759 Vent, Exhaust 4449040 Screw 4455178 Elbow, Vent−Top 4455334 Blower 4455352 Bracket 8186118 TOP VENTING PARTS For Models:RS696PXGB12, RS696PXGQ12 (Black) (Designer White) Illus. Part DESCRIPTION 4451758 Block, Foam 4455177 Elbow, Vent−Bottom 4449868 Block, Terminal 3400080 Screw...
- Page 8 INTERNAL OVEN PARTS For Models:RS696PXGB12, RS696PXGQ12 (Black) (Designer White) Illus. Part DESCRIPTION 4456103 Element, Broil 4449154 Screw 3147563 Grill, Broiler 3147845 Pan, Broiler 4448717 Rack, Oven 4452153 Element, Bake 4449154 Screw 8186118...
-
Page 9: Optional Parts
350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) 8186118 OPTIONAL PARTS For Models:RS696PXGB12, RS696PXGQ12 (Black) (Designer White) Illus. Part DESCRIPTION SPLICING WIRES−−25FT. LENGTH 242828 Wire (12 Ga. 150 c Black) 242820 Wire (14 Ga.
