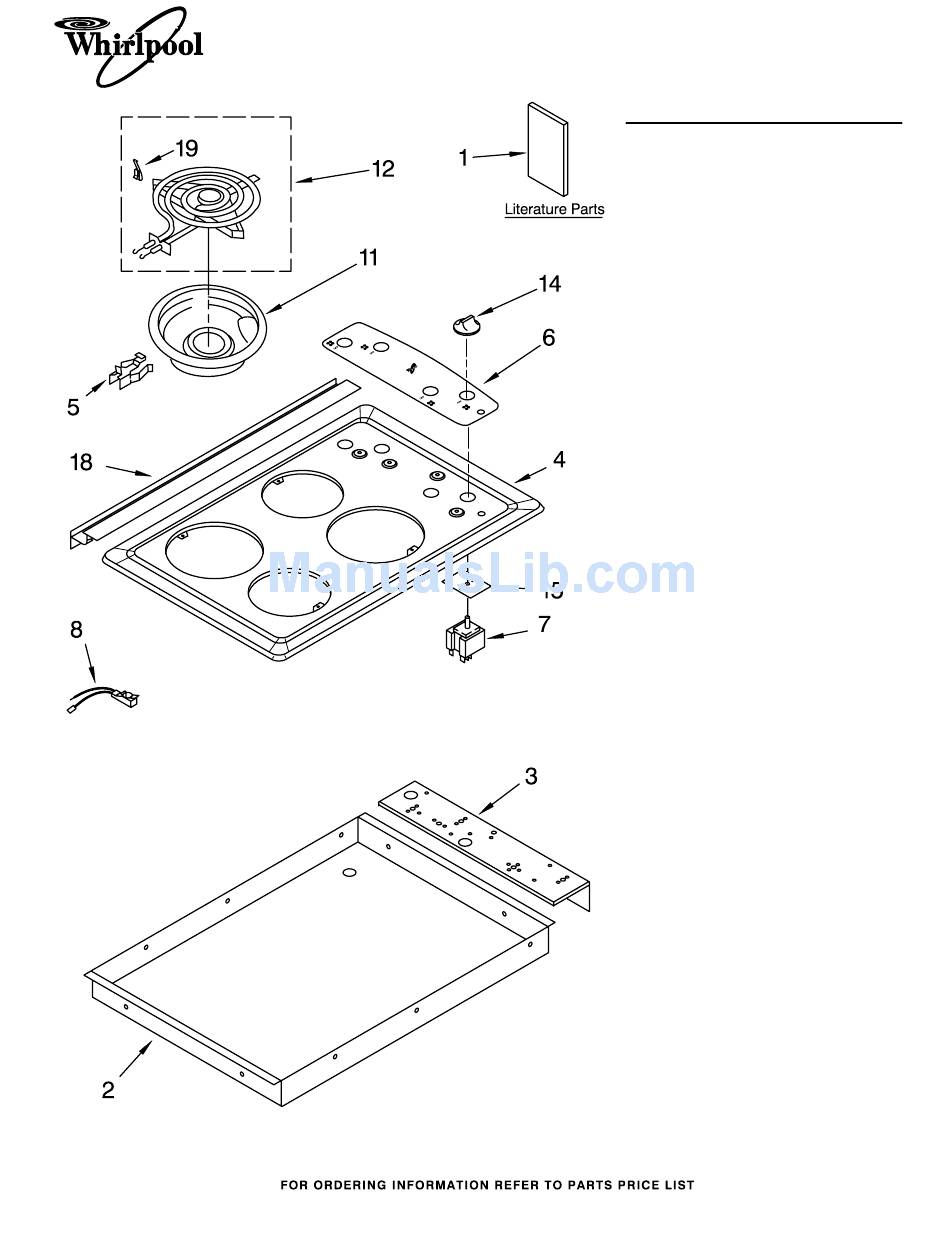

COOKTOP PARTS
For Models:RS675PXGB9, RS675PXGQ9, RS675PXGT9
(Black)
(White)
(Biscuit)
Illus.
No.
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1
2
3
4
5
6
7
8
11
12
14
15
18
19
1
30" DROP−IN
ELECTRIC OVEN
SELF CLEAN
Part
No.
DESCRIPTION
COOKTOP PARTS
Literaturre Parts
LIT4455995 Installation
Instructiions
LIT8300666 Use & Care Guide
LIT3192845 Tech Sheet
LIT3191638 Safe Cooking Tips
3192459 Burner Box
3192330 Bracket, Mounting
3177991 Screw
Cooktop
8284709 Biscuit
3191168 White
3191167 Black
3192575 Clip, Mtg. (4)
3400843 Screw
Panel, Control
8284707 Biscuit
3191229 White
3191228 Black
Switch, Infinite
3191471 Use W/6" Surface
(Blue Shaft)
3191473 Use W/8" Surface
(Red Shaft)
3400855 Screw, 8−32 x 1/4
3191491 Light, Indicator
Pan, Surface
3195208 6" Pan
3195209 8" Pan
Element, Surface
8053266 6" Burner
8053268 8" Burner
Knob, Control
3196232 White
8272506 Biscuit
3196231 Black
3183956 Seal, Switch
Shaft (4)
Trim, Extension
3192103 White
8300518 Biscuit
3192102 Black
3195917 Clip, Element
Part No. 8185948
