3−05 Litho in U.S.A. (cre)

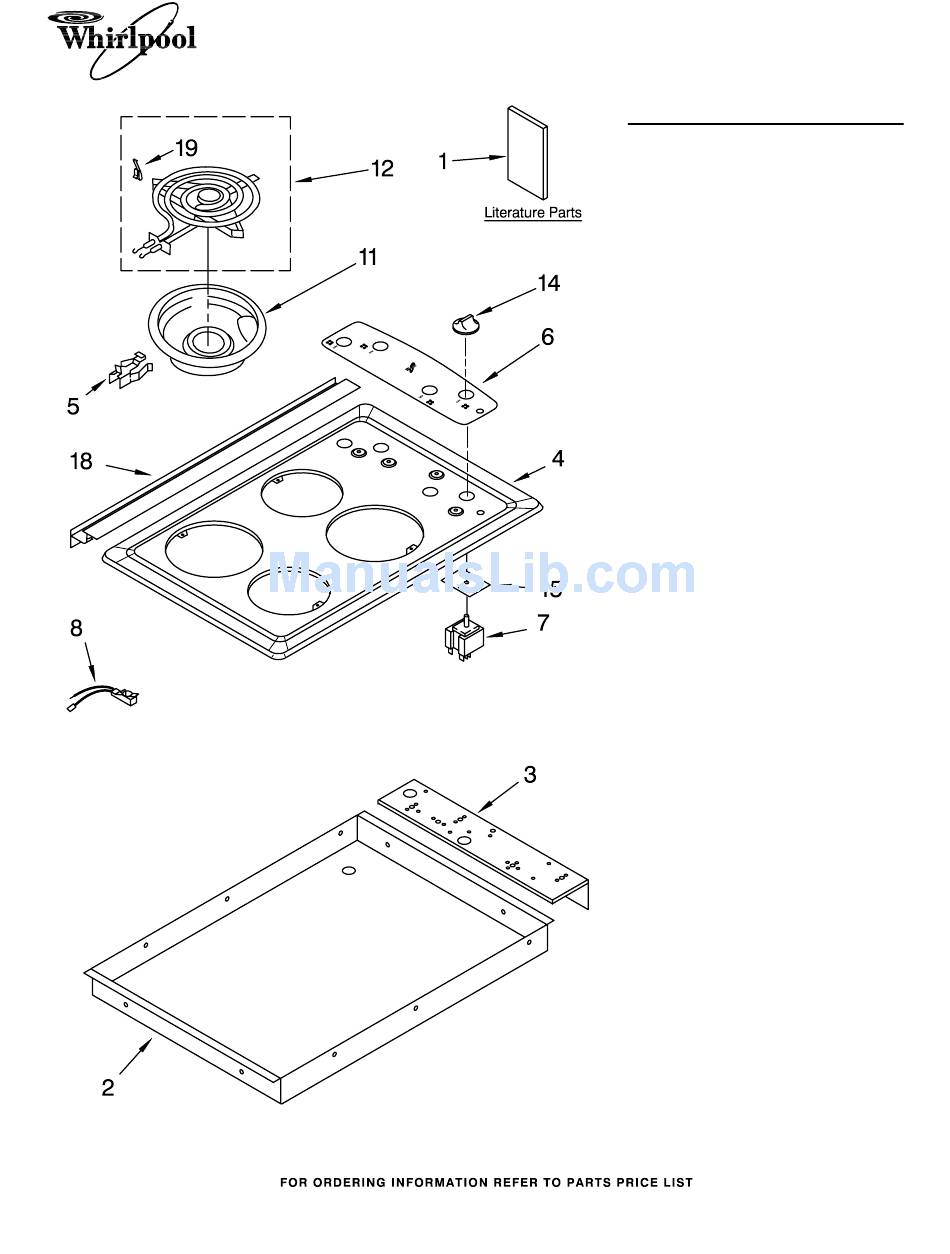

COOKTOP PARTS
For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14
(Black)
(White)
(Biscuit)
Illus.
No.
1
2
3
4
5
6
7
8
11
12
14
15
18
19
1
30" DROP−IN
ELECTRIC OVEN
SELF CLEAN
Part
No.
DESCRIPTION
Literaturre Parts
8300649 Installation
Instructiions
8300666 Use & Care Guide
8302072 Tech Sheet
3191638 Safe Cooking Tips
3192459 Burner Box
3192330 Bracket, Mounting
3177991 Screw
Cooktop
8284709 Biscuit
3191168 White
3191167 Black
3192575 Clip, Mtg. (4)
3400843 Screw
Panel, Control
8284707 Biscuit
3191229 White
3191228 Black
Switch, Infinite
3191471 Use W/6" Surface
(Blue Shaft)
3191473 Use W/8" Surface
(Red Shaft)
3400855 Screw, 8−32 x 1/4
4456181 Light, Indicator
Pan, Surface
3195208 6" Pan
3195209 8" Pan
Element, Surface
8053266 6" Burner
8053268 8" Burner
Knob, Control
3196232 White
8272506 Biscuit
3196231 Black
3183956 Seal, Switch
Shaft (4)
Trim, Extension
3192103 White
8300518 Biscuit
3192102 Black
3195917 Clip, Element
Part No. 8186250
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Whirlpool RS675PXGB14
Summary of Contents for Whirlpool RS675PXGB14
- Page 1 For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14 3−05 Litho in U.S.A. (cre) COOKTOP PARTS (Black) (White) 30" DROP−IN ELECTRIC OVEN SELF CLEAN (Biscuit) Illus. Part DESCRIPTION Literaturre Parts 8300649 Installation Instructiions 8300666 Use & Care Guide 8302072 Tech Sheet 3191638 Safe Cooking Tips...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14 (Black) (White) Illus. Part DESCRIPTION Control Panel Assy. 4456311 White 4456309 Biscuit 4456312 Black W/Membrane Switch 3400832 Screw 4451034 Gasket, Control Panel 8301919 Assy, Control 4449745 Screw (Biscuit) 8186250... -
Page 3: Oven Parts
OVEN PARTS For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14 (Black) (White) (Biscuit) 8186250... - Page 4 For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14 Illus. Part DESCRIPTION Trim, Side (Right Hand) 4450845 White 4452120 Biscuit 4450844 Black (Left Hand) 4450848 White 4452121 Biscuit 4450847 Black 8281236 Screw Hinge Receiver 4455605 Left Hand 4455606 Right Hand 4448520 Bumper, Door 4452260 Spacer, Foam...
-
Page 5: Oven Door Parts
For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14 Illus. Part DESCRIPTION 4457127 Door Liner Hinge, Door 8300571 R.Side 8300572 L.Side 4449743 Screw 4449259 Glass, Inner 4451722 Insulation, Door 9759225 Glass, Inner Door Handle 4448855 White 4452860 Biscuit 4448854 Black 8186250 OVEN DOOR PARTS (Black) (White) Illus. - Page 6 INTERNAL OVEN PARTS For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14 (Black) (White) Illus. Part DESCRIPTION 4456103 Element, Broil 4449154 Screw 4457277 Grill, Broiler 4457276 Pan, Broiler 4448717 Rack, Oven 9759322 Pad, Rack 4452153 Element, Bake 4449154 Screw (Biscuit) 8186250...
- Page 7 For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14 Illus. Part DESCRIPTION 4451759 Vent, Exhaust 4449040 Screw, 8−18 x 3/8 4455178 Elbow, Vent Top 4457289 Blower, 65MM 4451758 Block, Foam 4455177 Elbow, Vent Bottom 4451761 Plate, Service 8186250 TOP VENTING PARTS (Black) (White) Illus. Part...
-
Page 8: Optional Parts
For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 261869 Cord Brown 72032 Black PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) OPTIONAL PARTS (Black) (White) Illus.
