3−01 Litho in U.S.A. (cre)

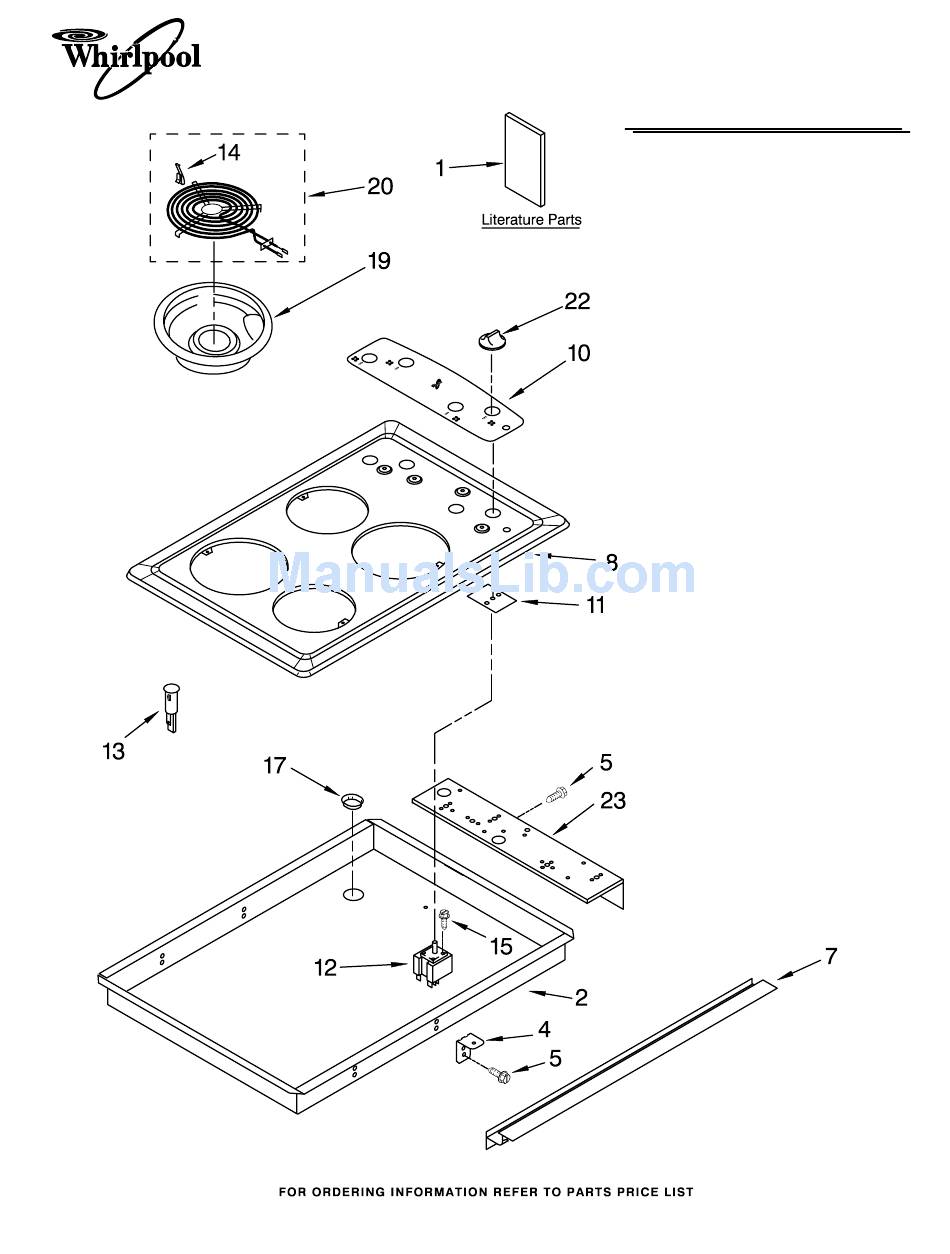

COOKTOP PARTS
For Models:RS610PXGW7, RS610PXGV7
(White) (Black on Biscuit)
1
30" DROP−IN
ELECTRIC
STANDARD CLEAN
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
LIT3191799 Installation
Instructions
LIT3191537 Use & Care Guide
LIT3192846 Tech Sheet
LIT3191638 Safe Cooking Tips
2
3192459 Burner Box
4
3192575 Bracket, Mounting
5
3196537 Screw, 8−18 x 3/8
7
3192102 Trim, Extension
8
Cooktop
3191168 White
8284709 Biscuit
10
3191228 Panel, Control
11
3183956 Seal, Switch (4)
12
Switch, Infinite
3191471 Use W/ 6" Surface
(Blue Shaft)
3191472 Use W/ 8" Surface
(Silver Shaft)
13
3191491 Light, Indicator
14
3195917 Clip, Element
15
3400855 Screw, 8−32 x 1/4
17
4448444 Grommet
19
Drip Bowl
3195208 6" (2)
3195209 8" (2)
20
Element, Coil
8053265 6" LF−RR
8053267 8" RF−LR
22
3196231 Knob, Control (4)
23
3192330 Bracket, Switch
Mounting
Part No. 8185714
OVEN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Whirlpool RS610PXGV7
Summary of Contents for Whirlpool RS610PXGV7
- Page 1 3−01 Litho in U.S.A. (cre) COOKTOP PARTS For Models:RS610PXGW7, RS610PXGV7 (White) (Black on Biscuit) 30" DROP−IN ELECTRIC STANDARD CLEAN OVEN Illus. Part DESCRIPTION Literature Parts LIT3191799 Installation Instructions LIT3191537 Use & Care Guide LIT3192846 Tech Sheet LIT3191638 Safe Cooking Tips...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models:RS610PXGW7, RS610PXGV7 (White) (Black on Biscuit) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. 4452843 Control Panel Assy. W/Membrane Switch 4449745 Screw 3400832 Screw 4451034 Gasket,... -
Page 3: Oven Parts
OVEN PARTS For Models:RS610PXGW7, RS610PXGV7 (White) (Black on Biscuit) 8185714... - Page 4 4448520 Bumper, Door 4455286 Top, Chassis 4449809 Screw 4452159 Tube, Vent 3196176 Screw 4451664 Fan & Bracket Assy 4449809 Screw OVEN PARTS For Models:RS610PXGW7, RS610PXGV7 (White) (Black on Biscuit) Illus. Part DESCRIPTION 4452368 Oven Light Assy 4452166 Bulb, Light 4452165 Lens, Light...
-
Page 5: Oven Door Parts
8185714 OVEN DOOR PARTS For Models:RS610PXGW7, RS610PXGV7 (White) (Black on Biscuit) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. 4455618 Door Liner 4449259 Glass, Inner 4455523 Hinge, Door 4449743 Screw (4) - Page 6 INTERNAL OVEN PARTS For Models:RS610PXGW7, RS610PXGV7 (White) (Black on Biscuit) Illus. Part DESCRIPTION 4452154 Element, Broil 4449154 Screw 3147563 Grill, Broiler 3147845 Pan, Broiler 4448717 Rack, Oven 4452153 Element, Bake 4449154 Screw 8185714...
- Page 7 8185714 TOP VENTING PARTS For Models:RS610PXGW7, RS610PXGV7 (White) (Black on Biscuit) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. 4451759 Vent, Exhaust 4449040 Screw 4454943 Plate, Mounting 4449868 Block, Terminal...
-
Page 8: Optional Parts
350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) OPTIONAL PARTS For Models:RS610PXGW7, RS610PXGV7 (White) (Black on Biscuit) Illus. Part DESCRIPTION SPLICING WIRES−−25FT. LENGTH 242828 Wire (12 Ga. 150 c Black) 242820 Wire (14 Ga.
