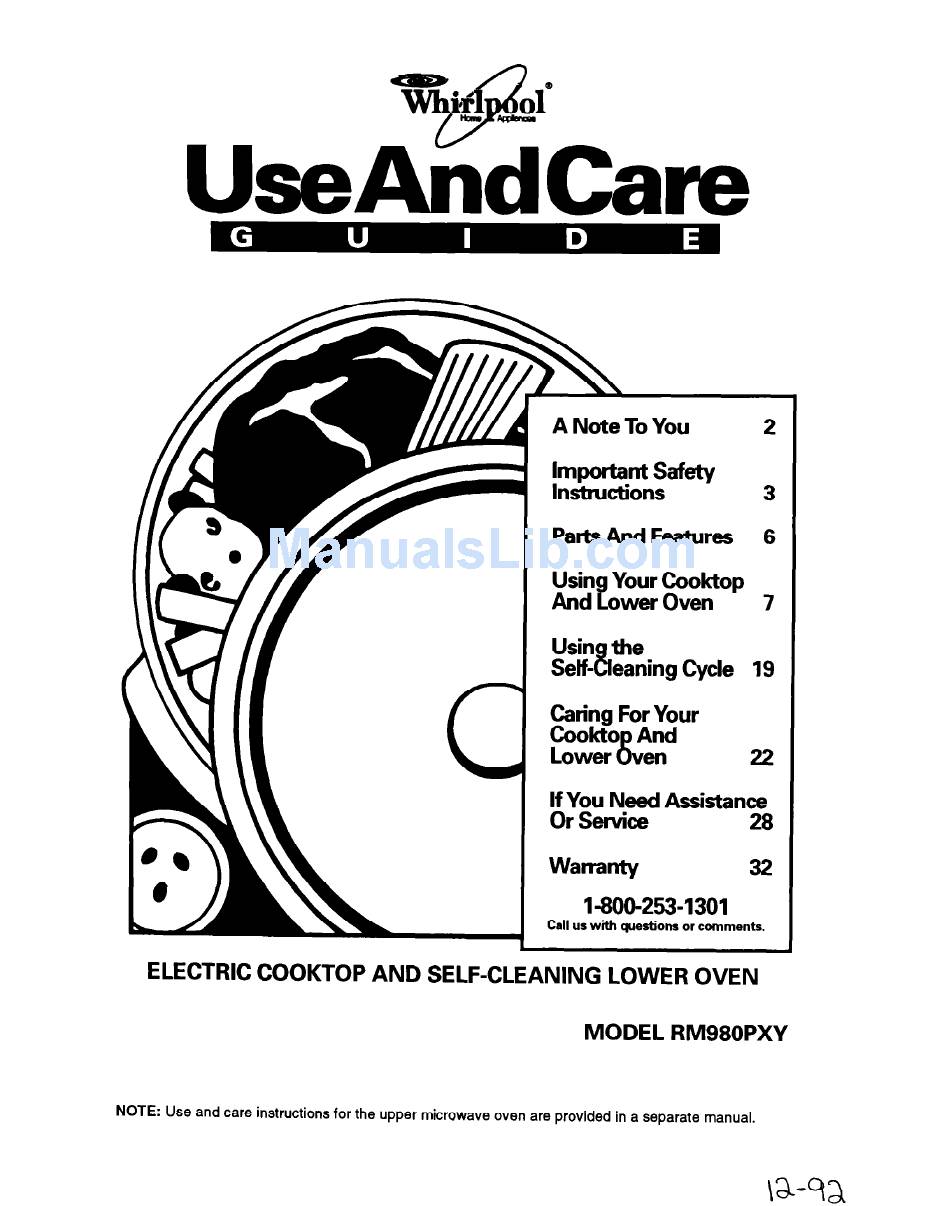

ELECTRIC COOKTOP AND SELF-CLEANING LOWER OVEN
MODEL RM980PXY
NOTE: Use and care instructions for the upper microwave oven are provided in a separate manual.
Advertisement
Related Manuals for Whirlpool RM980PXY
Summary of Contents for Whirlpool RM980PXY
- Page 1 NOTE: Use and care instructions for the upper microwave oven are provided in a separate manual. Y&f of Usin the Setf- !I eaning Cycle 19 Caring For Your 8v en :EfcI Warranty 1-800-253-1301 Call us with questions MODEL RM980PXY Assistance or comments.
- Page 2 A Note To You Thank you for buying a Whirlpool You have purchased a quality, world-class home appliance. Years of engineering into its manufacturing. To ensure that you will enjoy many years of trouble-free developed this Use and Care Guide. It is full of valuable information on how to operate and maintain your appliance properly and safely.
- Page 3 Important To reduce the risk of fire, electrical shock, injury to persons, or damage when using the range, follow basic precautions, including the following: General *Read all instructions before using the range. *Install or locate the range only in accordance with the pro- vided Installation Instructions.
- Page 4 4Jse only d potholders. Moist or damp po holders on hot sur- faces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or bulk cloth foOnrrr;otholder. It coul J catch @Keep range vents unobstructed.
- Page 5 Grease *Grease is flammable. Do not allow grease to collect around cooktop or in vents. Wipe spill- overs immediately. @Do not use water on grease fires. Never pick up a flaming pan. Smother flamin pan on range by coverin h a well- fitted lid, cookie s eet or flat tray.
- Page 6 Parts And Features This section contains captioned illustrations of your range. Use them to become familiar with the location and appearance of all parts and features. with chrome reflector bowl Lock lever Model and serial number plate - (under cooktop) Removable storaw drawer...
- Page 7 Using Your Cooktop Lower Oven In This Section U8ing the surface units ... Positioning racks and pan8 ... For hemt air circulation Setting the clock ... Using the Minute Timer ... Bakinglroasting Adjusting the oven temperature control To obtain the best cooking results possible, you must operate your range properly. This section gives you important information for efficient and safe Using the surface...
- Page 8 Until you get used to the settings, following as a guide. For best results, start cooking at the high settings; then turn the control knob down to continue cooking. RECOMMENDED To start foods cooking. To bring liquids to a boil. To hold a rapid boil.
- Page 9 If you plan to use the cooktop for canning, we recommend the installation of a Canning Kit. Order the kit (Part No. 242905) from your If not Whirlpool dealer or authorized WhirlpoolSM service company. Personal Always position oven rack(s) in desired location before turning oven on.
- Page 10 For best air circulation The hot air must circulate around the pans in the oven for even heat to reach all parts of the oven. This results in better baking. Place the pans so that one is not directly over the other.
- Page 11 Setting the clock Push in and turn the Minute Timer Knob to set the clock. 1. Push in Minute Timer Knob and turn in either direction until digital clock shows the correct time of day. 2. Let the Minute Timer Knob pop out. Turn clockwise until Minute Timer hand points to OFF.
- Page 12 Baking/roasting 1. Position the rack(s) properly before turning on the oven. To change rack Position, at front and pull out. For further information, see “Positioning racks and pans” on page 9. 2. Set the Oven Selector to BAKE. 3. Set the Oven Temperature Control to the baking/roasting temperature...
- Page 13 Adjusting the oven temperature Does your oven seem hotter or colder than your old oven? The temperature of your old oven may have shifted gradually without you noticing the change. Your new oven is properly adjusted to provide accurate temperatures. But, when com- pared to your old oven, the new design may give you different results.
- Page 14 4. Set the Oven Selector and Oven Temperature Control to BROIL. The Oven Indicator Light will come on. NOTE: Do not preheat oven when broiling. 5. When broiling is done, turn both the Oven Selector and the Oven Temperature OFF. The Oven Indicator Light will go off. Custom broil If food is cooking too fast, turn the Oven...
- Page 15 Broiling tips Use the broiler pan and grid for broiling. They are designed to drain excess liquid and fat away from the cooking surface to help prevent spatter, smoke or fire. Refer to a broiling chart in a reliable cookbook for correct broiling times.
- Page 16 Using the automatic The automatic MEALTIMER clock is designed to turn the oven on and off at times you set . . . even when you are not around. Automatic bakinq/roasting is ideal for foods which do not require a preheated oven, such as meats and casseroles.
- Page 17 3. Push in and turn the Stop Time Knob clock- wise to the time vou want the oven to shut off. Make sure the Siart Time Knob is set at the current time of day and is not pushed in. 4.
- Page 18 The storage drawer The storage drawer is for storing pots and pans. The drawer can be removed to make it easier to clean under the range and to check for installa- tion of the anti-tip bracket. Use care when handling the drawer.
- Page 19 Using The Self-Cleaning Cycle In This Section ........19 .
- Page 20 2. Remove any pots and pans being stored in the oven. NOTE: The broiler pan and grid can be cleaned in the oven it most of the soil is removed first by handcleaning washer. If most of the soil is not removed, excessive smoking will occur.
- Page 21 4. Move the Lock Lever to the right-the Clean position. The Clean Indicator Light will come on. 5. After the Self-Cleaning cycle is started, the Lock Indicator Light comes on when the oven temperature exceeds normal baking/roasting temperatures. The door cannot be opened and the Lock Lever must not be moved when the Lock Indicator Light is on.
- Page 22 Caring For Your Coolctop And Lower Oven In This Section and reflector bowls ....22 ..........24 m-up cooktop Your range is designed for ease of care.
- Page 23 3. Pull the surface unit straight away from the receptacle. 4. Lift out the reflector bowl. See “Cleaning chart” on page 25 for cleaning instructions. Replacing 1. Make sure all surface units are off and cool before replacing surface units and reflector bowls.
- Page 24 3. Hold the surface unit as level as possible with the terminal just started into the receptacle. Push the surface unit terminal into the receptacle. 4. When terminal is pushed into the receptacle as far as it will go, push down the edge of the surface unit opposite the receptacle.
- Page 25 Cleaning chart Use the following table to help you clean your range. WHAT TO USE PART Sponge and warm, Control knobs soapy water Sponge and warm, Control panels soapy water Paper towel and spray glass cleaner Sponge and warm, Exterior surfaces soapy water (other than control...
- Page 26 TO USE WHAT PART Oven door glass Paper towel and spray glass cleaner Warm, soapy water and a nonabrasive, scrubbing pad Oven cavity Self-Cleaning HOW TO CLEAN Make sure oven is cool. Follow directions provided with the cleaner. Wash, rinse and dry thoroughly. plastic See “Using The Self-Cleaning cycle...
- Page 27 Use during the Seff- Cleaning cycle will shorten the life of the bulb. If you need to replace the cooktop light, contact an authorized Whirlpool service technician. (See Step 3 under “If You Need Assistance Or Service,” page 30.)
- Page 28 If You Need Assistance Or Service This section is designed to help you save the cost of a service call. Part 1 of this section outlines possible problems, their causes, and actions you can take to solve each problem. Parts 2 and 3 tell you what to do if you still need assistance or service.
- Page 29 PROBLEM POSSIBLE Self-Cleaning The Oven Selector and Oven cycle will not Temperature Control Knob are not operate set to CLEAN. The range clock does not show the correct time of day. The Lock Lever is not in the CLEAN position-all the way to the right.
- Page 30 Whirlpool appliance. To locate FSP replacement refer to Step 3 above or call the Whirlpool Con- sumer Assistance Center number in Step 2. 5. If you are not satisfied...
- Page 32 Outside the United States, a different warranty may apply. For details, please contact your authorized Whirlpool distributor or military exchange. If you need service, first see the “Assistance “Assistance...
