1−00 Litho in U.S.A. (RS)

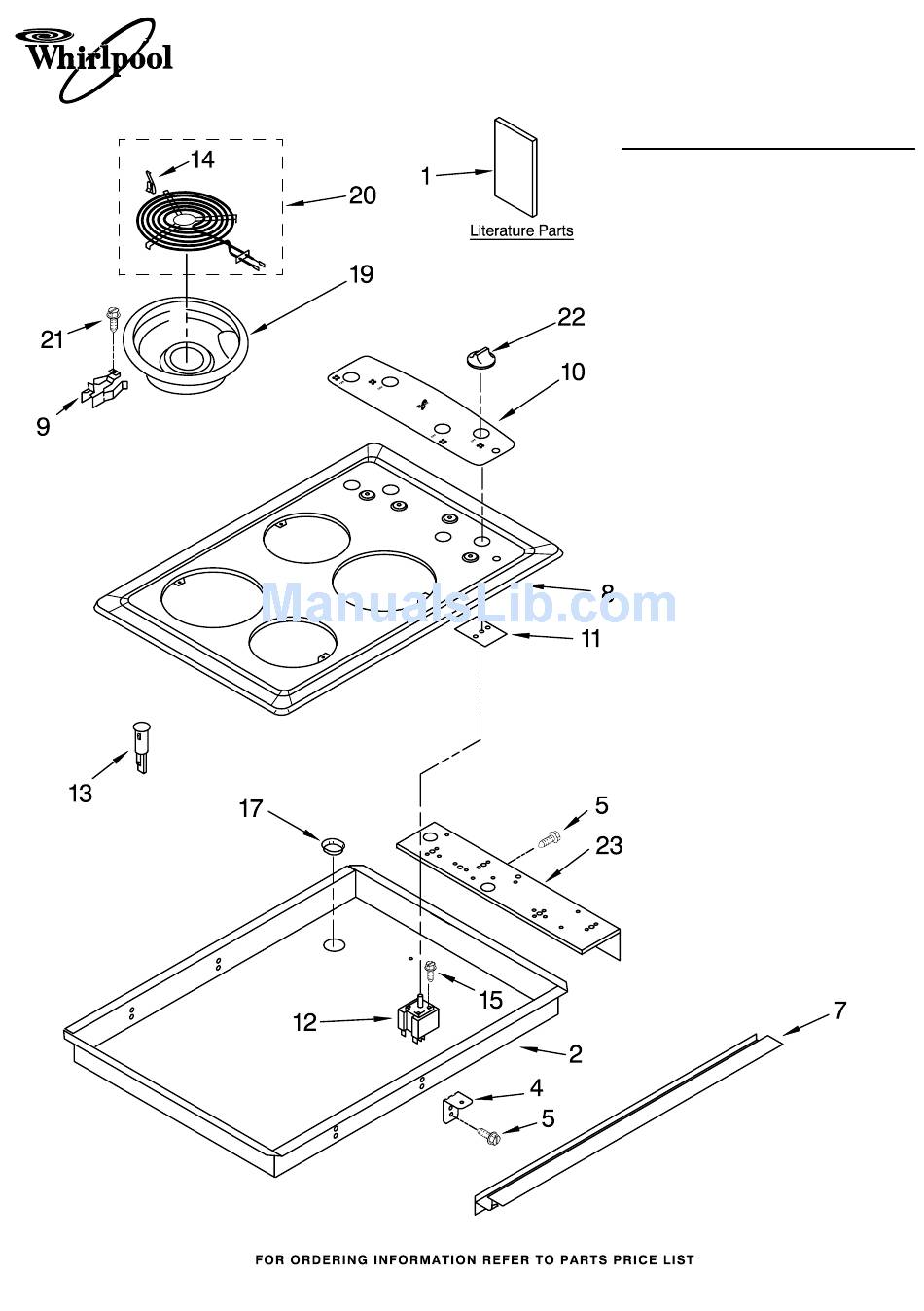

COOKTOP PARTS
For Models: RS610PXGW1, RS610PXGN1
(White)
1
(Almond)
Illus.
Part
No.
No.
1
LIT3191799 Installation
LIT3191537 Use & Care Guide
LIT3192846 Tech Sheet
LIT3191638 Safe Cooking Tips
2
3192459 Burner Box
4
3192575 Bracket, Mounting
5
3196537 Screw, 8−18 x 3/8
7
3192102 Trim, Extension
8
3191168 White
3191169 Almond
9
3195210 Clip, Receptacle
10
3191228 Panel, Control
11
3183956 Seal, Switch (4)
12
3191471 Use W/ 6" Surface
3191472 Use W/ 8" Surface
13
3191491 Light, Indicator
14
3195917 Clip, Element
15
3400855 Screw, 8−32 x 1/4
17
4448444 Grommet
19
3195208 6" (2)
3195209 8" (2)
20
8053265 6" LF−RR
8053267 8" RF−LR
21
3400843 Screw, 8−18 x 3/8
22
3196231 Knob, Control (4)
23
3192330 Bracket, Switch
30" DROP−IN
ELECTRIC
STANDARD CLEAN
OVEN
DESCRIPTION
Literature Parts
Instructions
Cooktop
Switch, Infinite
(Blue Shaft)
(Silver Shaft)
Drip Bowl
Element, Coil
Mounting
Part No. 8177401
Advertisement
Related Manuals for Whirlpool RS610PXGN1
Summary of Contents for Whirlpool RS610PXGN1
- Page 1 1−00 Litho in U.S.A. (RS) COOKTOP PARTS For Models: RS610PXGW1, RS610PXGN1 (White) (Almond) 30" DROP−IN ELECTRIC STANDARD CLEAN OVEN Illus. Part DESCRIPTION Literature Parts LIT3191799 Installation Instructions LIT3191537 Use & Care Guide LIT3192846 Tech Sheet LIT3191638 Safe Cooking Tips 3192459 Burner Box 3192575 Bracket, Mounting 3196537 Screw, 8−18 x 3/8...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: RS610PXGW1, RS610PXGN1 (White) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. 4452843 Control Panel Assy. W/Membrane Switch 4449745 Screw 3400832 Screw 4451034 Gasket, Control Panel... -
Page 3: Oven Parts
OVEN PARTS For Models: RS610PXGW1, RS610PXGN1 (White) (Almond) 8177401... - Page 4 4452159 Tube, Vent 3196176 Screw 4451664 Fan & Bracket Assy 4449809 Screw 4452368 Oven Light Assy 4452166 Bulb, Light 4452165 Lens, Light OVEN PARTS For Models: RS610PXGW1, RS610PXGN1 (White) (Almond) Illus. Part DESCRIPTION 4451740 Frame, Front 4449040 Screw 4450118 Nut...
-
Page 5: Oven Door Parts
8177401 OVEN DOOR PARTS For Models: RS610PXGW1, RS610PXGN1 (White) (Almond) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. 4451719 Door Liner 4449259 Glass, Inner 4454946 Hinge, Door 4449743 Screw (4) - Page 6 INTERNAL OVEN PARTS For Models: RS610PXGW1, RS610PXGN1 (White) Illus. Part DESCRIPTION 4452154 Element, Broil 4449154 Screw 3147563 Grill, Broiler 3147845 Pan, Broiler 4448717 Rack, Oven 4452153 Element, Bake 4449154 Screw (Almond) 8177401...
- Page 7 8177401 TOP VENTING PARTS For Models: RS610PXGW1, RS610PXGN1 (White) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. 4451759 Vent, Exhaust 4449040 Screw 4451789 Plate, Mounting 4449868 Block, Terminal 3400016 Screw...
-
Page 8: Optional Parts
PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) OPTIONAL PARTS For Models: RS610PXGW1, RS610PXGN1 (White) (Almond) Illus. Part DESCRIPTION SPLICING WIRES−−25FT. LENGTH 242828 Wire (12 Ga. 150 c Black) 242820 Wire (14 Ga.
