30" drop−in electric standard clean oven

Advertisement

12−98 Litho in U.S.A. (RS)

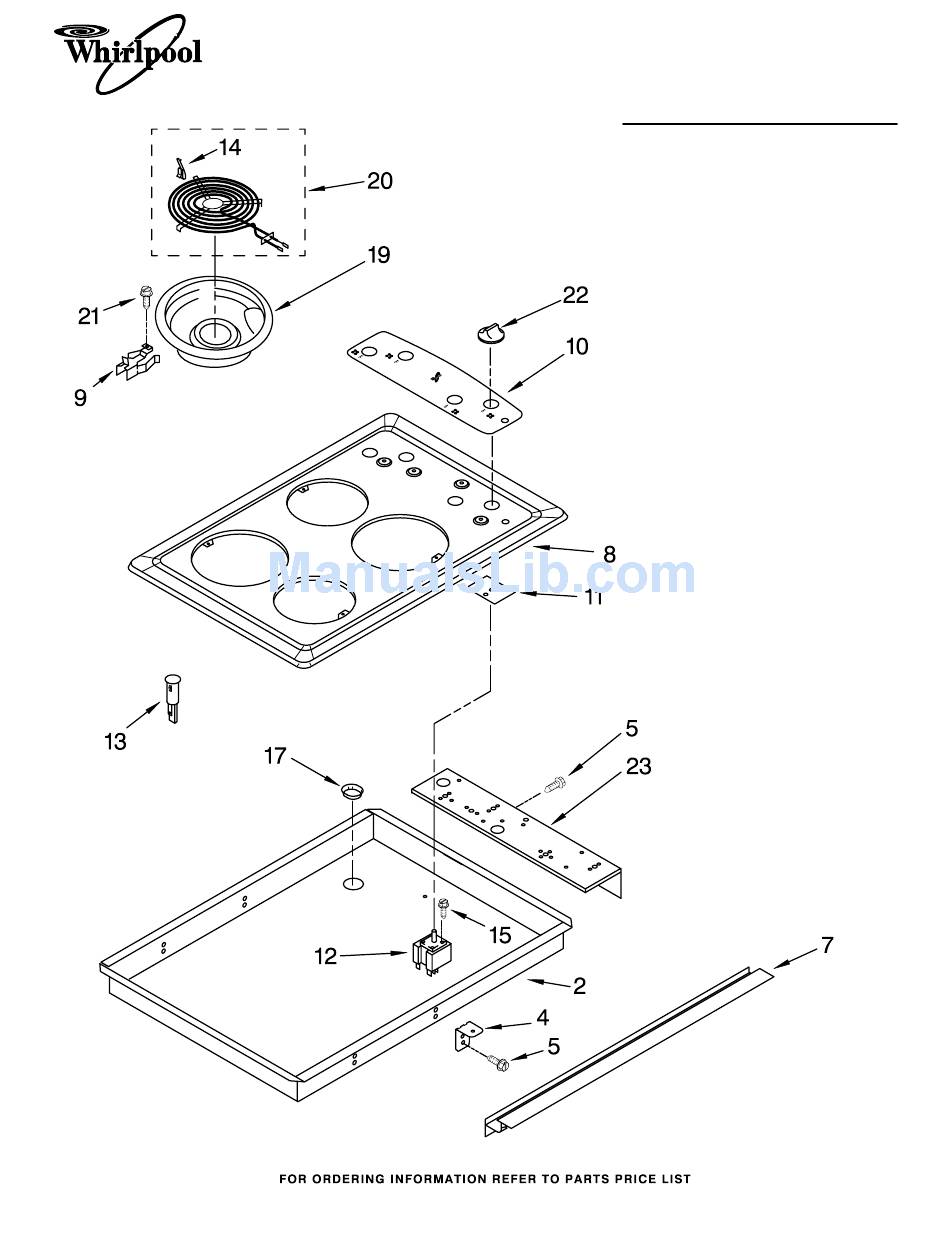

COOKTOP PARTS
For Models: RS610PXGW0, RS610PXGN0
(White)
1
(Almond)
Illus.
Part
No.
No.
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
2
3192459 Burner Box
4
3192454 Bracket, Mounting
5
3196537 Screw, 8−18 x 3/8
7
3192102 Trim, Extension
8
3191168 White
3191169 Almond
9
3195210 Clip, Receptacle
10
3191228 Panel, Control
11
3183956 Seal, Switch (4)
12
3191471 Use W/ 6" Surface
3191472 Use W/ 8" Surface
13
3191491 Light, Indicator
14
3195917 Clip, Element
15
3400855 Screw, 8−32 x 1/4
17
4448444 Grommet
19
3195208 6" (2)
3195209 8" (2)
20
8053265 6" LF−RR
8053267 8" RF−LR
21
3400843 Screw, 8−18 x 3/8
22
3196231 Knob, Control (4)
23
3192330 Bracket, Switch
30" DROP−IN
ELECTRIC
STANDARD CLEAN
OVEN
DESCRIPTION
Cooktop
Switch, Infinite
(Blue Shaft)
(Silver Shaft)
Drip Bowl
Element, Coil
Mounting
Part No. 885455

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS610PXGN0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Whirlpool RS610PXGN0

  • Page 1 12−98 Litho in U.S.A. (RS) COOKTOP PARTS For Models: RS610PXGW0, RS610PXGN0 (White) (Almond) 30" DROP−IN ELECTRIC STANDARD CLEAN OVEN Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. 3192459 Burner Box 3192454 Bracket, Mounting 3196537 Screw, 8−18 x 3/8...
  • Page 2: Control Panel Parts

    Control Panel Assy. 4451230 W/Membrane Switch 3149333 Screw 4159465 Screw CONTROL PANEL PARTS For Models: RS610PXGW0, RS610PXGN0 (White) Illus. Part DESCRIPTION 4451034 Gasket, Control Panel 4448873 Microcomputer 4449745 Screw (Almond) Illus.
  • Page 3: Oven Parts

    OVEN PARTS For Models: RS610PXGW0, RS610PXGN0 (White) (Almond) 885455...
  • Page 4 4451664 Fan & Bracket Assy 4449809 Screw 4452368 Oven Light Assy 4452166 Bulb, Light 4452165 Lens, Light 4451740 Frame, Front 4449040 Screw 4450118 Nut OVEN PARTS For Models: RS610PXGW0, RS610PXGN0 (White) (Almond) Illus. Part DESCRIPTION 4450493 Gasket, Door 4451478 Support, Insulation 4449809 Screw...
  • Page 5: Oven Door Parts

    NOTE: The screws and nuts required to attach a part are listed immediately following that part. 4451719 Door Liner 4449259 Glass, Inner 885455 OVEN DOOR PARTS For Models: RS610PXGW0, RS610PXGN0 (White) (Almond) Illus. Part DESCRIPTION 4454946 Hinge, Door 4449743 Screw (4)
  • Page 6 INTERNAL OVEN PARTS For Models: RS610PXGW0, RS610PXGN0 (White) Illus. Part DESCRIPTION 4452154 Element, Broil 4449154 Screw 3147563 Grill, Broiler 3147845 Pan, Broiler 4448717 Rack, Oven 4452153 Element, Bake 4449154 Screw (Almond) 885455...
  • Page 7 885455 TOP VENTING PARTS For Models: RS610PXGW0, RS610PXGN0 (White) (Almond) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. 4451759 Vent, Exhaust 4449040 Screw 4449868 Block, Terminal 3196181 Screw 4448549 Vent,...
  • Page 8: Optional Parts

    PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) OPTIONAL PARTS For Models: RS610PXGW0, RS610PXGN0 (White) (Almond) Illus. Part DESCRIPTION SPLICING WIRES−−25FT. LENGTH 242828 Wire (12 Ga. 150 c Black) 242820 Wire (14 Ga.
