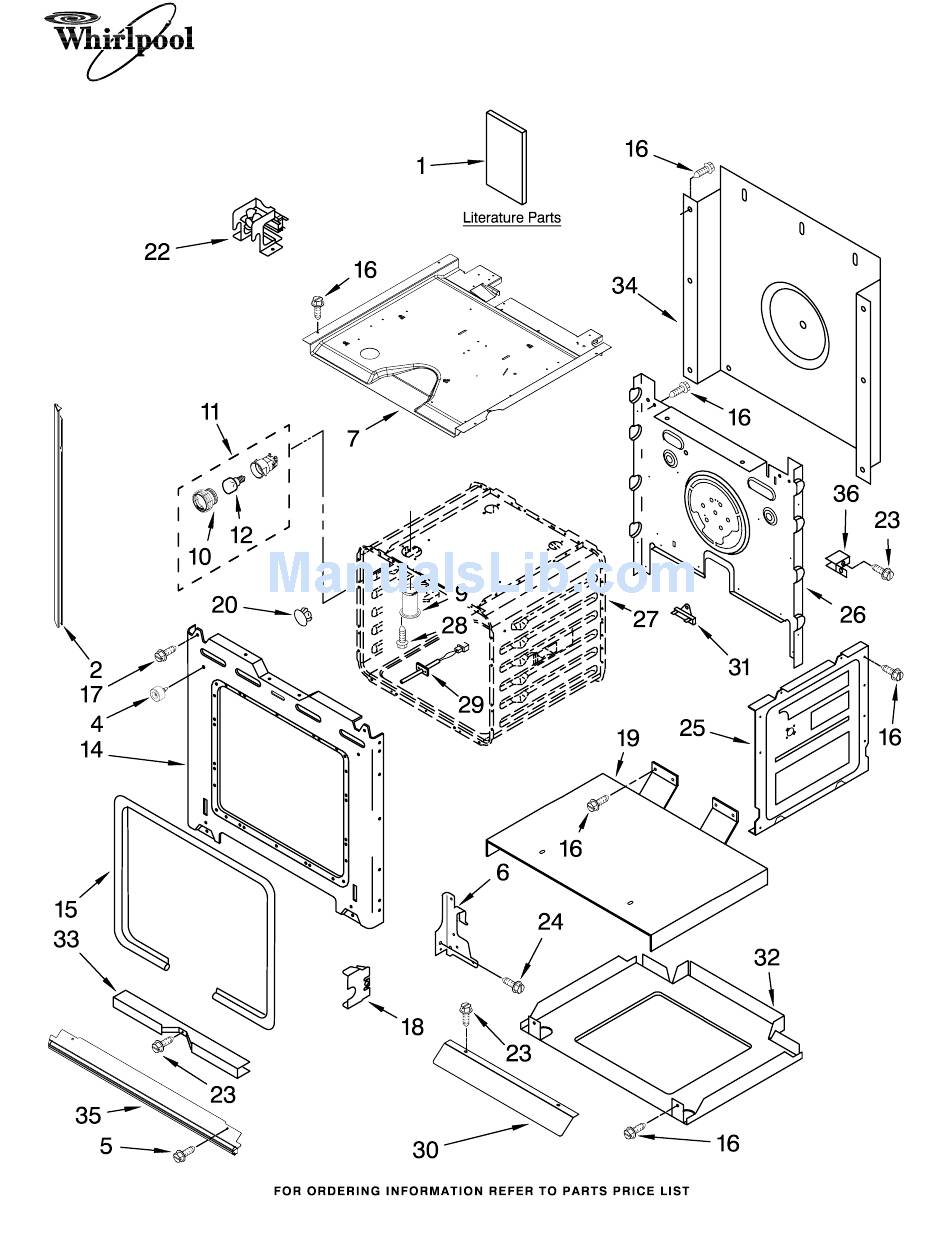

- Page 1 LOWER OVEN PARTS For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02 (Black) (Designer White) (Biscuit) (Stainless) 30" BUILT−IN ELECTRIC DOUBLE OVEN STD−CLEAN LOWER SELF−CLEAN UPPER 06−08 Litho in U.S.A. (amd)(mek) Part No. W10208660 Rev. A...
- Page 2 For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02 Illus. Part DESCRIPTION Literature Parts 8303647 Installation Instructions W10162170 Use & Care Guide 8302068 Tech Sheet Safer Cooking Tips 9762761 English W10065852 French Trim, Side Right W10136098 Black W10136100 White W10136102 Biscuit W10166949 Stainless Left...
- Page 3 UPPER OVEN PARTS For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02 (Black) (Designer White) (Biscuit) (Stainless) W10208660...
- Page 4 UPPER OVEN PARTS For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02 (Black) (Designer White) Illus. Part 4455606 Right 4455605 Left 4448444 Grommet, Mounting 4 W10105790 Bumper, Door 4449743 Screw 3196176 Screw 8303099 Top Chassis 4452158 Tube, Vent 10 W10067870 Lens, Light 11 W10009930 Assembly, Light...
- Page 5 LOWER OVEN DOOR PARTS For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02 Illus. Part DESCRIPTION 8303700 Liner, Door 4449259 Glass, Inner 9759743 Retainer, Glass Hinge, Door 9760565 Right 9760566 Left (SS Model Only) 9760567 Right 9760568 Left W10208660 (Black) (Designer White) (Biscuit) Illus.
- Page 6 UPPER OVEN DOOR PARTS For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02 Illus. Part DESCRIPTION 8303700 Liner, Door Hinge, Door 9760571 Right 9760572 Left (SS Model Only) 9760573 Right 9760574 Left 4449259 Glass, Inner 4451722 Insulation, Door 4457132 Retainer, Glass 4448520 Bumper, Door...
- Page 7 For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02 W10208660 INTERNAL OVEN PARTS (Black) (Designer White) Illus. Part DESCRIPTION 9760771 Element, Broil 4448717 Rack, Oven 9760766 Element, Conventional Bake 4449154 Screw (Biscuit) (Stainless)
-
Page 8: Control Panel Parts
CONTROL PANEL PARTS For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02 (Black) (Designer White) Illus. Part 8302848 Black 8302849 White 8302850 Biscuit 8304275 Black 8304276 White 8304277 Biscuit 8303883 Microcomputer 4 W10153086 Backer, Control 8301848 Board, Latch 4449745 Screw 7 W10166944 Trim, Control... - Page 9 For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02 Illus. Part DESCRIPTION 4451759 Vent, Exhaust Blower 4457289 65mm (Upper) W10016550 45mm (Lower) 4451758 Foam, Block 4455178 Elbow, Vent Top 4455177 Elbow, Vent Bottom 4449809 Screw W10208660 TOP VENTING PARTS (Black) (Designer White) (Biscuit) Illus.
-
Page 10: Optional Parts
For Models:RBD305PRB02, RBD305PRQ02, RBD305PRT02, RBD305PRS02 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 261869 Cord Brown 72032 Black PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) OPTIONAL PARTS...
