Whirlpool RM765PXB Use And Care Manual

Self-cleaning electric built-in lower oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

UseAndCare
A Note To You
Parts And Features
5
Using Your Oven
6
E&zing
Cyde
25
Warranty
36
1400-253-1301
cell us with qudoN of cumments.

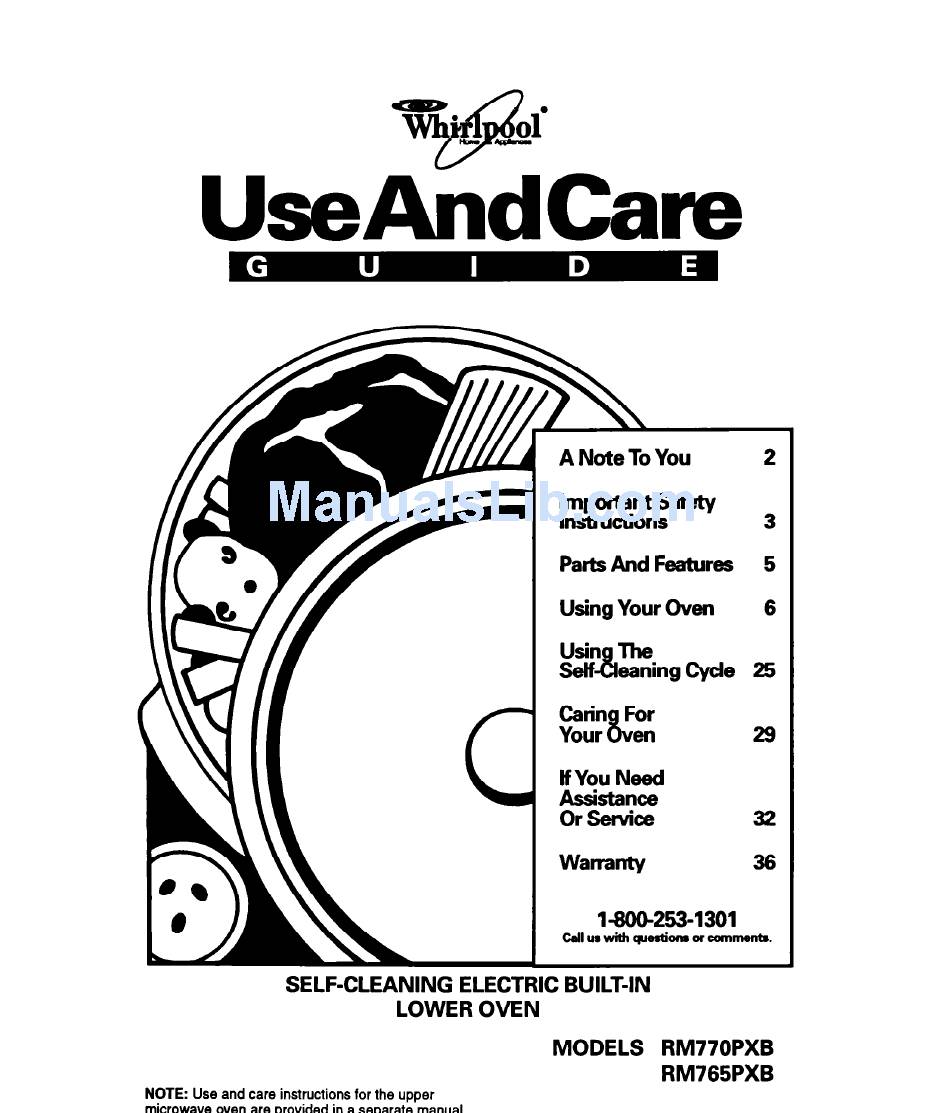

SELF-CLEANING
ELECTRIC BUILT-IN
LOWER OVEN
MODELS
RM770PXB
RM765PXB
NOTE: Use and care instructions for the upper
microwave oven are provided in a separate manual.

Advertisement

Table of Contents
loading

Related Manuals for Whirlpool RM765PXB

Summary of Contents for Whirlpool RM765PXB

  • Page 1 NOTE: Use and care instructions for the upper microwave oven are provided in a separate manual. A Note To You Parts And Features Using Your Oven E&zing Warranty 1400-253-1301 cell us with qudoN of cumments. ELECTRIC BUILT-IN LOWER OVEN MODELS Cyde RM770PXB RM765PXB...

  • Page 2: A Note To You

    A Note To You Thank you for buying a Whirlpool@ You have purchased a quality, world-class home appliance. Years of engineering into its manufacturing. To ensure that you will enjoy many years of trouble-free developed this Use and Care Guide. It is full of valuable information on how to operate and maintain your appliance properly and safely.

  • Page 3: Safety Instructions

    Important General Read all instructions before using the oven. Install or locate the oven only in accordance with the pro- vided Installation Instructions. The oven must be installed by a qualified installer. The oven must be roperly connected to electrica P supply and grounded. CAUTION: Do not store things children mi ht want above the oven.
  • Page 4 Do not heat unopened contain- ers. They could explode. The hot contents could cause burns and container particles could cause injury. Do not store flammable materi- als on or near the oven. The fumes could create an sion and/or fire hazard. When using the oven Always osition oven rack(s) in desired ocation while oven...

  • Page 5: Parts And Features

    Parts And Features This section contains captioned illustrations of your appliance. Use them to become familiar with the location and appearance of all parts and features. Upper microwave oven (see separate oven use and care guide for more information) Control panel Lower oven vent...

  • Page 6: Using Your Oven

    Using Your Oven In This Section Positioning racks and pans ... For best air circulation Using aluminum foil for baking..7 oven control..9 The electronic Setting the clock ... Using the electronic Minute Timer ..9 Using the Off/Cancel pad ...

  • Page 7: For Best Air Circulation

    For best air circulation The hot air must circulate around the pans in the oven for even heat to reach all parts of the oven. This results in better baking. Place the pans so that one is not directly over the other.
  • Page 8 The electronic Tempsmiur. elector pada Display/clock When you first plug in the oven, and ‘PF will show in the temperature after you set the clock (page 9) the display again shows ‘PF, your electricity was off for a while. Reset the clock. When you are not uslng the oven, the control is an accurate clock.

  • Page 9: Setting The Clock

    Setting the clock Push the Clock/Set pad. The colon flashes and TIME will light up in the display. Uee the Hour and Minute pads to set the time Push of day. the “up” (A) or “down” (V) pad(s) until the correct time shows in the display.

  • Page 10: Using The Off/Cancel Pad

    3. Push the Start/Enter pad. The Minute Timer will begin counting down immediately timer is started. When time is up, “End” will show in the large display and you will hear four 2-second tones. You will also hear four 1 -second tones every minute until you push one of the two Timer pads.
  • Page 11 Baking/roasting 1. Position the rack(s) properly before turning on the oven. To change rack position, front and pull out. For further information, see “Positioning racks and pans” on page 6. 2. Push the Bake pad. “350”” will light up in the small display to show the preset temperature and BAKE will light up.

  • Page 12: Adjusting The Oven Temperature

    Adjusting the oven temperature Oven temperature controls will gradually shift after years of use. So, even though your new oven is properly adjusted to provide accurate temperatures, it may cook faster or slower than your old oven. tf, after using the oven for a period of time, you are not satisfied with the temperature settings, you can adjust them by following these steps:...
  • Page 13 Broiling NOTE: Preheating is not necessary when broiling. 1. Position the rack before turning the oven on. See “Broiling rack position chart” on page 2. Put the broiler pan and food on the rack. 3. Close the door to the Broil Stop position (open about 4 inches [ 10 cm]).

  • Page 14: Broiling Tips

    Broiling rack position RACK POSITION TYPE OF FOOD/ FROM BOlTOM DONENESS Hamburger patties and thin steaks Xh’ thick or less. ’ Quickly searing food, rare and medium steaks, medium patties, ham slices, fiih steaks, frankfurters. Well-done steaks and patties, lamb chops, split chicken, pork steaks and chops, whole fish.

  • Page 15: Using The Electronic

    Using the electronic The electronic MEALTIMER control will turn the oven on and off at times you set, even when you are not around. Delayed time baking/roasting is ideal for foods which do not require a preheated oven, such as meats and casseroles.
  • Page 16 4. Use the Hour and Minute pads to set the desired cooking time. Push the “up” (A) or “down” (V) pad(s) until the correct time shows in the display. This example shows a desired baking/roasting time of 30 minutes. 5. Push the Start/Enter pad. “Lo”“, HEAT, BAKE, TIMED and the set cook time will light up in the display to show that the oven is heating.
  • Page 17 2. Push the Bake pad to enter the Bake mode. Use the Temp pad(s) to set the desired temperature. Push A to raise the temperature or V to lower the temperature in 5°F incre- ments. Use these pads until the desired temperature shows in the small display.
  • Page 18 To delay start and stop automatically Method l-Using Cook Time and Delay Start Time: 1. Position the oven rack(s) properly and put food in the oven. 2. Push the Bake pad to enter the Bake mode. Use the Temp pad(s) to set the desired temperature.
  • Page 19 6. Use the Hour and Minute pads to set the desired start time. Push the “up” (A) or “down” (V) pad(s) until the correct time shows in the display. This example shows a desired start time of 2 o’clock. The oven will automatically shut off at 230 (the set start time plus the set cook time), 7.
  • Page 20 Method 2-Using Delay Time and Stop Time: 1. Position the oven rack(s) properly and put food in the oven. 2. Push the Bake pad to enter the Bake mode. Use the Temp pad(s) to set the desired temperature. Push A to raise the temperature or V to lower the temperature in 5°F incre- ments.
  • Page 21 6. Use the Hour and Minute pads to set the desired stop time. Push the “up” (V) pad(s) until the correct time shows in the display. This example shows a desired stop time of 2:30. This provides a cook time of 30 minutes (the difference between the start and stop times).
  • Page 22 Method 3-Using Cook and Stop Time: 1. Position the oven rack(s) properly and put food in the oven. 2. Push the Bake pad to enter the Bake mode. Use the Temp pad(s) to set the desired temperature. Push to raise the temperature or V to lower the temperature in 5°F incre- ments.
  • Page 23 This example shows a desired stop time of 2:30. The oven will automatically start cooking at 2:00 (the set stop time minus the set cook time). 7. Push the Start/Enter pad. DELAY and BAKE will light up in the display to show that the oven is programmed to start at a later time.

  • Page 25: Using The Self-Cleaning Cycle

    Using The Self-Cleaning Cycle In This Section How the cycle works ........25 Before you start .

  • Page 26: Setting The Controls

    Remove the broiler pan grid and any pots and pans being stored in the oven. NOTE: You can clean the broiler pan (without grid) in the oven if you have first removed most of the soil by hand-cleaning or in a dishwasher. If most of the soil is not removed, too much smoking will occur.
  • Page 27 If a cleaning cycle other than 3 hours is desired, use the Hour and Minute pads to set the desired cleaning time. Push the “up” (A) or “down” (V) pad(s) until a time between 2-4 hours shows in the display. Use 2 hours for light soil.
  • Page 28 To delay the start using Delay Start Time: Push the Clean pad. Push the Delay Start Time pad. START, TIME, CLEAN and “cln” will light up. Use the Hour and Minute pads to set the desired start time. Push the “up” (A) or “down”...

  • Page 29: Special Tips

    6. When the oven reaches normal baking/ roasting ternPemturas, LOCKED goes off and ‘End” and CLEAN TIME come on. Move the Lock Lever back to the left. DO FORCE Wall until it moves easily. To stop the Self-Cleaning cycle at any time: 1.
  • Page 30 Cleaning chart Use the following table to help you clean all parts of your oven. PART WHAT TO USE Control panel Sponge and warm, soapy water Paper towel and spray glass cleaner Exterior surfaces Sponge and warm, soapy (other than control water panel) Broiler pan and grid...

  • Page 31: The Oven Light

    The oven light The oven light will come on when the oven door is opened. To turn on the light when the oven door is closed, use the Oven Light Switch on the control panel. Use the switch again to turn off the light.
  • Page 32 If You Need Assistance Or Sewice This section is designed to help you save the cost of a service call. Part 1 of this section outlines possible problems, their causes, and actions you can take to solve each problem. Parts 2 and 3 tell you what to do if you still need assistance or service.
  • Page 33 POSSIBLE PROBLEM The oven is not level. Cooking results are not what you The oven temperature expected low or too high. The oven was not preheated before baking. The recipe has never been tested or is not from a reliable source.
  • Page 34 Whirlpool appliance. To locate FSP replacement refer to Step 3 above or call the Whirlpool Consumer Assistance 5. If you are not satisfied how the problem...

  • Page 35: Warranty

    B. Repairs when your microwave oven/range use. C. Pickup and delivery. Your microwave oven/range D. Damage to your microwave oven/range use of products not approved by Whirlpool. E. Any labor costs during limited warranty. F. Repairs to parts or systems caused by unauthorized WHIRLPOOL...
