Whirlpool RBS245PR Parts List

Whirlpool RBS245PR Parts List

24" built−in electric single oven self−clean
Hide thumbs Also See for RBS245PR:
1
2
3
4
5
6
7

Advertisement

Table of Contents

See also: Use and Care Manual , Instruction and Installation Manual

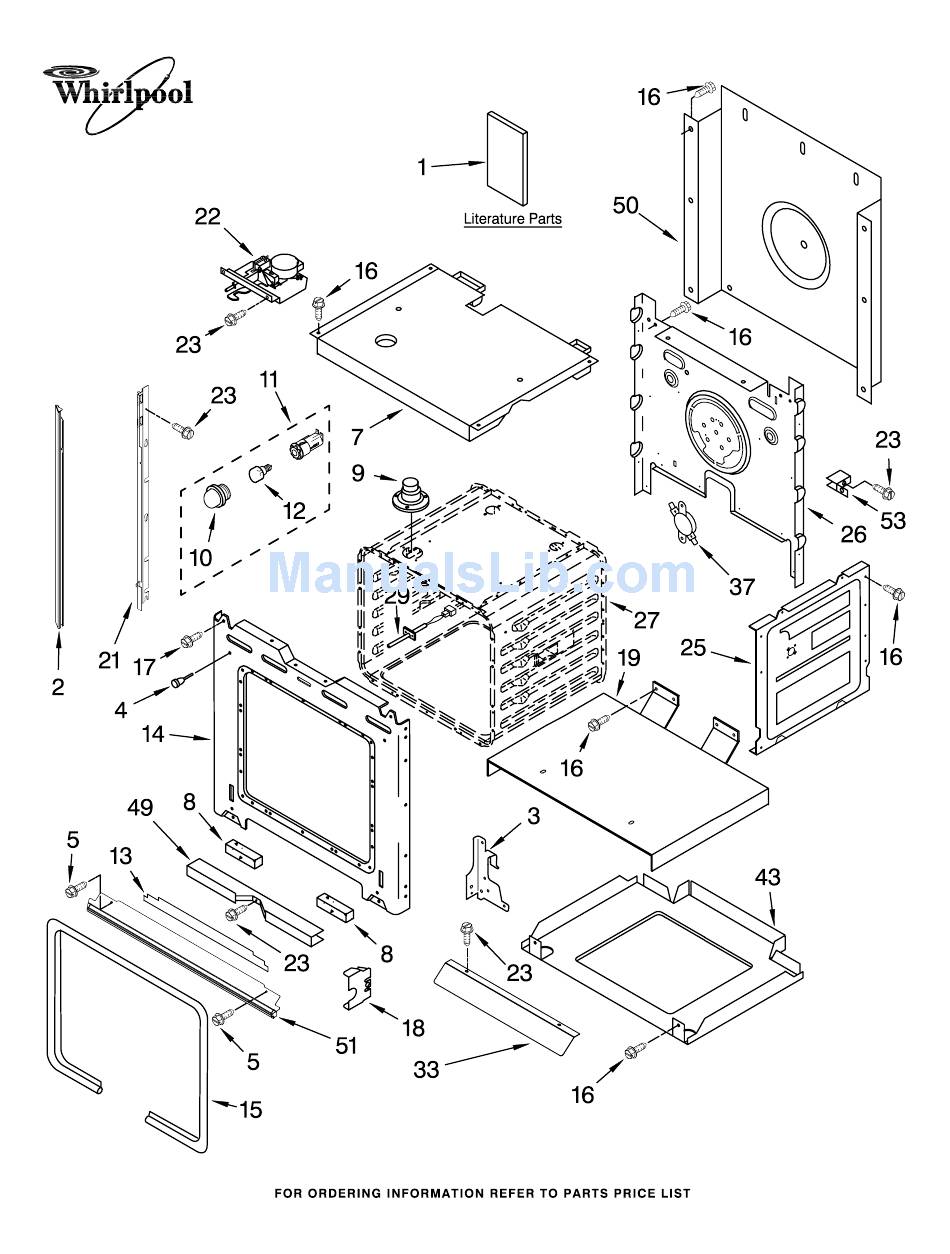

OVEN PARTS

24" BUILT−IN ELECTRIC
For Models:RBS245PRB00, RBS245PRQ00, RBS245PRT00, RBS245PRS00
SINGLE OVEN
SELF−CLEAN
(Black)
(Designer White) (Biscuit)
(Stainless Steel)
1
Part No. 8186430
07−06 Litho in U.S.A. (dmm)
