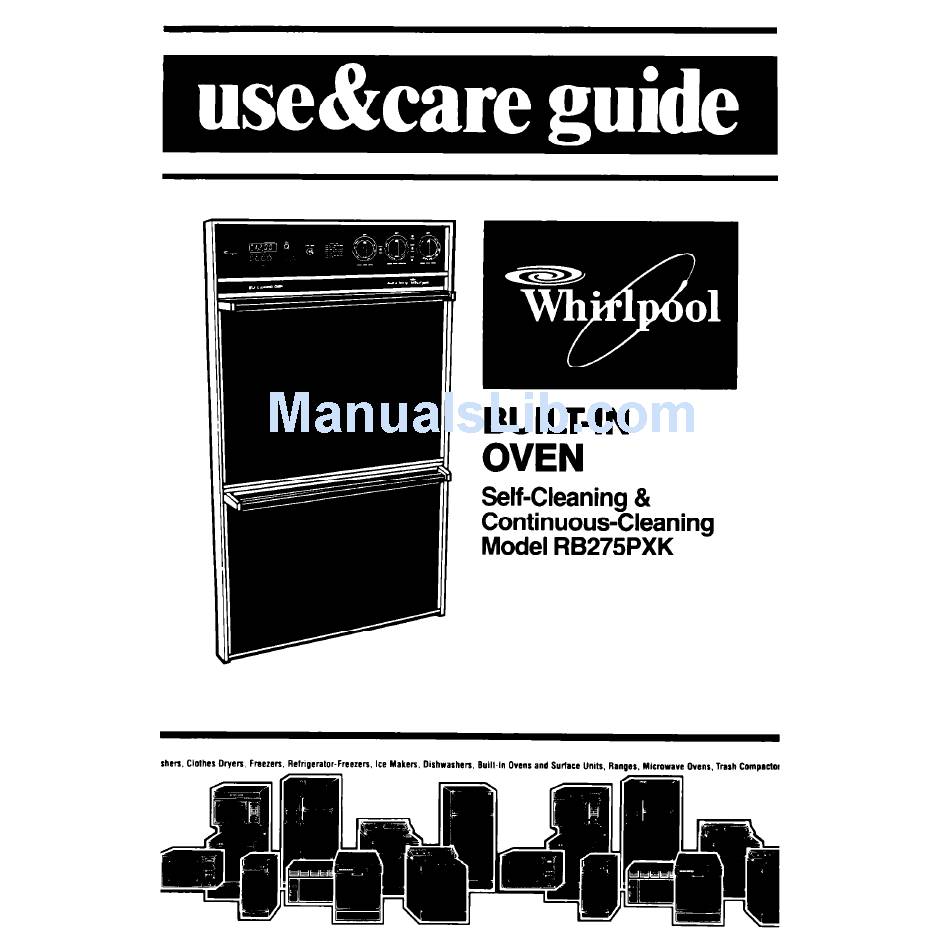

- Page 1 BUILT-IN OVEN Self-Cleaning & Continuous-Cleaning Model RB275PXK shen. Clothes 0~3’s FmeZeK. Relnpcnlor-Fraszco. Ice Makers. Dishwashers Bulll-In Ovens and Sutlace Unih. Ranges. Mlcmwave Ovens. Trash Com~actot...
-
Page 2: Table Of Contents
Lower Oven Adjusting the Oven Temperature Control Broiling in the Upper Oven Broiling in the Lower Oven 01987 Whirlpool Before you use your oven Read and carefully follow the “INSTALLATION your oven. Read this Use & Care Guide and the Cooking and safety information. -
Page 3: Important Safety
IMPORTANT SAFETY INSTRUCTIONS DO NOT allow children to use or play with any part of the oven, or leave them unattended near it. They could be burned or injured 2. DO NOT store things children might want above the oven. Chil- dren could be burned or injured... -
Page 4: Parts And Features
Parts and features Model RB275PXK OVEN / VENT (on toPI CONTR PANEL SELF-CLEAN / :l:::::y HEAT SEAL BROIL y ELEMENT BAKE ELEMENT SILICONE HEAT A CCAI Copy your Model and Serial Numbers here If you need service, or call with a question, have this information ready: 1. -
Page 5: Using Your Oven
OVEN LIGHT ELECTRONIC MEALTIMER’ CLOCK/MINUTE TIMER SWITCH Using your oven The Electronic MEALTIMER* The Electronic MEALTIMER* Clock handles The following operating hints may be helpful when using the clock: The numbers on the display change When setting the Time-of-Day Clock, the display Twenty-five minutes past Forty-five minutes past... -
Page 6: Clock
When using the Bake Hours and/or shows hours and minutes. Eleven-hours Two-hours and fifteen minutes. minutes. Other operating hints may be found on page Setting the Electronic Clock When you first plug in the oven or if your electricity goes off for a while, each light in the display will flash... -
Page 7: Minute
Using the Electronic Minute Timer The Minute Timer does not start or stop the oven. It works like a kitchen timer. It can be set in minutes and seconds up to 99 minutes. You will hear beeps when the set Push in the Min/Sec Timer Button. -
Page 8: Baking In The Upper &&I
Baking in the Upper Oven Position the rack(s) properly before turning on the oven. To change rack posltlon, pull rack out to stop, raise front edge lift out. 2. Set Upper Oven Selector to BAKE. 4. Put food in the oven. Note: Oven racks, walls and doors will be hot. -
Page 9: Baking In The Lower Oven
Baking in the Lower Oven Position the rack(s) properly before turning on the oven. To change rack position, pull rack out to stop, raise front edge lift out. 2. Set the Lower Oven Temperature Control to the baking temperature you want. The Lower Oven Signal Light will come on. -
Page 10: Adjusting The Oven Temperature Control
Adjusting the Oven Temperature Control Does your oven seem hotter or colder of your old oven may have shifted gradually Your new oven is properly adjusted to provide comparing to your old oven, the new design If after using the oven for a period of time, you are not satisfied with the temperature settings, they can be adjusted... -
Page 11: Broiling In The Upper Oven
Broiling in the Upper Oven Position the rack before turning the oven on. See broil chart in the “Cooking Guide” or a reliable cookbook for recommended rack positions. 3. Close the door to the Broil Stop position, (open about 4 inches, 10.2 cm). -
Page 12: Broiling In The Lower Oven
Broiling in the Lower Oven Position the rack before turning the oven on. See broil chart in the “Cooking Guide” or a reliable cookbook for recommended rack positions. 3. Close the door to the Broil Stop position, (open about 4 inches, 10.2 cm]. - Page 13 as meats and casseroles. Do not use the automatic‘cycle etc...undercooking will result. To start baking now and shut off automatically: Position the oven rack(s) properly, and place the food in the upper oven. 3. Set Upper Oven Selector on TIMED BAKE.
- Page 14 7. When the baking tlme is com- plete, you will hear a beeping sound. Push the Bake Hours Button to stop the beeping or the beep- ing will stop automatically after 1-2 minutes. Turn the Upper Oven Selector and Upper Oven Temper- ature Control to OFF Delay start and automatic...
- Page 15 Set the clock for the length baking time you want: Push in the Bake Hours auttorl and turn the Set Knob un!ll the ler!gth of baking time yo,, wani shows in the Display. This example shows 2 hours, 15 minutes. Buke Hours can be set for UT) to 11 hours, 59 minutes.
-
Page 16: Oven Vent
Other Operating Hints If you want to check what you have programmed, function you want to check. The display for that function. If you want to check the time of day, press the Min/Sec Buttons. The display will show the time of day. A rapidly flashing signal light indicates... -
Page 17: Caring For Your Oven
Caring for Your Oven Control Panel and Knobs First make sure the control knobs set to OFF, then pull knobs straight off. 3. Wash control knobs in warm soapy water. Rinse well and dry. warm soaDv water or srxav glass cleaner bhd a soft cl&h io wipe the control panel. -
Page 18: Using The Self-Cleaning Cycle
Using the Self-Cleaning Cycle The self-cleaning cycle uses very hlgh heat to burn away make sure you understand exactly how to use the cycle Start Before You Clean the shaded areas by hand. They do not get hot enough dur- ing the Self-Clean cycle for soil to... - Page 19 Setting the Controls Be sure the kitchen is ventilated during normal smoke and heat odors to disappear Set the Upper Oven Selector the Upper Oven Temperature Con- trol on CLEAN. 3. Push in and release the Self-Clean Button. A 3-hour Self-Cleaning cycle will be set automatically.
- Page 20 6. After the upper oven is cool, wipe off any residue or ash with a damp cloth. If needed, touch up spots with a soapy steel-wool pad. To stop the cleaning cycle at any time: Push in and release the Self-Clean Button.
- Page 21 If the cleaning cycle doesn’t get the upper oven as clean as you expected, the cycle may not have been set long enough or you may not have prepared the oven prop- erly. Set the cleaning time longer the next time and hand clean areas noted on page How It Works...
-
Page 22: The Continuous-Cleaning
Using foil on the oven bottom is recommended spills from pies and casseroles. It must be used properly. heavy-dutyl8-inch (45 cm] aluminum from your Whirlpool Appliance dealer. Lift the cool bake element slightly to lift the feet off the oven bottom. - Page 23 Tips Cleaning window and racks are not coated. The oven 2. Theoven door does not get as hot as the walls. Some hand cleaning needed. more broiling than baking, If you do Usealurr linum foil on the oven bottom accordina not burn away and may stain the bottom.
-
Page 24: Cleaning Chart
Cleanlng Heavy-duty aluminum lower Oven or order a foil kit [Part No. vour 241430) from Whirlpool dealer or TECH-CARE” ice company Most fat spatters oven walls and floor will gradually presentably clean HOW TO CLEAN Wipe off regularly when oven is cool. -
Page 25: Oven Lights
The Oven Lights Both oven lights will come on when you push the Oven light switch on the control panel. Push the switch again to shut them off. Both lights will also come dn when an oven door isopened. Remove the bulb cover in the back of the oven by pulling out and push- ing the wire holder to the side. -
Page 26: If You Need Service Or Assistance
If you need service or assistance, we suggest you follow these five steps: Performance problems often result from little things you can find and fix yourself without tools of any kind. If nothing operates: Is the oven wired into a live circuit with the proper voltage? (See “ln-... - Page 27 FSP is a registered trademark Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Whirlpool appliance. replacement parts will fit right and work right, because they are made to the same exacting specifications...
- Page 28 God or use of products not approved Any labor costs during the limited warranty. WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUEN- TIAL DAMAGES. Some states do not allow the exclusion consequentlal...
