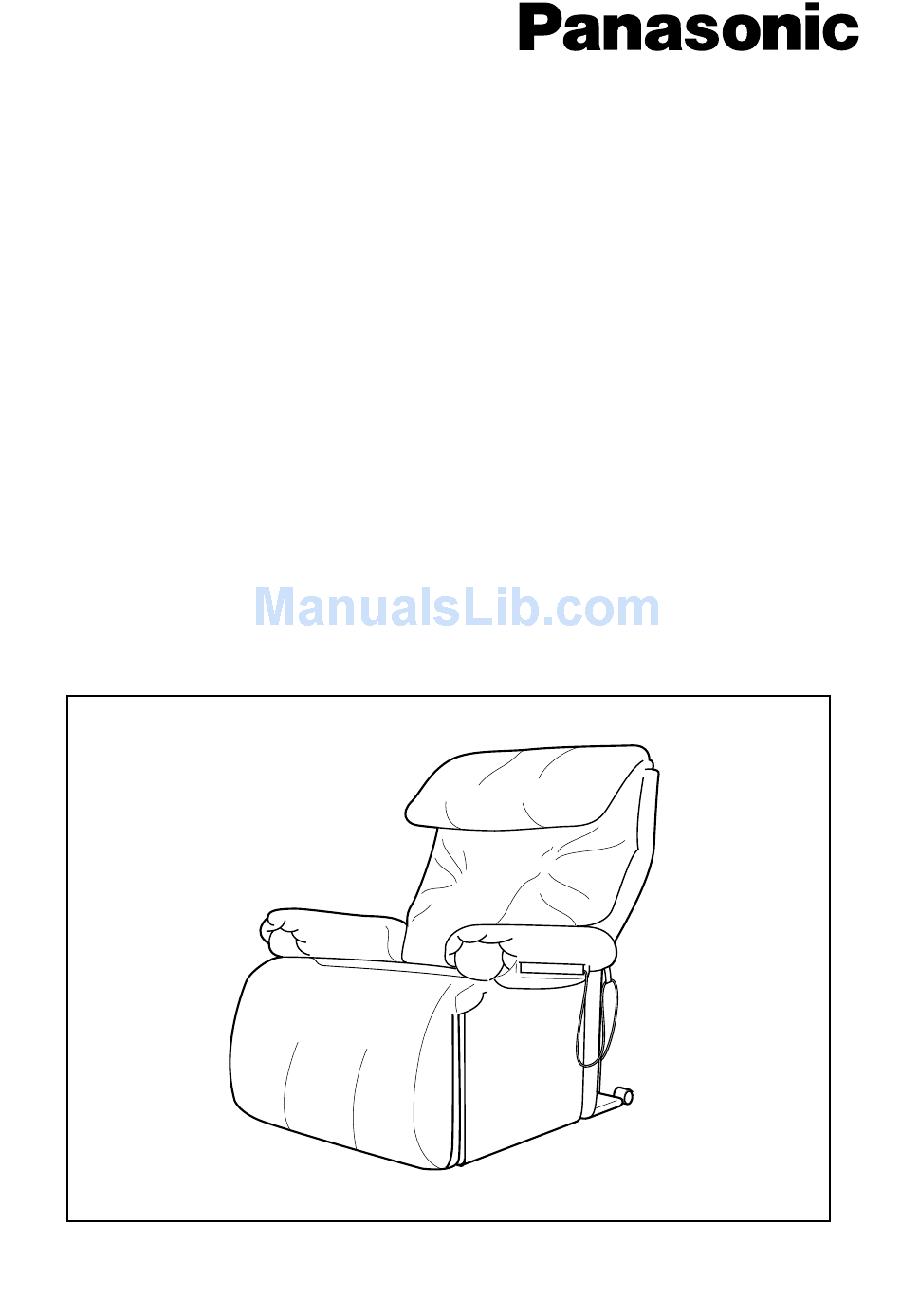

Operating Instructions Instrucciones de funcionamiento Household Massage Lounger Silla de masaje para el hogar EP1014 Model No. EP1014 Modelo No. Before operating this unit, please read these instructions completely and save this manual for future use. Antes de utilizar esta unidad, lea completamente estas instrucciones y guarde este manual para utilizarlo en el futuro en caso de ser necesario.
Thank you for purchasing the Panasonic Household Massage Lounger EP1014. For optimum performance and safety, please read these instructions carefully. IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using the massage lounger.
SAFETY PRECAUTIONS WARNING: To avoid risk of injury 1. This product should not be used by pregnant women, persons who are ill, or persons with back, neck, shoulder or hip pain, or conditions of any kind, without consulting a physician prior to use. Do not use on any area of the body that has received medical treatment without consulting a physician prior to use.
OPERATING PRECAUTIONS WARNING: To avoid damage to the chair 1. The chair is designed for a maximum user weight of 264 lbs. (120 kg). Exceeding the maximum weight may cause permanent damage to the massage mechanism and/or other components of the chair. Any such damage is deemed to be user abuse and is not covered under the Limited Warranty.
GROUNDING INSTRUCTIONS • This product must be grounded. If it should malfunction, grounding provides the path of least resistance for electric current to reduce the risk of electric shock. • This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.
BEFORE USE PLACE OF USE • Do not use the massage lounger where it will be exposed to direct sunlight for long periods of time. Overexposure to harsh light can discolor or harden the cover. • Do not use the massage lounger in hot or humid places or places where it may become wet from rain, splashing or dripping water, etc.
RECLINING THE CHAIR By using the reclining button on the controller, the legrest can be raised and lowered automatically in concert with the movement of the massage lounger’s backrest. • To avoid possible tipping of the chair, do not sit or lean on the backrest while chair back is in a reclined position.
HOW TO USE TO START/STOP MASSAGE ACTION Before using, first read all the instructions including the warnings and safety and operating precautions, as well as the section on programmed and manual massage. 1. To operate the massager, press the “on/off” button. •...
LEG MASSAGER OPERATION 1. Press the leg massage “on/off” button to turn on the leg massager. • Check to be sure that the operation indicator lamp on the leg massage on/off button is lit. 2. To turn off the leg massager, press this leg massage on/off button again.
PROGRAMMED MASSAGE First read and familiarize yourself with the safety and operating precautions. 1. Press the “on/off” button. 2. Use the “massage heads adjustment” button (neck roller position) to toggle from the highest (tallest) setting “1” to the lowest (shortest) setting “5”, in order to set the massage heads to the desired position for your neck.
MANUAL MASSAGE First read and familiarize yourself with the safety and operating precautions. Manual Operation knead down roll intensity down width stroke narrow 24in. 4in. wide Kneading massage (upward & downward) 1. Press the “knead” button. Each time you press the knead button, the kneading direction alternates between upward and downward.
Page 14
MANUAL MASSAGE Kneading rolling massage 1. Press the “knead” button and the “roll” The massage heads start the kneading rolling massage. 2. To raise the massage heads, press the “up” • All functions that include rolling are available for the entire back, or for a limited section of the back, by pressing the “stroke”...
Page 15
Massage heads up-down adjustment Use of the up or down adjustment button allows you to adjust the up and down down direction of the massage heads. To move the massage heads up, press and hold the “up” press the “down” you want.
BACK CUSHION AND HEADREST Headrest Back cushion • Fasten the back cushion to the chair and the headrest and insert the weighted flap through the strap attached behind the chair. • If you prefer a stronger massage, remove the back cushion. •...
DETAILS OF PROGRAMMED MASSAGE Whole back course Complete massage including neck, shoulders, back stretching and lower Kneading rolling/ back Neck and shoulder course Concentrated massage of neck and shoulders Kneading rolling/ Lower back course Concentrated massage of lower back Tapping rolling/ * The above diagrams have been abbreviated to allow easy understanding of the massage action.
MASSAGE HEADS’ RANGE OF MOVEMENT • The vertical movement of the massage heads can be set for different areas, giving you a massage any place you like from the neck to the lower back for all massage types. Kneading (upward/downward), Kneading rolling, and Regional kneading rolling. Massage range width: 2 15/16 in.
TROUBLESHOOTING GUIDE Before requesting service for this unit, check the table below for the possible cause of the problem. Some simple checks or minor adjustment on your part may eliminate the problem and restore proper operation. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, call us at 1-800-338-0552 to locate the servicer near to you.
SPECIFICATIONS Power source: Power consumption: Kneading speed: Tapping speed: Rolling massage speed: Massage width: Back rolling width/tapping width: Narrow: Approx. 3 5/16 in. (85 mm) Massage heads up/down travel: Regional back rolling: Intensity adjustment: Shoulder position adjustment: Leg massage speed: Automatic shut-off: Dimensions (H x W x D): Reclining angle:...
Gracias por su compra de la silla de masaje para el hogar modelo EP1014 de Panasonic. Para obtener un rendimiento y seguridad óptimos, lea cuidadosamente estas instrucciones. INSTRUCCIONES DE SEGURIDAD IMPORTANTES Cuando se utiliza un aparato eléctrico deben tomarse siempre precauciones básicas, incluyendo las siguientes: Lea todas las instrucciones antes de utilizar la silla de masaje.
PRECAUCIONES DE SEGURIDAD ADVERTENCIA: Para evitar lesiones 1. Las mujeres embarazadas, las personas enfermas o que tengan dolores en la espalda, cuello, hombros o caderas, o las que padezcan cualquier otra condición, no deberán utilizar este aparato sin consultar antes a un médico. No lo utilice tampoco en ninguna parte que haya recibido tratamiento médico sin consultar antes a un médico.
PRECAUCIONES PARA LA OPERACIÓN PRECAUCIÓN: Para evitar estropear la silla 1. El peso máximo del usuario deberá ser de 264 lbs. (120 kg). Si se excede el peso máximo, el mecanismo de masaje y/u otros componentes de la silla podrán sufrir daños permanentes.
INSTRUCCIONES PARA LA CONEXIÓN A TIERRA • Este producto debe ser conectado a tierra. Si funciona mal, la conexión a tierra proporcionará un camino de mínima resistencia a la corriente eléctrica para reducir el riesgo de sufrir una descarga eléctrica. •...
IDENTIFICACIÓN DE PARTES SILLA DE MASAJE Cojín de respaldo • Se coloca en la silla con una cremallera. • Quítelo para recibir un masaje más fuerte. CONTROLADOR Botón de encendido/apagado Luz indicadora de funcionamiento Botones de reclinación Botones del proceso de masaje programado Botón de masaje amasando y rodando (hacia arriba/hacia abajo)
ANTES DE UTILIZAR LA SILLA DE MASAJE LUGAR DE UTILIZACIÓN • No utilice la silla de masaje donde quede expuesta a la luz solar directa durante largos periodos de tiempo. La sobreesposición a la luz intensa puede decolorar o endurecer la cubierta. •...
RECLINACIÓN DE LA SILLA Utilizando el botón de reclinación del controlador, el apoyo para las piernas podrá subirse o bajarse automáticamente junto con el movimiento del respaldo de la silla de masaje. • Para evitar que vuelque la silla, no se siente ni se apoye en el respaldo mientras éste está reclinado. •...
UTILIZACIÓN PARA INICIAR/DETENER LA ACCIÓN DE MASAJE Antes de utilizar la silla de masaje, lea todas las instrucciones, incluyendo las advertencias y precauciones de seguridad y operación, y también la sección del masaje programado y manual. 1. Para utilizar la silla de masaje, pulse el botón “on/off”. •...
OPERACIÓN DEL MASAJEADOR DE LAS PIERNAS 1. Pulse el botón “on/off” de masaje de las piernas para encender el masajeador de las piernas. • Asegúrese de que la luz indicadora de operación del botón de encendido/apagado de masaje de las piernas esté...
MASAJE PROGRAMADO Lea y familiarícese primero con las precauciones de seguridad y operación. 1. Pulse el botón “on/off”. 2. Utilice el botón de ajuste de las cabezas de masaje (neck roller position) para cambiar entre el ajuste más alto “1” y el ajuste más bajo “5”, para que las cabezas de masaje se ajusten en la posición deseada para su cuello.
MASAJE MANUAL Lea y familiarícese primero con las precauciones de seguridad y operación Manual Operation knead down roll intensity down width stroke narrow 24in. 4in. wide Masaje amasando (hacia arriba/hacia abajo) 1. Pulse el botón “knead” . Cada vez que usted pulsa este botón, la dirección del masaje amasando cambia entre masaje hacia arriba y masaje hacia abajo.
Page 32
MASAJE MANUAL Masaje amasando y rodando 1. Pulse el botón “knead” y el botón “roll” Las cabezas de masaje empiezan el masaje amasando y rodando. 2. Para subir las cabezas de masaje, pulse el botón “up” • Todas las funciones que incluyen el masaje rodando se encuentran disponibles para toda la espalda, o para una sección limitada de la espalda, pulsando el botón de ajuste “stroke”.
Page 33
Ajuste de subida y bajada de las cabezas de masaje La utilización de los botones de ajuste de subida y bajada le permiten ajustar la down dirección ascendente o descendente de las cabezas de masaje. Para subir las cabezas de masaje, mantenga pulsado el botón “up” bajarlas, mantenga pulsado el botón “down”...
COJÍN DEL RESPALDO Y APOYO PARA LA CABEZA Apoyo para la cabeza Cojín del respaldo • Apriete el cojín del respaldo a la silla y al apoyo para la cabeza e inserte la lengüeta con peso a través de la correa colocada detrás de la silla.
DETALLES DEL MASAJE PROGRAMADO Proceso en toda la espalda Masaje completo incluyendo el cuello, los hombros, estiramiento de la espalda y parte Amasando y rodando/ baja de la espalda Rodando Proceso en el cuello y en los hombros Rodando Masaje concentrado en el cuello y en los hombros Amasando y...
ALCANCE DE MOVIMIENTO DE LAS CABEZAS DE MASAJE • El movimiento vertical de las cabezas de masaje se puede ajustar para zonas diferentes, pudiendo usted recibir un masaje donde quiera, desde el cuello a la parte inferior de la espalda. Masajes amasando (ascendente/descendente), amasando y rodando, y amasando y rodando en zona localizada.
GUÍA PARA LA LOCALIZACIÓN Y SOLUCIÓN DE PROBLEMAS Antes de solicitar reparaciones para esta unidad, verifique la tabla de abajo para ver si aparece la causa probable del problema. Algunas verificaciones sencillas o pequeños ajustes de su parte pueden eliminar el problema y hacer que la unidad funcione correctamente.
ESPECIFICACIONES Fuente de energía: Consumo de energía: Velocidad amasando: Velocidad golpeando: Velocidad de masaje rodando: Anchura de masaje: Anchuras de masaje rodando/ golpeando en la espalda: Desplazamiento ascendente/ descendente de las cabezas de masaje: Masaje rodando localizado en la espalda: Repetición automática en una gama de 4 3/4" (120 mm) Ajuste de intensidad: Ajuste de la posición de los hombros: Velocidad de masaje para el apoyo...
Page 40
Panasonic Consumer Electronics Company One Panasonic Way 4A-3 Secaucus, New Jersey 07094 1-800-338-0552 for questions and comments. www.panasonic.com/massage No. 1 EN, SP Printed in USA...
