BL-1001
August 7, 2018
®
YB110/YB230 FIREYE
™
BurnerLogiX
MICROPROCESSOR-BASED
INTEGRATED BURNER
MANAGEMENT CONTROL
APPROVED
DESCRIPTION
®
The Fireye
BurnerLogix™ System is a microprocessor based burner management control system
designed to provide the proper burner sequencing, ignition and flame monitoring protection on auto-
matically ignited oil, gas, and combination fuel burners. In conjunction with limit and operating con-
trols, it programs the burner/blower motor, ignition and fuel valves to provide for proper and safe
burner operation. Through SMART LED'S, the control provides current operating status and lockout
information in the event of a safety shutdown. Optional VFD and LCD displays are available that
may be either plugged in or mounted remotely to give full language descriptors of current status and
diagnostic lockout information. Refer to BurnerLogix PROGRAMMER SELECTION later in this
document for the various combinations of programmer and display modules.
A complete BurnerLogix system includes the YB110 (YB230) chassis equipped with the type of
flame amplifier required for the application, appropriate flame detector, plug-in programmer mod-
ule, wiring base and optional alpha-numeric display. Interchangeable programmer modules allow for
complete versatility in selection of function, timing and flame failure response times.
The optional alpha-numeric display has 2 lines by 16 characters per line. It is available in either vac-
uum fluorescent or liquid crystal formats. The advantage of VFD is high brightness and extended
temperature range down to –40°F. Both displays contain a fully functional keypad. You can easily
scroll through the various menus to view the current operating status, review programmer configura-
tion, and lockout history. When mounted remotely, the displays provide NEMA 4x(IP66) protection.
An advantage of the BurnerLogix control family is the ability to set many of the operating parame-
ters associated with proper and reliable burner operation allowing inventory of various programmer
types to be kept to a minimum.

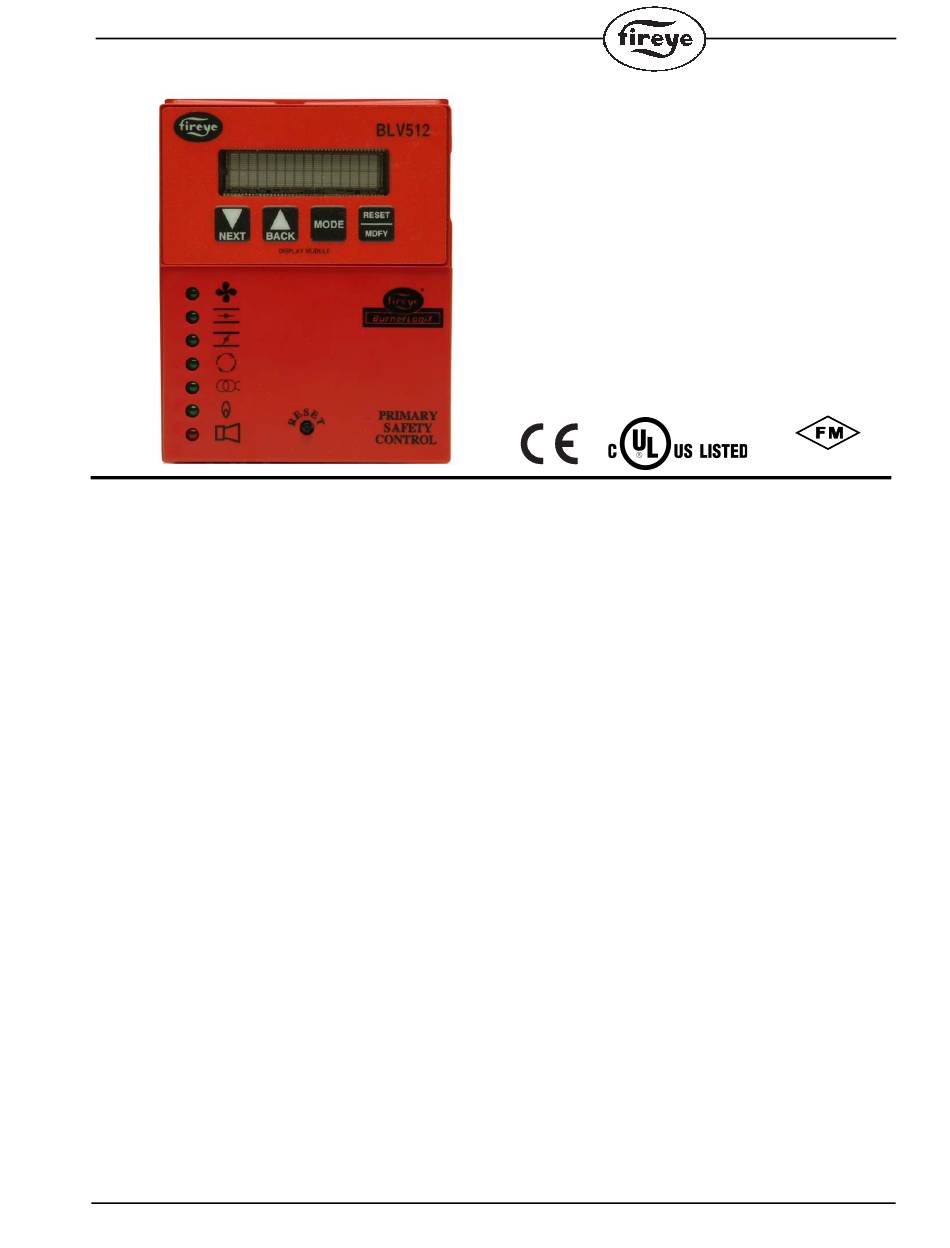

The YB110 (YB230) is a chassis/flame amplifier module complete with mounting screws and blank
display module. The display module (BLV512 (vfd) or BLL510 (lcd)), if required, must be ordered
separately. Interchangeable YP programmer modules allow for complete versatility in selection of
control function, timing, and flame scanning means. Functions such as pre-purge time, recycling or
non-recycling interlocks, high fire proving interlock, and trial for ignition timing of the pilot and
main flame are determined by the programmer module. The BurnerLogix system can be used with
ultra-violet, auto-check infrared, flame rod, self-check ultra-violet flame scanners or direct coupled
integrated scanners by choosing the proper chassis/flame amplifier module.
