C A R D R E A D E R
ECR501
ECR501 User Manual
．Package Content
Extreme Digtal▼
SD/SDHC/SDXC/MMC/RS MMC▼
MicroSD▼
eSATA
M2▲
CFI/CFII/MD▲
MS/MS Pro/MS Pro Duo▲
USB3.0
USB2.0
USB2.0
USB2.0
USB2.0
USB2.0
EN
ECR501
Screws (for case) *4
Screws for 3.5" HDD*4
Screws for 2.5" HDD *8
User manual
．Installation
．connection cables
EN
(e) internal motherboard USB 3.0 connector
( f ) 4-Pin PSU molex connector
(g) internal motherboard USB 2.0 connector
(h) SATA 7 Pin connector
．HDD installation

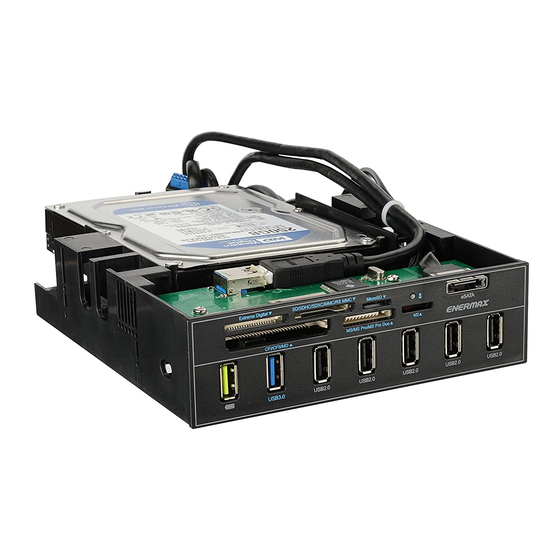

EN Additional space allows to mount one 3.5" and two 2.5" SSD/HDD.
EN
Place the 3.5" HDD into the upper mounting bay
Place the 2.5" SSD / HDD into the bottom
and screw the HDD securely with 4 screws.
mounting bay and screw the HDD securely.
