Primex XR Quick Install Manual

72mhz synchronized time solution

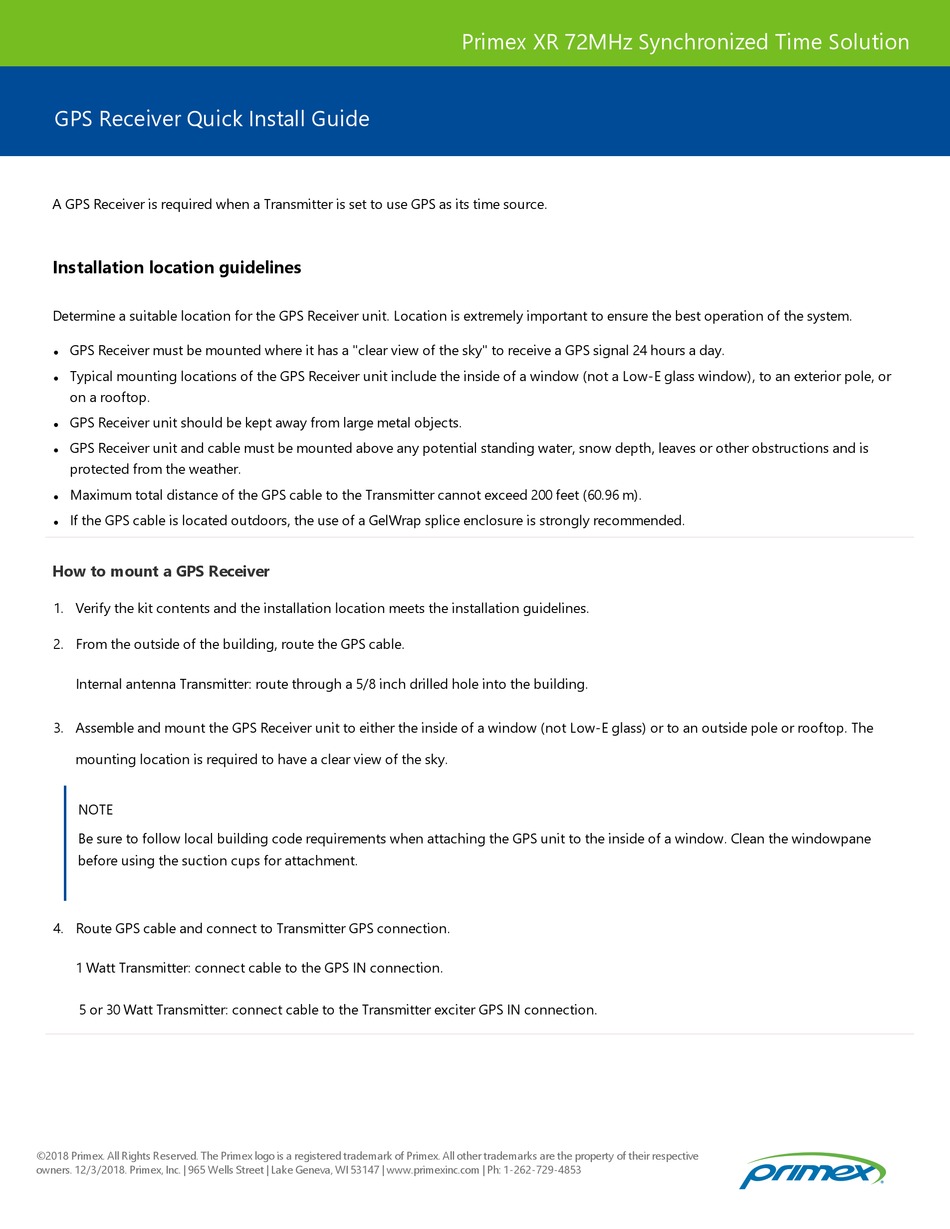

GPS Receiver Quick Install Guide

A GPS Receiver is required when a Transmitter is set to use GPS as its time source.

Installation location guidelines

Determine a suitable location for the GPS Receiver unit. Location is extremely important to ensure the best operation of the system.

GPS Receiver must be mounted where it has a "clear view of the sky" to receive a GPS signal 24 hours a day.

Typical mounting locations of the GPS Receiver unit include the inside of a window (not a Low-E glass window), to an exterior pole, or

on a rooftop.

GPS Receiver unit should be kept away from large metal objects.

GPS Receiver unit and cable must be mounted above any potential standing water, snow depth, leaves or other obstructions and is

protected from the weather.

Maximum total distance of the GPS cable to the Transmitter cannot exceed 200 feet (60.96 m).

If the GPS cable is located outdoors, the use of a GelWrap splice enclosure is strongly recommended.

1. Verify the kit contents and the installation location meets the installation guidelines.

2. From the outside of the building, route the GPS cable.

Internal antenna Transmitter: route through a 5/8 inch drilled hole into the building.

3. Assemble and mount the GPS Receiver unit to either the inside of a window (not Low-E glass) or to an outside pole or rooftop. The

mounting location is required to have a clear view of the sky.

NOTE

Be sure to follow local building code requirements when attaching the GPS unit to the inside of a window. Clean the windowpane

before using the suction cups for attachment.

4. Route GPS cable and connect to Transmitter GPS connection.

1 Watt Transmitter: connect cable to the GPS IN connection.

5 or 30 Watt Transmitter: connect cable to the Transmitter exciter GPS IN connection.

owners. 12/3/2018. Primex, Inc. | 965 Wells Street | Lake Geneva, WI 53147 | www.primexinc.com | Ph: 1-262-729-4853
