Summary of Contents for Devine DI-P

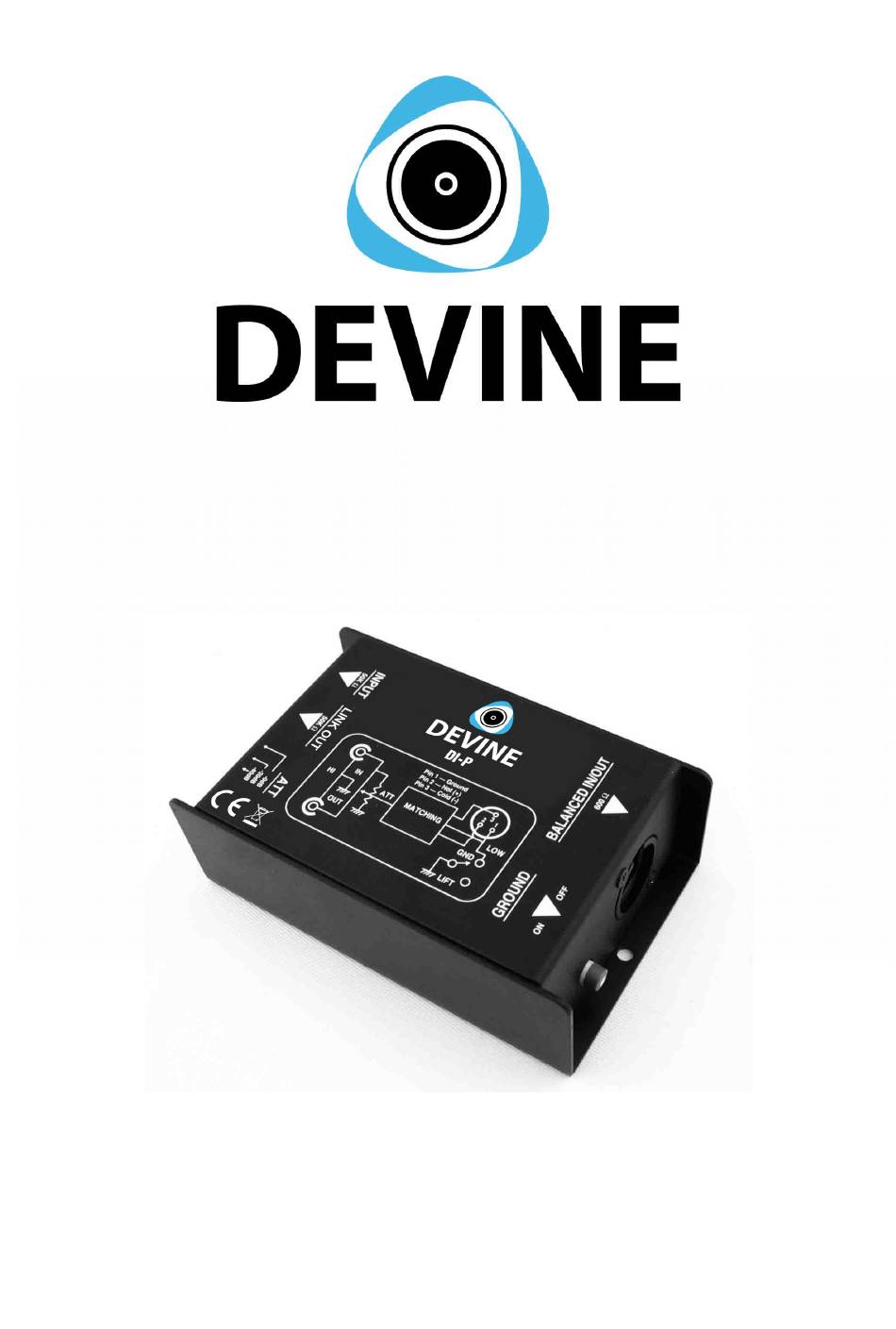

- Page 1 DI-P Passive DI box User manual All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 26-01-2016 RV Revision date + author initials:...
- Page 2 Also check the contents of the box to make sure all necessary parts are included. If the DI-P fails to operate properly, or if you have any problems while using it, disconnect it from the signal chain and contact your local dealer for more information and/or help.
-
Page 3: Safety Instructions
- Use of the device in ways other than described in this user manual may cause damage and/or injury. Devine cannot be held responsible for any damage or injury caused by improper use. Storage and transport: - This device is intended for mobile use. - Page 4 - This device is not intended for permanent (24/7) use. Regular breaks in operation will ensure the expected lifespan of this device remains unchanged. Disconnect the device when not in use. - If you do not plan to use the unit for an extended period of time, disconnect it and store it in a dust-free environment.
- Page 5 The DI-P is equipped with a 6.35 mm TS jack input with 50 kilohm impedance, suitable for devices such as electric guitars, (mono) keyboard signals, etc.
- Page 6 Devine recommends to start with -40 dB attenuation. This way, you will start with the least powerful volume level possible and you can see on your mixing console if the signal is strong enough. If not, you can switch the attenuation to -20 dB and see if the signal is strong enough, but not overpowering the inputs on your processing equipment.
-
Page 7: Technical Specifications
Technical specifications - passive DI box - sturdy metal housing - low-profile design - no batteries or power source required - transforms unbalanced, high-impedance audio signals to microphone level balanced audio signals - 6.35 mm TS jack unbalanced input - 6.35 mm TS jack unbalanced link output (parallel) - balanced 3-pin XLR output - input impedance: 50 kilohms - output impedance: 600 ohms...
