12−05 Litho in U.S.A. (dmm)

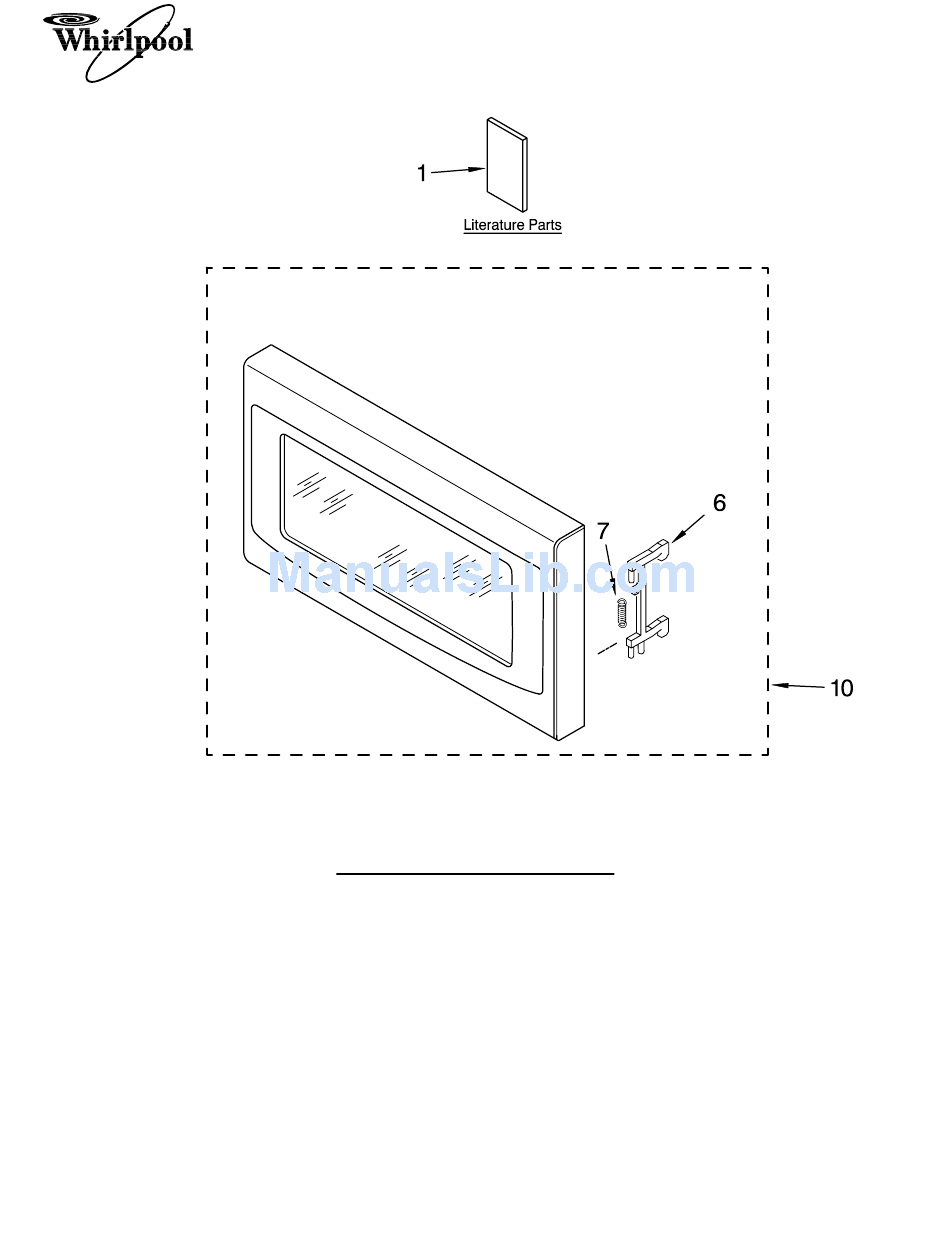

DOOR PARTS
For Models: MT4078SPQ2, MT4078SPB2
(DESIGNER WHITE) (BLACK)
Illus.
Part
No.
No.
DESCRIPTION
1
LITERATURE PARTS
8205984 Use & Care Guide
8204862 Cook Guide Label
8204863 Tech Sheet
8204864 Instructions,
Installation
6
8205470 Latch
7
8171918 Spring, Latch
10
Complete Door
8205466 White Model
8205467 Black Model
1
Compact
MICROWAVE OVEN
0.7 CUBIC FOOT
Part No. 8206407
Advertisement
Related Manuals for Whirlpool MT4078SPB2
Summary of Contents for Whirlpool MT4078SPB2
-
Page 1: Door Parts
12−05 Litho in U.S.A. (dmm) DOOR PARTS For Models: MT4078SPQ2, MT4078SPB2 (DESIGNER WHITE) (BLACK) Illus. Part DESCRIPTION LITERATURE PARTS 8205984 Use & Care Guide 8204862 Cook Guide Label 8204863 Tech Sheet 8204864 Instructions, Installation 8205470 Latch 8171918 Spring, Latch Complete Door... -
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: MT4078SPQ2, MT4078SPB2 (DESIGNER WHITE) (BLACK) Illus. Part DESCRIPTION Key Membrane 8205468 White Model 8205469 Black Model Control Panel 8205471 White Model 8205472 Black Model 8205473 Microcomputer 4358883 Screw 8206407... -
Page 3: Oven Cavity Parts
8206407 OVEN CAVITY PARTS For Models: MT4078SPQ2, MT4078SPB2 (DESIGNER WHITE) (BLACK) Illus. Part DESCRIPTION 8205492 Canopy 8205476 UTC Bracket Outer Case 8205474 White Model 8205475 Black Model Mounting Cap 4158748 White Model (4) 4358857 Black Model (4) 8205098 Tray, Glass... -
Page 4: Latch Board Parts
LATCH BOARD PARTS For Models: MT4078SPQ2, MT4078SPB2 (DESIGNER WHITE) (BLACK) Illus. Part DESCRIPTION Latch Board Assembly (Non−Serviceable) 8205477 Latch Board 4358381 Screw 8184285 Switch Micro Primary 8184286 Switch, Micro Monitor 8205478 Lever 4358271 Screw 4358271 Screw 8206407... - Page 5 8184292 Blade, Fan 8205482 Guide, Suction 8205488 Motor, Fan 8184377 H.V. Capacitor 8205479 H.V.C Bracket 8206272 Leadwire Assembly 8206407 OVEN INTERIOR PARTS For Models: MT4078SPQ2, MT4078SPB2 (DESIGNER WHITE) (BLACK) Illus. Part DESCRIPTION 8205489 H.V. Diode Cable 8206271 Power Cord 8185274 Thermostat...
-
Page 6: Base Plate Parts
BASE PLATE PARTS For Models: MT4078SPQ2, MT4078SPB2 (DESIGNER WHITE) (BLACK) Illus. Part DESCRIPTION 8205491 Base Plate Assy 8184385 Cap 8205485 Transformer 4358489 Screw 4358192 Screw ACCESSORY PARTS 4359914 UTC Kit Trim Kit MK1074XHQ White MK1074XHB Black 8206407...
