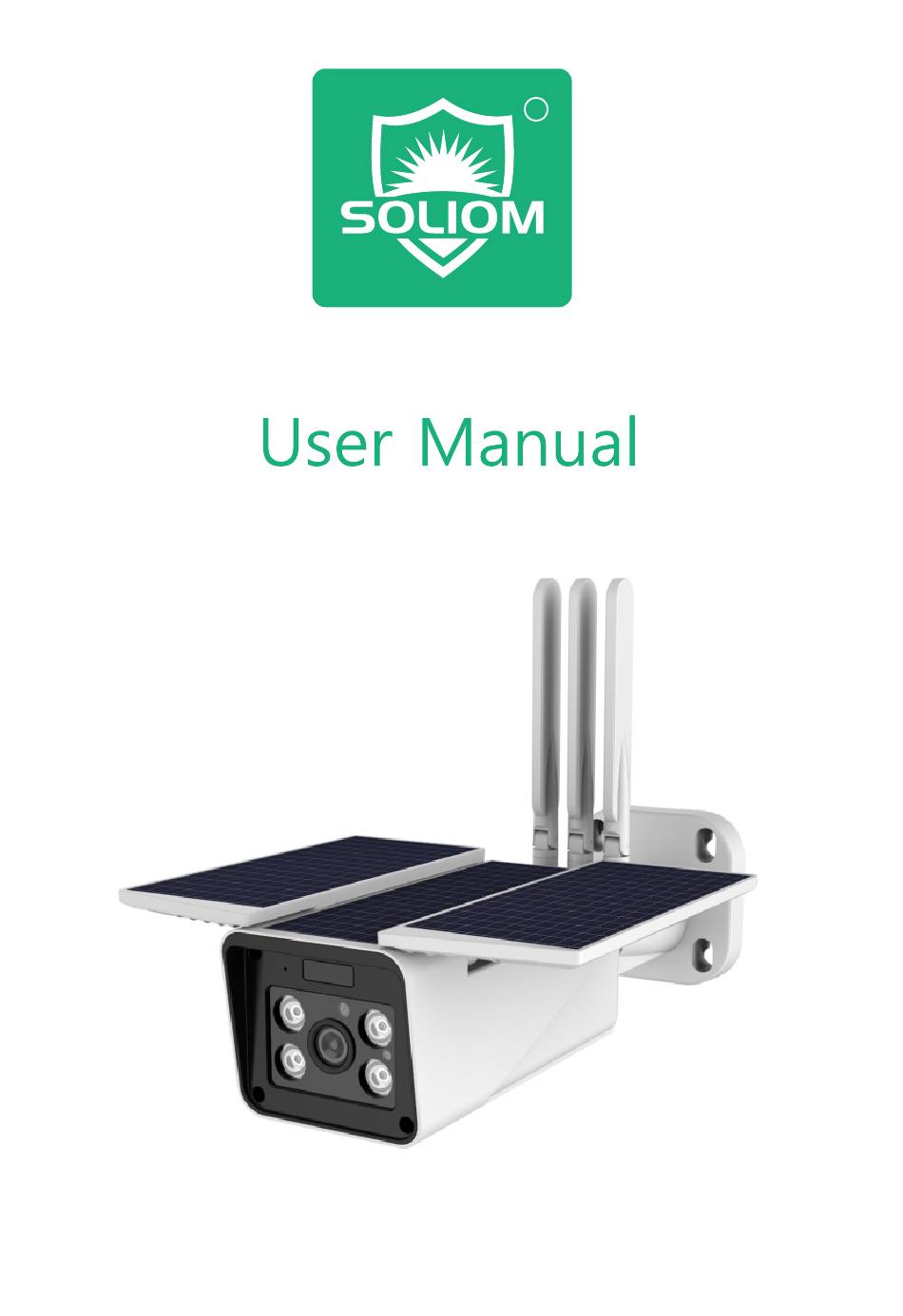

- Page 1 Outdoor Wireless Solar Camera Model: S90...
- Page 2 5-12 13-16 17-24 Par t 5: How to save and delete videos.....25 Par t 6: FQAs.............26...
- Page 3 Warm tips before you go: 1. Soliom S90 can only be set up with 2.4g Wi-Fi network. (It's ok to use Cell phone 4G data to live viewing it after the camera was set up with 2.4g Wi-Fi network firstly.) 2.
- Page 4 Bracket Solar Panel USB por t Micro-SD USB Por t Reset Power Reset Power Charging cable to connect external solar panel...
- Page 5 Before Installation Charging Please charge the camera about 10-12 hours by plugging it into a power source using the provided USB cable. After connecting the camera with App, the App will indicate the batter y status. (There's no indicator to show charging status from the camera) Micro-SD USB Por t...
- Page 6 Pa c k a g e C o n t e n t Camera 1 x Bracket 4 x Expansion Screws 1 x Allen key 1 x Allen key 1 x USB Cable Outdoor Wireless Solar Camera Model: S90 2 x Luminescent 1 x User Manual Warning Sticker...
- Page 7 SOLIOM ” in your Google Play store or App store to download the soliom App. 2. Turn on the camera Press the power button to turn on the camera, after 3 seconds, LED flashes blue. Then you will hear the following voice “...
- Page 8 In-App Setup 3. Pairing the camera with the App wifi Please connect your phone to the 2.4Ghz firstly before you pair the camera, make sure your router password in mind before you star t the pairing process. Click "Add a device" and then choose "Setup device", click "Yes", when you hear the following voice “...
- Page 9 In-App Setup 3) Enter into the “search device” page, make sure to turn up you phone’s volume to the Maximum, you will hear the following voice : “Pairing Information Received”. What should you do if you can not add the camera to the APP successfully? 1.
- Page 10 In-App Setup 5) Congratulations! Now you can live view the camera on your phone anytime and anywhere.
- Page 11 In-App Setup If you're unable to pair the camera,Please check below suggestions: 1. Please reset the camera using the pin to reset the camera to default after you fully charged the camera. 2. Please turn up your phone volume to the maximum,since the camera pair through sound wave.
- Page 12 In-App Setup 4. How to Share Your Camera And Password with More Users Share QR code After you finish the connection with the App, click choose “Share QR code” . Other users need to download the App first, and then scan the below QR code.
- Page 13 In-App Setup Push Mode Silence: You could choose to mute all incoming notification or call in, all motion triggered videos will be saved properly to cloud storage or Micro sd card. Notification: Camera will receive notification and banner. Call in: Camera will receive call in sound and banners the same time with a “...
- Page 14 In-App Setup Micro sd card Video playback Please find the orange color for the video event and use two fingers to zoom out the timeline and then put the line to the head of the orange color and wait for the playback Zoom out to playback...
- Page 15 Physical Installation Check your camera signal strength If not satisfied with video smoothness, Check in App and signal strength in App is not strong, we would suggest adding wifi extender between the Router and the camera. Camera WiFi extender Router Recommended height to install the camera We suggest installing the camera about 8ft.
- Page 16 Physical Installation Adjust the bracket on the wall and then mark 4 holes for mounting. Fix the bracket to the wall by expansion screws. How to take apar t the bracket?
- Page 17 Technical Specifications Image Quality Resolution 1080P Specifications Lens angle FOV 160° Lens H.264 Video format Frames per Video 15fps second Specifications SD card 8GB-Max 64GB support Built-in speaker Output Audio Built-in microphone Intput Communications WiFi 2.4GHz Battery capacity 10000mAh Standby time Max 8-12 months Battery Power...
- Page 18 Technical Specifications System Android 2.3 above/ iOS 7.0 above Suppport PIR angle FOV 120° PIR range 16ft Up to 32ft Range Night Vision Continuously daytime Max 36 hours recording time Working time for Continuously night vision fully charged Max 14 hours recording time Waterproof IP grade...
- Page 19 Detailed App Instructions 1.click ,you could live viewing videos. Impor tant: Please keep the Cloud Storage turned on to ensure the camera's time kept synchronized with your phone's time.
- Page 20 Wifi signal strength and then re install it to the camera body.Or Tips: Please make sure your camera contact Soliom support team for a replacement has a full bar of wifi strength to at care@soliom.net All friendly customer ensure a smooth live view speed.
- Page 21 Detailed App Instructions Screenshot: Click to screen capture and pictures will be saved to your phone's album. Manual Recording: Click to manually record and the videos will be saved to your phone's Album Setting: Click to inter into device settings. ( Check page 19 for more details) Voice: Click to mute the sounds from...
- Page 22 Detailed App Instructions SD Card Setting 1) Please turn on the cloud storage so that you can sync the camera time with your phone. 2) Please format the micro sd card before you installed it.The camera doesn't support plug and play.So please make sure to power off the camera and then install your card.
- Page 23 Detailed App Instructions Environment You can choose to set it as Normal, back light compensation, night IR, High light compensation or Dynamic according to your actual light environment of installation place. Album Switch Cruise Voice Settings PIR Detection You can set the PIR sensitivity as Disabled,Low,Medium and High.
- Page 24 Detailed App Instructions Album Switch Cruise Voice Settings Dormancy Time 1) This is the time you could set for the video length recorded to micro sd card. 2) Not dormant: If you choose this option,you will not allow the camera enter into standby mode,the camera will keep recording all the time until battery drains out.
- Page 25 Detailed App Instructions LED Lamp When you choose Enable,the Blue LED will light up to indicate when you operate the camera as it should be.When you choose Disabled,the Blue LED will not light up to indicate the operations or trigger motions.It is recommended to set it as the default Album Switch Cruise...
- Page 26 Detailed App Instructions Device Name and Password: You can set a desired name for your camera and set the password to protect your camera's privacy. Album Switch Cruise Voice Settings Click “Check for update” to update the app to the newest version.
- Page 27 How to save and delete videos 1. Videos can be saved in Cloud Storage: (1). The videos of PIR activity You could save 20 videos of PIR activities per day in cloud storage, which can be saved for 7 days and then will be over written. 2.
- Page 28 F A Q s Q1: Why do I fail to connect the camera to the App by sound wave? A: 1. Please reset the camera by the pin included. 2. Please make sure the camera is powered on and there will be voice prompts that indicates it. 3.
- Page 31 Customer Care Email: care@soliom.net www.soliom.net www.facebook.com/soliomcam...
