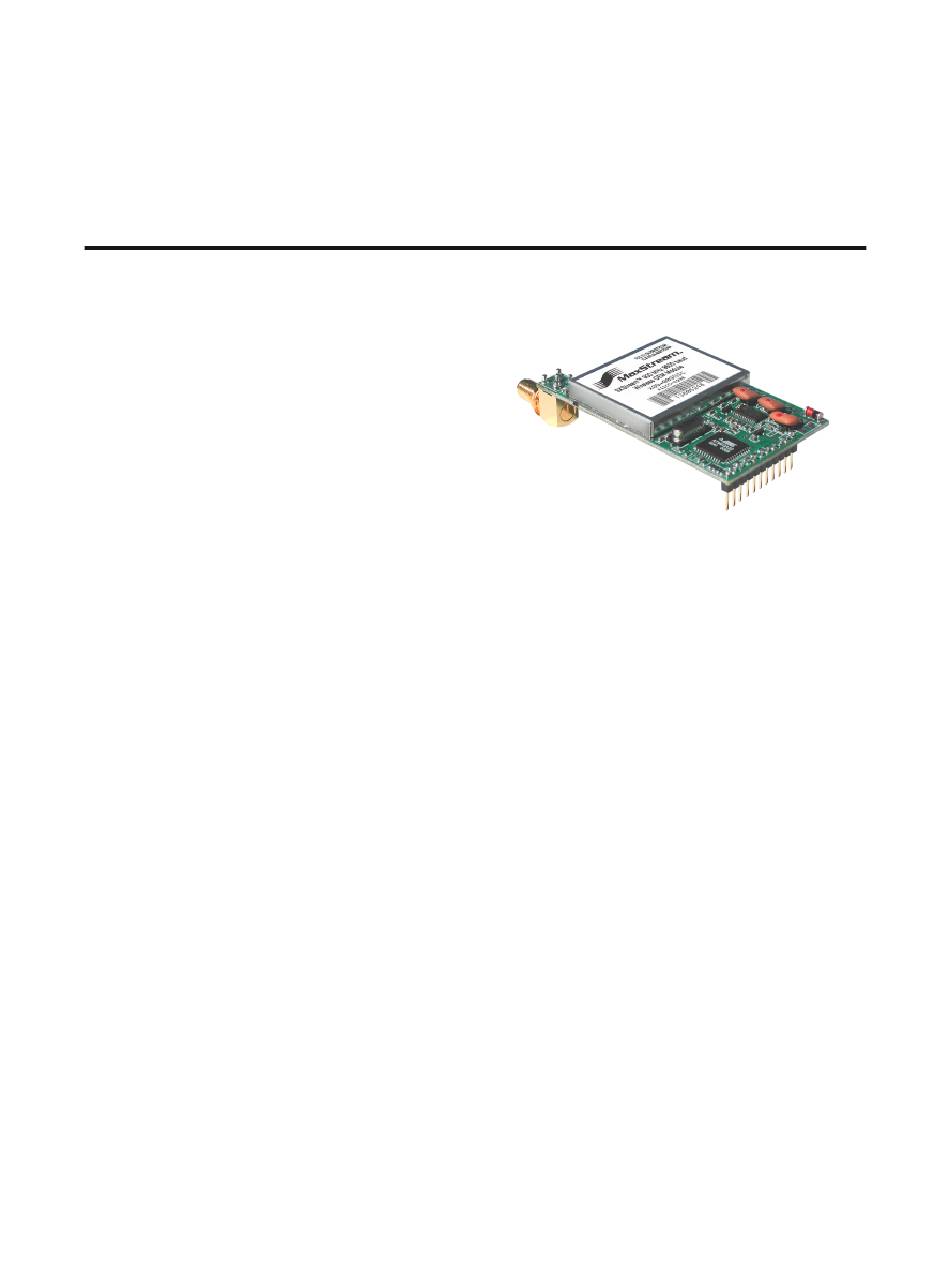

- Page 1 Quick Start Guide XStream™ OEM RF Module Development Kit Introduction Range Test Setup Range Test Execution Tips and Suggestions Contact MaxStream Create a Long Range Wireless Link in Minutes! www.maxstream.net © 2005 MaxStream, Inc. All rights reserved. MD0007...
- Page 2 Install X-CTU Software Double-click "setup_X-CTU.exe" file and follow prompts of the installation screens. This file is located in the "software' folder of the MaxStream CD and under the 'Downloads' link of the following web page: www.maxstream.net/helpdesk/ The X-CTU Software interface is divided into the four following tabs: •...
- Page 3 • Assign which PC Serial Com Port to use when communicating with XStream module assemblies [step 2 of "Range Test"] • Measure XStream OEM RF Module's range [steps 1-7 of "Range Test"] Range Test 1. Launch the X-CTU Software: (Start --> Programs --> MaxStream --> X-CTU) Under the "PC Settings"...
- Page 4 Tips and Suggestions Interface Board DIP Switch Configurations The MaxStream Interface Board DIP Switch allows users an exterior method for configuring "Serial Interface" and "Termination" parameter settings. Figure 5. DIP Switch Se�ings (Se�ings applied only during power-up sequence) 1 2 3 4 5 6...
