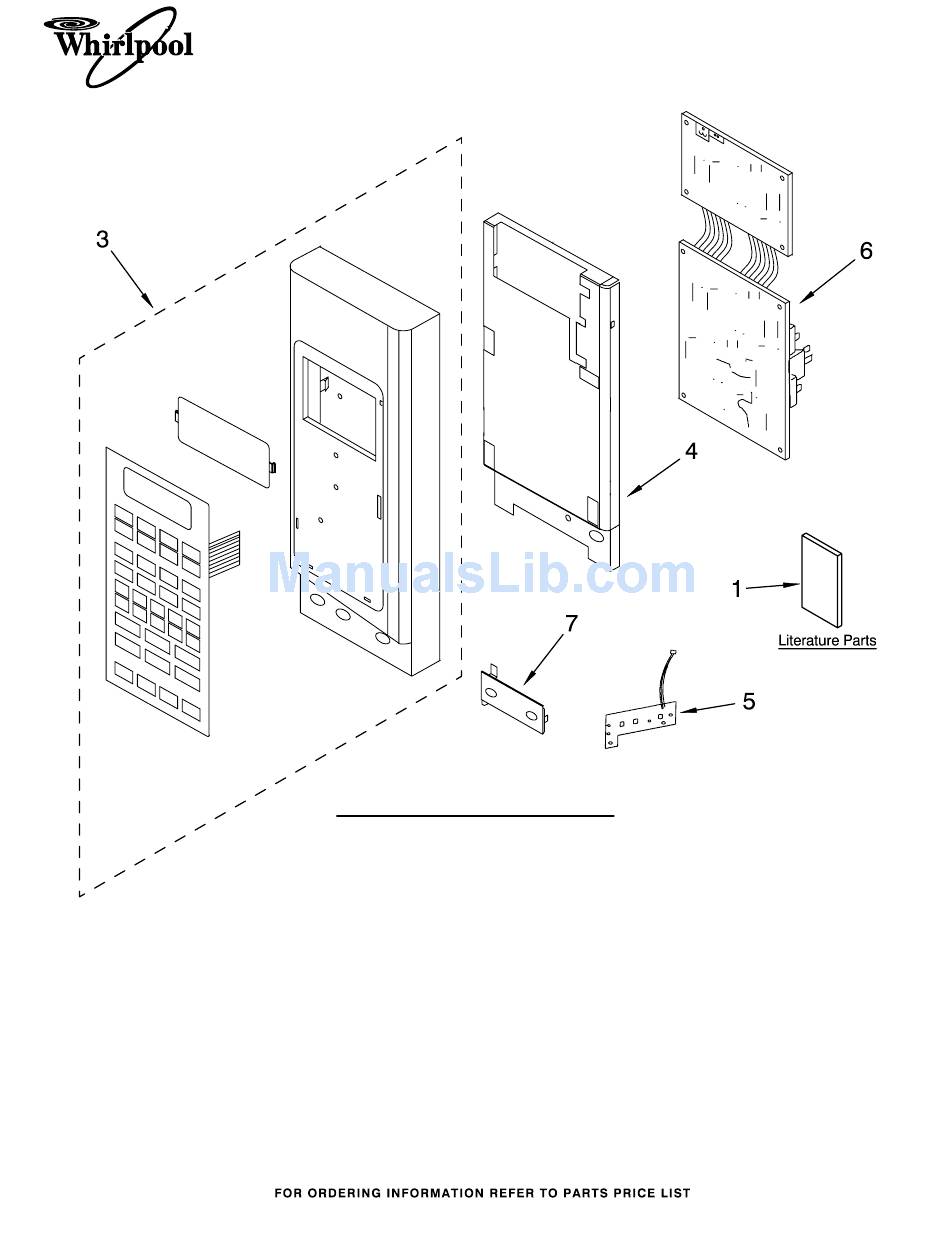

CONTROL PANEL PARTS
(WHITE)
(BLACK)
Illus.
Part
No.
No.
DESCRIPTION
1
Literature
8204921 U & C Guide
8205607 Tech Sheet
8205621 Tech Sheet,
Insert
8205142 Install, Instruct
8204932 Cook Guide Label
3
Panel Asy, Control
Includes Lens and
Membrane Switch
8205386 White
8205388 Black
8205389 Biscuit
8205387 Stainless
4
8184920 Bracket, Control
5
8205390 Button, PCB Assy
6
8205391 Microcomputer
7
8184110 Pushbutton
(BISCUIT) (STAINLESS)
1
Microwave Oven
1.8 Cu. Ft.
Part No. 8206252
